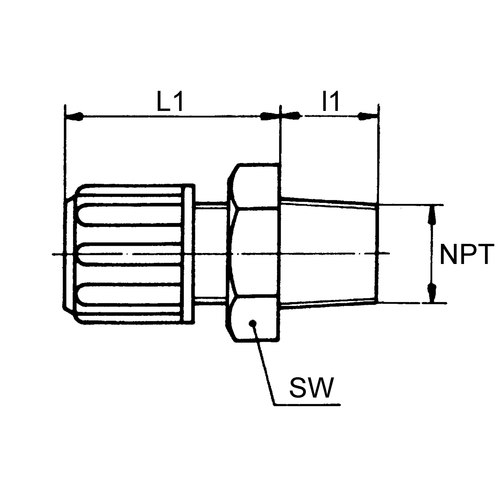

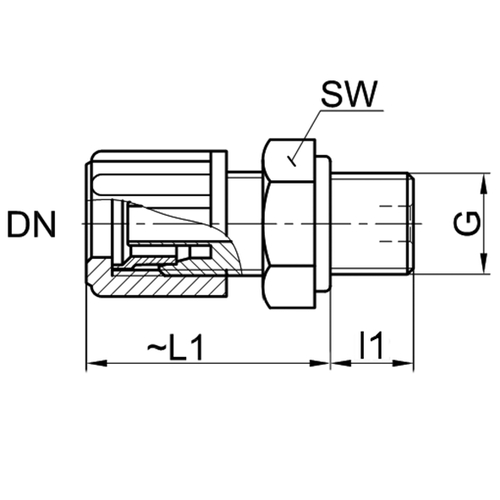

Gerader-Schlauchverbinder mit Außengewinde aus PP oder PVDF - leitfähig und antistatisch
| Artikel |
Schlauch Innen-Ø mm
|
Schlauch Außen-Ø mm
|
Außengewinde |
l1 mm
|
L1 mm
|
SW mm
|
Werkstoff |
Einheit Stück
|
Preis Euro* |
Kaufen |
|---|---|---|---|---|---|---|---|---|---|---|
| 341203 | 4 | 6 | G 1/8" | 8 | 23,5 | 14 | PP | 10 | 88,00 | |
| 341204 | 4 | 6 | G 1/4" | 12 | 25 | 17 | PP | 10 | 111,00 | |
| 341205 | 4 | 6 | G 3/8" | 12 | 26,5 | 22 | PP | 5 | 114,00 | |
| 341206 | 4 | 6 | G 1/2" | 14 | 29 | 27 | PP | 5 | 125,00 | |
| 341207 | 6 | 8 | G 1/8" | 8 | 28,5 | 17 | PP | 5 | 125,00 | |
| 341208 | 6 | 8 | G 1/4" | 12 | 29 | 17 | PP | 5 | 125,00 | |
| 341209 | 6 | 8 | G 3/8" | 12 | 30,5 | 22 | PP | 5 | 125,00 | |
| 341210 | 6 | 8 | G 1/2" | 14 | 35 | 27 | PP | 5 | 134,00 | |
| 341211 | 6 | 10 | G 1/8" | 8 | 32,5 | 19 | PP | 5 | 134,00 | |
| 341212 | 6 | 10 | G 1/4" | 12 | 33 | 19 | PP | 5 | 134,00 | |
| 341213 | 6 | 10 | G 3/8" | 12 | 33,5 | 22 | PP | 5 | 134,00 | |
| 341214 | 6 | 10 | G 1/2" | 14 | 36 | 27 | PP | 5 | 142,00 | |
| 341215 | 8 | 10 | G 1/8" | 8 | 29 | 32,5 | PP | 5 | 142,00 | |
| 341216 | 8 | 10 | G 1/4" | 12 | 33 | 19 | PP | 5 | 142,00 | |
| 341217 | 8 | 10 | G 3/8" | 12 | 33,5 | 22 | PP | 5 | 142,00 | |
| 341218 | 8 | 10 | G 1/2" | 14 | 36 | 27 | PP | 5 | 148,00 | |
| 341219 | 8 | 12 | G 1/8" | 8 | 36,5 | 22 | PP | 5 | 154,00 | |
| 341220 | 8 | 12 | G 1/4" | 12 | 37 | 22 | PP | 5 | 168,00 | |
| 341221 | 8 | 12 | G 3/8" | 12 | 37,5 | 22 | PP | 5 | 168,00 | |
| 341222 | 8 | 12 | G 1/2" | 14 | 40 | 27 | PP | 5 | 191,00 | |
| 341223 | 10 | 12 | G 1/8" | 8 | 36,5 | 22 | PP | 5 | 154,00 | |
| 341224 | 10 | 12 | G 1/4" | 12 | 37 | 22 | PP | 5 | 168,00 | |
| 341225 | 10 | 12 | G 3/8" | 12 | 37,5 | 22 | PP | 5 | 168,00 | |
| 341226 | 10 | 12 | G 1/2" | 14 | 40 | 27 | PP | 5 | 191,00 | |
| 341227 | 10 | 14 | G 1/8" | 8 | 42,5 | 24 | PP | 5 | 206,00 | |
| 341228 | 10 | 14 | G 1/4" | 12 | 43 | 24 | PP | 5 | 226,00 | |
| 341229 | 10 | 14 | G 3/8" | 12 | 43,5 | 24 | PP | 5 | 232,00 | |
| 341230 | 10 | 14 | G 1/2" | 14 | 45 | 27 | PP | 5 | 242,00 | |
| 341231 | 12 | 14 | G 1/8" | 8 | 42,5 | 24 | PP | 5 | 203,00 | |
| 341232 | 12 | 14 | G 1/4" | 12 | 43 | 24 | PP | 5 | 209,00 | |
| 341233 | 12 | 14 | G 3/8" | 12 | 43,5 | 24 | PP | 5 | 232,00 | |
| 341234 | 12 | 14 | G 1/2" | 14 | 45 | 27 | PP | 5 | 239,00 | |
| 341236 | 12 | 16 | G 1/4" | 12 | 46 | 27 | PP | 5 | 294,00 | |
| 341237 | 12 | 16 | G 3/8" | 12 | 46 | 27 | PP | 5 | 305,00 | |
| 341238 | 12 | 16 | G 1/2" | 14 | 47 | 27 | PP | 5 | 320,00 | |
| 341241 | 4 | 6 | NPT 1/8" | 8 | 23,5 | 11 | PP | 10 | 85,00 | |
| 341242 | 4 | 6 | NPT 1/4" | 12 | 25 | 17 | PP | 10 | 111,00 | |
| 341243 | 4 | 6 | NPT 3/8" | 12 | 26,5 | 22 | PP | 5 | 105,00 | |
| 341244 | 4 | 6 | NPT 1/2" | 14 | 29 | 27 | PP | 5 | 114,00 | |
| 341245 | 6 | 8 | NPT 1/8" | 8 | 28,5 | 17 | PP | 5 | 122,00 | |
| 341246 | 6 | 8 | NPT 1/4" | 12 | 29 | 17 | PP | 5 | 122,00 | |
| 341247 | 6 | 8 | NPT 3/8" | 12 | 30,5 | 22 | PP | 5 | 122,00 | |
| 341248 | 6 | 8 | NPT 1/2" | 14 | 35 | 27 | PP | 5 | 125,00 | |
| 341249 | 6 | 10 | NPT 1/8" | 8 | 32,5 | 19 | PP | 5 | 128,00 | |
| 341250 | 6 | 10 | NPT 1/4" | 12 | 33 | 19 | PP | 5 | 128,00 | |
| 341251 | 6 | 10 | NPT 3/8" | 12 | 33,5 | 22 | PP | 5 | 131,00 | |
| 341252 | 6 | 10 | NPT 1/2" | 14 | 36 | 27 | PP | 5 | 137,00 | |
| 341253 | 8 | 10 | NPT 1/8" | 8 | 29 | 32,5 | PP | 5 | 111,00 | |
| 341254 | 8 | 10 | NPT 1/4" | 12 | 33 | 19 | PP | 5 | 119,00 | |
| 341255 | 8 | 10 | NPT 3/8" | 12 | 33,5 | 22 | PP | 5 | 122,00 | |
| 341256 | 8 | 10 | NPT 1/2" | 14 | 36 | 27 | PP | 5 | 128,00 | |
| 341257 | 8 | 12 | NPT 1/8" | 8 | 36,5 | 22 | PP | 5 | 137,00 | |
| 341258 | 8 | 12 | NPT 1/4" | 12 | 37 | 22 | PP | 5 | 145,00 | |
| 341259 | 8 | 12 | NPT 3/8" | 12 | 37,5 | 22 | PP | 5 | 160,00 | |
| 341260 | 8 | 12 | NPT 1/2" | 14 | 40 | 27 | PP | 5 | 160,00 | |
| 341261 | 10 | 12 | NPT 1/8" | 8 | 36,5 | 22 | PP | 5 | 137,00 | |
| 341262 | 10 | 12 | NPT 1/4" | 12 | 37 | 22 | PP | 5 | 145,00 | |
| 341263 | 10 | 12 | NPT 3/8" | 12 | 37,5 | 22 | PP | 5 | 160,00 | |
| 341264 | 10 | 12 | NPT 1/2" | 14 | 40 | 27 | PP | 5 | 160,00 | |
| 341265 | 10 | 14 | NPT 1/8" | 8 | 42,5 | 24 | PP | 5 | 183,00 | |
| 341266 | 10 | 14 | NPT 1/4" | 12 | 43 | 24 | PP | 5 | 183,00 | |
| 341267 | 10 | 14 | NPT 3/8" | 12 | 43,5 | 24 | PP | 5 | 191,00 | |
| 341268 | 10 | 14 | NPT 1/2" | 14 | 45 | 27 | PP | 5 | 203,00 | |
| 341269 | 12 | 14 | NPT 1/8" | 8 | 42,5 | 24 | PP | 5 | 203,00 | |
| 341270 | 12 | 14 | NPT 1/4" | 12 | 43 | 24 | PP | 5 | 209,00 | |
| 341271 | 12 | 14 | NPT 3/8" | 12 | 43,5 | 24 | PP | 5 | 223,00 | |
| 341272 | 12 | 14 | NPT 1/2" | 14 | 45 | 27 | PP | 5 | 226,00 | |
| 341274 | 12 | 16 | NPT 1/4" | 12 | 46 | 27 | PP | 5 | 262,00 | |
| 341275 | 12 | 16 | NPT 3/8" | 12 | 46 | 27 | PP | 5 | 271,00 | |
| 341276 | 12 | 16 | NPT 1/2" | 14 | 47 | 27 | PP | 5 | 288,00 | |
| 341298 | 4 | 6 | G 1/8" | 8 | 23,5 | 11 | PVDF | 10 | 157,00 | |
| 341299 | 4 | 6 | G 1/4" | 12 | 25 | 17 | PVDF | 5 | 128,00 | |
| 341300 | 4 | 6 | G 3/8" | 12 | 26,5 | 22 | PVDF | 5 | 174,00 | |
| 341301 | 4 | 6 | G 1/2" | 14 | 29 | 27 | PVDF | 5 | 180,00 | |
| 341302 | 6 | 8 | G 1/8" | 8 | 28,5 | 17 | PVDF | 5 | 174,00 | |
| 341303 | 6 | 8 | G 1/4" | 12 | 29 | 17 | PVDF | 5 | 186,00 | |
| 341304 | 6 | 8 | G 3/8" | 12 | 30,5 | 22 | PVDF | 5 | 209,00 | |
| 341305 | 6 | 8 | G 1/2" | 14 | 35 | 27 | PVDF | 5 | 236,00 | |
| 341306 | 6 | 10 | G 1/8" | 8 | 32,5 | 19 | PVDF | 5 | 191,00 | |
| 341307 | 6 | 10 | G 1/4" | 12 | 33 | 19 | PVDF | 5 | 203,00 | |
| 341308 | 6 | 10 | G 3/8" | 12 | 33,5 | 22 | PVDF | 5 | 226,00 | |
| 341309 | 6 | 10 | G 1/2" | 14 | 36 | 27 | PVDF | 5 | 197,00 | |
| 341310 | 8 | 10 | G 1/8" | 8 | 29 | 32,5 | PVDF | 5 | 191,00 | |
| 341311 | 8 | 10 | G 1/4" | 12 | 33 | 19 | PVDF | 5 | 203,00 | |
| 341312 | 8 | 10 | G 3/8" | 12 | 33,5 | 22 | PVDF | 5 | 226,00 | |
| 341313 | 8 | 10 | G 1/2" | 14 | 36 | 27 | PVDF | 5 | 197,00 | |
| 341314 | 8 | 12 | G 1/8" | 8 | 36,5 | 22 | PVDF | 5 | 172,00 | |
| 341315 | 8 | 12 | G 1/4" | 12 | 37 | 22 | PVDF | 5 | 186,00 | |
| 341316 | 8 | 12 | G 3/8" | 12 | 37,5 | 22 | PVDF | 5 | 197,00 | |
| 341317 | 8 | 12 | G 1/2" | 14 | 40 | 27 | PVDF | 5 | 246,00 | |
| 341318 | 10 | 12 | G 1/8" | 8 | 36,5 | 22 | PVDF | 5 | 177,00 | |
| 341319 | 10 | 12 | G 1/4" | 12 | 37 | 22 | PVDF | 5 | 181,00 | |
| 341320 | 10 | 12 | G 3/8" | 12 | 37 | 22 | PVDF | 5 | 192,00 | |
| 341321 | 10 | 12 | G 1/2" | 14 | 40 | 27 | PVDF | 5 | 201,00 | |
| 341322 | 10 | 14 | G 1/8" | 8 | 42,5 | 24 | PVDF | 5 | 221,00 | |
| 341323 | 10 | 14 | G 1/4" | 12 | 43 | 24 | PVDF | 5 | 230,00 | |
| 341324 | 10 | 14 | G 3/8" | 12 | 43,5 | 24 | PVDF | 5 | 246,00 | |
| 341325 | 10 | 14 | G 1/2" | 14 | 45 | 27 | PVDF | 5 | 299,00 | |
| 341326 | 12 | 14 | G 1/8" | 8 | 42,5 | 24 | PVDF | 5 | 221,00 | |
| 341327 | 12 | 14 | G 1/4" | 12 | 43 | 24 | PVDF | 5 | 230,00 | |
| 341328 | 12 | 14 | G 3/8" | 12 | 43,5 | 24 | PVDF | 5 | 246,00 | |
| 341329 | 12 | 14 | G 1/2" | 14 | 45 | 27 | PVDF | 5 | 299,00 | |
| 341330 | 12 | 16 | G 1/4" | 12 | 46 | 27 | PVDF | 5 | 299,00 | |
| 341331 | 12 | 16 | G 3/8" | 12 | 46 | 27 | PVDF | 5 | 305,00 | |
| 341332 | 12 | 16 | G 1/2" | 14 | 47 | 27 | PVDF | 5 | 372,00 | |
| 341333 | 4 | 6 | NPT 1/8" | 8 | 23,5 | 11 | PVDF | 10 | 157,00 | |
| 341334 | 4 | 6 | NPT 1/4" | 12 | 25 | 17 | PVDF | 5 | 128,00 | |
| 341335 | 4 | 6 | NPT 3/8" | 12 | 26,5 | 22 | PVDF | 5 | 174,00 | |
| 341336 | 4 | 6 | NPT 1/2" | 14 | 29 | 27 | PVDF | 5 | 180,00 | |
| 341337 | 6 | 8 | NPT 1/8" | 8 | 28,5 | 17 | PVDF | 5 | 174,00 | |
| 341338 | 6 | 8 | NPT 1/4" | 12 | 29 | 17 | PVDF | 5 | 186,00 | |
| 341339 | 6 | 8 | NPT 3/8" | 12 | 30,5 | 22 | PVDF | 5 | 209,00 | |
| 341340 | 6 | 8 | NPT 1/2" | 14 | 35 | 27 | PVDF | 5 | 236,00 | |
| 341341 | 6 | 10 | NPT 1/8" | 8 | 32,5 | 19 | PVDF | 5 | 191,00 | |
| 341342 | 6 | 10 | NPT 1/4" | 12 | 33 | 19 | PVDF | 5 | 203,00 | |
| 341343 | 6 | 10 | NPT 3/8" | 12 | 33,5 | 22 | PVDF | 5 | 226,00 | |
| 341344 | 6 | 10 | NPT 1/2" | 14 | 36 | 27 | PVDF | 3 | 197,00 | |
| 341345 | 8 | 10 | NPT 1/8" | 8 | 29 | 32,5 | PVDF | 5 | 191,00 | |
| 341346 | 8 | 10 | NPT 1/4" | 12 | 33 | 19 | PVDF | 5 | 203,00 | |
| 341347 | 8 | 10 | NPT 3/8" | 12 | 33,5 | 22 | PVDF | 5 | 226,00 | |
| 341348 | 8 | 10 | NPT 1/2" | 14 | 36 | 27 | PVDF | 3 | 197,00 | |
| 341349 | 8 | 12 | NPT 1/8" | 8 | 36,5 | 22 | PVDF | 3 | 172,00 | |
| 341350 | 8 | 12 | NPT 1/4" | 12 | 37 | 22 | PVDF | 3 | 186,00 | |
| 341351 | 8 | 12 | NPT 3/8" | 12 | 37,5 | 22 | PVDF | 3 | 197,00 | |
| 341352 | 8 | 12 | NPT 1/2" | 14 | 40 | 27 | PVDF | 3 | 246,00 | |
| 341353 | 10 | 12 | NPT 1/8" | 8 | 36,5 | 22 | PVDF | 3 | 177,00 | |
| 341354 | 10 | 12 | NPT 1/4" | 12 | 37 | 22 | PVDF | 3 | 181,00 | |
| 341355 | 10 | 12 | NPT 3/8" | 12 | 37 | 22 | PVDF | 3 | 192,00 | |
| 341356 | 10 | 12 | NPT 1/2" | 14 | 40 | 27 | PVDF | 3 | 201,00 | |
| 341357 | 10 | 14 | NPT 1/8" | 8 | 42,5 | 24 | PVDF | 3 | 221,00 | |
| 341358 | 10 | 14 | NPT 1/4" | 12 | 43 | 24 | PVDF | 3 | 230,00 | |
| 341359 | 10 | 14 | NPT 3/8" | 12 | 43,5 | 24 | PVDF | 3 | 246,00 | |
| 341360 | 10 | 14 | NPT 1/2" | 14 | 45 | 27 | PVDF | 3 | 299,00 | |
| 341361 | 12 | 14 | NPT 1/8" | 8 | 42,5 | 24 | PVDF | 3 | 221,00 | |
| 341362 | 12 | 14 | NPT 1/4" | 12 | 43 | 24 | PVDF | 3 | 230,00 | |
| 341363 | 12 | 14 | NPT 3/8" | 12 | 43,5 | 24 | PVDF | 3 | 246,00 | |
| 341364 | 12 | 14 | NPT 1/2" | 14 | 45 | 27 | PVDF | 3 | 299,00 | |
| 341365 | 12 | 16 | NPT 1/4" | 12 | 46 | 27 | PVDF | 3 | 299,00 | |
| 341366 | 12 | 16 | NPT 3/8" | 12 | 46 | 27 | PVDF | 3 | 305,00 | |
| 341180 | 12 | 16 | NPT 1/2" | 14 | 47 | 27 | PVDF | 3 | 372,00 | |
