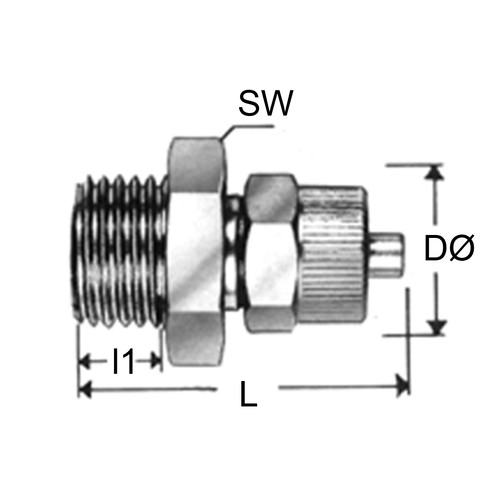

Gerader-Verbinder mit Außengewinde aus Messing
| Artikel |
Schlauch Innen-Ø mm
|
Schlauch Außen-Ø mm
|
Außengewinde |
D mm
|
l1 mm
|
L mm
|
Einheit Stück
|
Preis Euro* |
Kaufen |
|---|---|---|---|---|---|---|---|---|---|
| 50171 | 3 | 5 | R 1/8" | 8,5 | 6 | 22 | 10 | 38,00 | |
| 50172 | 4 | 6 | R 1/8" | 11 | 6 | 25 | 10 | 38,00 | |
| 50173 | 6 | 8 | R 1/8" | 15 | 6 | 27 | 10 | 48,00 | |
| 50174 | 6 | 10 | R 1/8" | 15 | 6 | 27 | 10 | 48,00 | |
| 50175 | 8 | 10 | R 1/8" | 17 | 6 | 27 | 10 | 48,00 | |
| 50176 | 7 | 12 | R 1/8" | 17 | 6 | 27 | 10 | 48,00 | |
| 50177 | 4 | 6 | R 1/4" | 11 | 8 | 28 | 10 | 48,00 | |
| 50178 | 6 | 8 | R 1/4" | 15 | 8 | 30 | 10 | 48,00 | |
| 50179 | 6 | 10 | R 1/4" | 15 | 8 | 30 | 10 | 48,00 | |
| 50180 | 8 | 10 | R 1/4" | 17 | 8 | 30 | 10 | 65,00 | |
| 50181 | 8 | 12 | R 1/4" | 17 | 8 | 30 | 10 | 65,00 | |
| 50182 | 4 | 6 | R 3/8" | 11 | 9 | 29 | 10 | 75,00 | |
| 50183 | 6 | 8 | R 3/8" | 15 | 9 | 31 | 10 | 75,00 | |
| 50184 | 6 | 10 | R 3/8" | 15 | 9 | 31 | 10 | 75,00 | |
| 50185 | 8 | 10 | R 3/8" | 17 | 9 | 31 | 10 | 84,00 | |
| 50186 | 8 | 12 | R 3/8" | 17 | 9 | 31 | 10 | 84,00 | |
| 50187 | 4 | 6 | R 1/2" | 11 | 10 | 33 | 5 | 48,00 | |
| 50188 | 6 | 8 | R 1/2" | 15 | 10 | 35 | 5 | 56,00 | |
| 50189 | 6 | 10 | R 1/2" | 15 | 10 | 35 | 5 | 56,00 | |
| 50190 | 8 | 10 | R 1/2" | 17 | 10 | 35 | 5 | 64,00 | |
| 50191 | 8 | 12 | R 1/2" | 17 | 10 | 35 | 5 | 64,00 | |
| 50192 | 12 | 16 | R 1/2" | 21 | 10 | 37 | 5 | 65,00 | |
| 50193 | 4 | 6 | NPT 1/8" | 11 | 11 | 30 | 10 | 42,00 | |
| 50194 | 4 | 6 | NPT 1/4" | 11 | 15 | 37 | 10 | 48,00 | |
| 50195 | 6 | 8 | NPT 1/4" | 15 | 15 | 39 | 10 | 48,00 | |
| 50196 | 6 | 10 | NPT 1/4" | 15 | 15 | 39 | 10 | 48,00 | |
