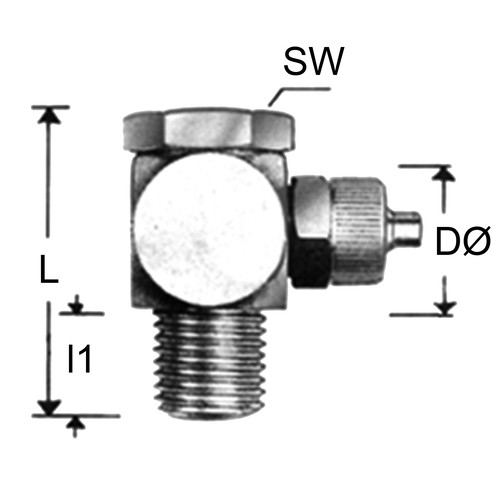

Winkel-Verbinder mit Außengewinde aus Messing
| Artikel |
Schlauch Innen-Ø mm
|
Schlauch Außen-Ø mm
|
Außengewinde |
D mm
|
l1 mm
|
L mm
|
Einheit Stück
|
Preis Euro* |
Kaufen |
|---|---|---|---|---|---|---|---|---|---|
| 10758 | 3 | 5 | R 1/8" | 8,5 | 6 | 26 | 10 | 67,00 | |
| 10759 | 4 | 6 | R 1/8" | 11 | 6 | 26 | 10 | 75,00 | |
| 10760 | 6 | 8 | R 1/8" | 15 | 6 | 29 | 10 | 75,00 | |
| 10761 | 6 | 10 | R 1/8" | 15 | 6 | 29 | 10 | 86,00 | |
| 10762 | 8 | 10 | R 1/8" | 17 | 6 | 29 | 10 | 97,00 | |
| 10763 | 8 | 12 | R 1/8" | 17 | 6 | 29 | 10 | 97,00 | |
| 10764 | 4 | 6 | R 1/4" | 11 | 8 | 30 | 10 | 97,00 | |
| 10765 | 6 | 8 | R 1/4" | 15 | 8 | 30 | 10 | 97,00 | |
| 10766 | 6 | 10 | R 1/4" | 15 | 8 | 30 | 10 | 97,00 | |
| 10767 | 8 | 10 | R 1/4" | 17 | 8 | 30 | 10 | 97,00 | |
| 10768 | 8 | 12 | R 1/4" | 17 | 8 | 30 | 5 | 81,00 | |
| 10769 | 4 | 6 | R 3/8" | 11 | 9 | 37 | 5 | 81,00 | |
| 10770 | 6 | 8 | R 3/8" | 15 | 9 | 37 | 5 | 86,00 | |
| 10771 | 6 | 10 | R 3/8" | 15 | 9 | 37 | 5 | 86,00 | |
| 10772 | 8 | 10 | R 3/8" | 17 | 9 | 37 | 5 | 86,00 | |
| 10773 | 8 | 12 | R 3/8" | 17 | 9 | 37 | 5 | 81,00 | |
| 10775 | 6 | 8 | R 1/2" | 15 | 10 | 44 | 5 | 86,00 | |
| 10776 | 6 | 10 | R 1/2" | 15 | 10 | 44 | 5 | 86,00 | |
| 10777 | 8 | 10 | R 1/2" | 17 | 10 | 44 | 5 | 91,00 | |
| 10778 | 8 | 12 | R 1/2" | 17 | 10 | 44 | 5 | 91,00 | |
| 10779 | 12 | 16 | R 1/2" | 21 | 10 | 44 | 5 | 104,00 | |
