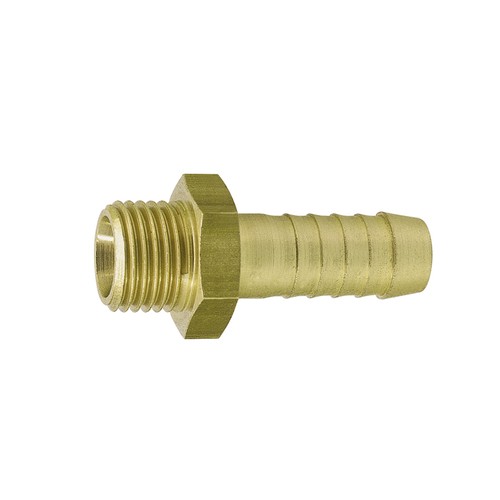

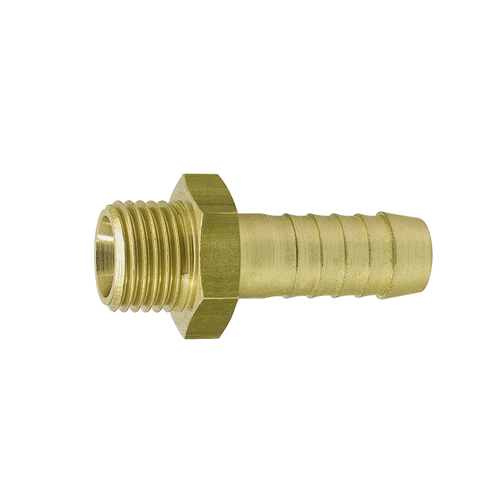

Gerade-Schlauchtülle mit Außengewinde aus Messing - starr
| Artikel |

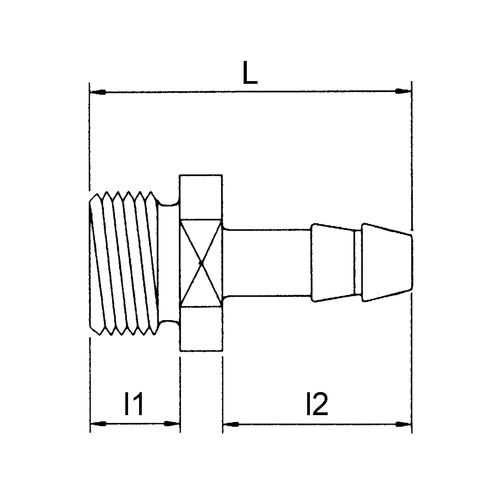

Schlauch Innen-Ø mm
|
Außengewinde |
NW mm
|
l1 mm
|
l2 mm
|
L mm
|
SW mm
|
Einheit Stück
|
Preis Euro* |
Kaufen |
|---|---|---|---|---|---|---|---|---|---|---|
| 331059 | 6 | G 1/8" | 5 | 7 | 25 | 37 | 13 | 10 | 39,00 | |
| 19051 | 6 | R 1/8" | 5 | 7 | 25 | 37 | 13 | 2 | 10,00 | |
| 331060 | 9 | G 1/8" | 5 | 7 | 25 | 37 | 13 | 10 | 41,00 | |
| 331061 | 6 | G 1/4" | 5 | 9 | 25 | 39 | 17 | 10 | 52,00 | |
| 331062 | 8 | G 1/4" | 6 | 9 | 25 | 39 | 17 | 10 | 52,00 | |
| 19055 | 8 | R 1/4" | 6 | 9 | 25 | 39 | 17 | 2 | 10,00 | |
| 331063 | 9 | G 1/4" | 7 | 9 | 25 | 39 | 17 | 10 | 45,00 | |
| 331064 | 11 | G 1/4" | 8 | 9 | 25 | 39 | 17 | 10 | 78,00 | |
| 331065 | 13 | G 1/4" | 8 | 9 | 25 | 39 | 17 | 10 | 56,00 | |
| 331066 | 6 | G 3/8" | 5 | 10 | 25 | 40 | 19 | 10 | 60,00 | |
| 331067 | 8 | G 3/8" | 6 | 10 | 25 | 40 | 19 | 10 | 58,00 | |
| 331068 | 9 | G 3/8" | 7 | 10 | 25 | 40 | 19 | 10 | 58,00 | |
| 331069 | 11 | G 3/8" | 8 | 10 | 25 | 40 | 19 | 10 | 80,00 | |
| 331070 | 13 | G 3/8" | 9,5 | 10 | 25 | 40 | 19 | 10 | 56,00 | |
| 331071 | 6 | G 1/2" | 5 | 10 | 25 | 40 | 24 | 10 | 97,00 | |
| 331072 | 9 | G 1/2" | 7 | 10 | 25 | 40 | 24 | 10 | 78,00 | |
| 331073 | 13 | G 1/2" | 11 | 10 | 25 | 40 | 24 | 10 | 80,00 | |
