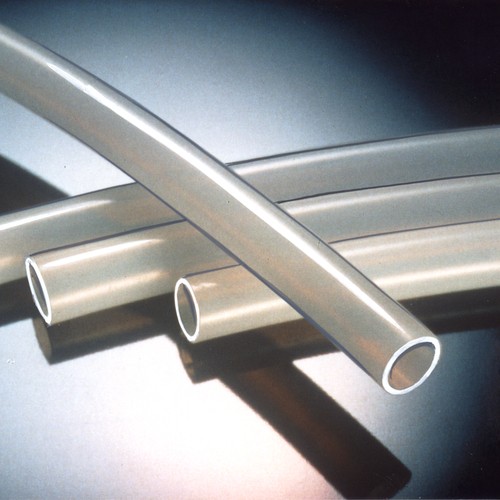

PA-Chemieschlauch - Standard
| Artikel |
Innen-Ø mm
|
Außen-Ø mm
|
Toleranz mm
|

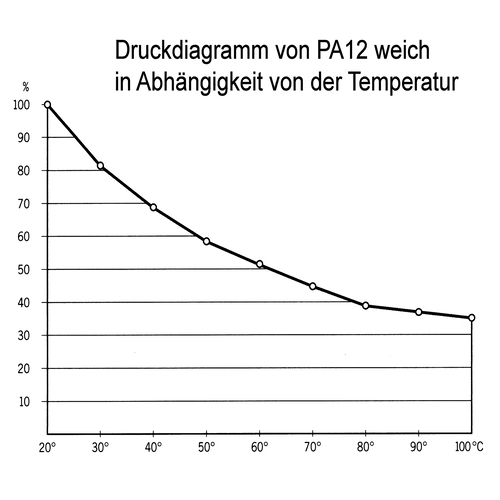

max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Farbe |
Einheit m
|
Preis Euro* |
Kaufen |
|---|---|---|---|---|---|---|---|---|---|
| 339650 | 1 | 2 | ±0,05 | 60 | 15 | natur | 5 | 30,00 | |
| 339651 | 1 | 2 | ±0,05 | 60 | 15 | natur | 15 | 60,00 | |
| 25804 | 2 | 4 | ±0,05 | 45 | 20 | natur | 5 | 24,00 | |
| 25805 | 2 | 4 | ±0,05 | 45 | 20 | natur | 15 | 47,00 | |
| 25806 | 2 | 4 | ±0,05 | 45 | 20 | schwarz | 5 | 24,00 | |
| 25807 | 2 | 4 | ±0,05 | 45 | 20 | schwarz | 15 | 47,00 | |
| 25816 | 2,5 | 4 | ±0,10 | 31 | 20 | natur | 5 | 24,00 | |
| 25817 | 2,5 | 4 | ±0,10 | 31 | 20 | natur | 15 | 47,00 | |
| 25818 | 2,5 | 4 | ±0,10 | 31 | 20 | schwarz | 5 | 24,00 | |
| 25819 | 2,5 | 4 | ±0,10 | 31 | 20 | schwarz | 15 | 47,00 | |
| 25828 | 2,9 | 4 | ±0,05 | 19 | 20 | natur | 5 | 24,00 | |
| 25829 | 2,9 | 4 | ±0,05 | 19 | 20 | natur | 15 | 47,00 | |
| 25830 | 3 | 4 | ±0,05 | 19 | 20 | schwarz | 5 | 24,00 | |
| 25831 | 3 | 4 | ±0,05 | 19 | 20 | schwarz | 15 | 47,00 | |
| 25852 | 3 | 5 | ±0,05 | 34 | 25 | natur | 5 | 29,00 | |
| 25853 | 3 | 5 | ±0,05 | 34 | 25 | natur | 15 | 61,00 | |
| 25854 | 3 | 5 | ±0,05 | 34 | 25 | schwarz | 5 | 29,00 | |
| 25855 | 3 | 5 | ±0,05 | 34 | 25 | schwarz | 15 | 61,00 | |
| 25864 | 4 | 5 | ±0,10 | 15 | 25 | natur | 5 | 29,00 | |
| 25865 | 4 | 5 | ±0,10 | 15 | 25 | natur | 15 | 61,00 | |
| 25866 | 4 | 5 | ±0,10 | 15 | 25 | schwarz | 5 | 29,00 | |
| 25867 | 4 | 5 | ±0,10 | 15 | 25 | schwarz | 15 | 61,00 | |
| 25876 | 3 | 6 | ±0,10 | 45 | 25 | natur | 5 | 35,00 | |
| 25877 | 3 | 6 | ±0,10 | 45 | 25 | natur | 15 | 78,00 | |
| 25878 | 3 | 6 | ±0,10 | 45 | 25 | schwarz | 5 | 35,00 | |
| 25879 | 3 | 6 | ±0,10 | 45 | 25 | schwarz | 15 | 78,00 | |
| 25888 | 4 | 6 | ±0,05 | 27 | 25 | natur | 5 | 33,00 | |
| 25889 | 4 | 6 | ±0,05 | 27 | 25 | natur | 15 | 65,00 | |
| 25890 | 4 | 6 | ±0,05 | 27 | 25 | schwarz | 5 | 33,00 | |
| 25891 | 4 | 6 | ±0,05 | 27 | 25 | schwarz | 15 | 65,00 | |
| 25894 | 4 | 6 | ±0,05 | 27 | 25 | blau | 5 | 33,00 | |
| 25895 | 4 | 6 | ±0,05 | 27 | 25 | blau | 15 | 65,00 | |
| 25896 | 4 | 6 | ±0,05 | 27 | 25 | gelb | 5 | 33,00 | |
| 25897 | 4 | 6 | ±0,05 | 27 | 25 | gelb | 15 | 65,00 | |
| 25898 | 4 | 6 | ±0,05 | 27 | 25 | grün | 5 | 33,00 | |
| 25899 | 4 | 6 | ±0,05 | 27 | 25 | grün | 15 | 65,00 | |
| 25912 | 4 | 7 | ±0,15 | 36 | 40 | natur | 5 | 35,00 | |
| 25913 | 4 | 7 | ±0,15 | 36 | 40 | natur | 15 | 69,00 | |
| 25924 | 5 | 7 | ±0,15 | 22 | 40 | natur | 5 | 35,00 | |
| 25925 | 5 | 7 | ±0,15 | 22 | 40 | natur | 15 | 69,00 | |
| 25926 | 5 | 7 | ±0,15 | 22 | 40 | schwarz | 5 | 35,00 | |
| 25927 | 5 | 7 | ±0,15 | 22 | 40 | schwarz | 15 | 69,00 | |
| 25936 | 4 | 8 | ±0,15 | 45 | 50 | natur | 5 | 42,00 | |
| 25937 | 4 | 8 | ±0,15 | 45 | 50 | natur | 15 | 87,00 | |
| 25938 | 4 | 8 | ±0,15 | 45 | 50 | schwarz | 5 | 42,00 | |
| 25939 | 4 | 8 | ±0,15 | 45 | 50 | schwarz | 15 | 87,00 | |
| 25948 | 5 | 8 | ±0,10 | 30 | 40 | natur | 5 | 35,00 | |
| 25949 | 5 | 8 | ±0,10 | 30 | 40 | natur | 15 | 69,00 | |
| 25950 | 5 | 8 | ±0,10 | 30 | 40 | schwarz | 5 | 35,00 | |
| 25951 | 5 | 8 | ±0,10 | 30 | 40 | schwarz | 15 | 69,00 | |
| 25954 | 5 | 8 | ±0,10 | 30 | 40 | blau | 5 | 35,00 | |
| 25955 | 5 | 8 | ±0,10 | 30 | 40 | blau | 15 | 69,00 | |
| 25960 | 6 | 8 | ±0,10 | 19 | 30 | natur | 5 | 35,00 | |
| 25961 | 6 | 8 | ±0,10 | 19 | 30 | natur | 15 | 69,00 | |
| 25962 | 6 | 8 | ±0,10 | 19 | 30 | schwarz | 5 | 35,00 | |
| 25963 | 6 | 8 | ±0,10 | 19 | 30 | schwarz | 15 | 69,00 | |
| 25964 | 6 | 8 | ±0,10 | 19 | 30 | rot | 5 | 35,00 | |
| 25965 | 6 | 8 | ±0,10 | 19 | 30 | rot | 15 | 69,00 | |
| 25966 | 6 | 8 | ±0,10 | 19 | 30 | blau | 5 | 35,00 | |
| 25968 | 6 | 8 | ±0,10 | 19 | 30 | gelb | 5 | 35,00 | |
| 25972 | 6 | 9 | ±0,20 | 27 | 50 | natur | 5 | 40,00 | |
| 25973 | 6 | 9 | ±0,20 | 27 | 50 | natur | 15 | 86,00 | |
| 25974 | 6 | 9 | ±0,20 | 27 | 50 | schwarz | 5 | 40,00 | |
| 25975 | 6 | 9 | ±0,20 | 27 | 50 | schwarz | 15 | 86,00 | |
| 25984 | 6 | 10 | ±0,10 | 34 | 50 | natur | 5 | 61,00 | |
| 25985 | 6 | 10 | ±0,10 | 34 | 50 | natur | 15 | 110,00 | |
| 25986 | 6 | 10 | ±0,10 | 34 | 50 | schwarz | 5 | 61,00 | |
| 25987 | 6 | 10 | ±0,10 | 34 | 50 | schwarz | 15 | 110,00 | |
| 25996 | 7 | 10 | ±0,10 | 23 | 50 | natur | 5 | 49,00 | |
| 25997 | 7 | 10 | ±0,10 | 23 | 50 | natur | 15 | 103,00 | |
| 25998 | 7 | 10 | ±0,10 | 23 | 50 | schwarz | 5 | 49,00 | |
| 25999 | 7 | 10 | ±0,10 | 23 | 50 | schwarz | 15 | 103,00 | |
| 26008 | 8 | 10 | ±0,10 | 15 | 60 | natur | 5 | 50,00 | |
| 26009 | 8 | 10 | ±0,10 | 15 | 60 | natur | 15 | 106,00 | |
| 26010 | 8 | 10 | ±0,10 | 15 | 60 | schwarz | 5 | 50,00 | |
| 26011 | 8 | 10 | ±0,10 | 15 | 60 | schwarz | 15 | 106,00 | |
| 26012 | 8 | 10 | ±0,10 | 15 | 60 | rot | 5 | 50,00 | |
| 26013 | 8 | 10 | ±0,10 | 15 | 60 | rot | 15 | 106,00 | |
| 26016 | 8 | 10 | ±0,10 | 15 | 60 | gelb | 5 | 50,00 | |
| 26017 | 8 | 10 | ±0,10 | 15 | 60 | gelb | 15 | 106,00 | |
| 26020 | 8 | 11 | ±0,20 | 21 | 60 | natur | 5 | 55,00 | |
| 26021 | 8 | 11 | ±0,20 | 21 | 60 | natur | 15 | 118,00 | |
| 26022 | 8 | 11 | ±0,20 | 21 | 60 | schwarz | 5 | 55,00 | |
| 26023 | 8 | 11 | ±0,20 | 21 | 60 | schwarz | 15 | 118,00 | |
| 26044 | 8 | 12 | ±0,10 | 27 | 60 | natur | 5 | 76,00 | |
| 26045 | 8 | 12 | ±0,10 | 27 | 60 | natur | 15 | 175,00 | |
| 26046 | 8 | 12 | ±0,10 | 27 | 60 | schwarz | 5 | 76,00 | |
| 26047 | 8 | 12 | ±0,10 | 27 | 60 | schwarz | 15 | 175,00 | |
| 26056 | 9 | 12 | ±0,10 | 19 | 60 | natur | 5 | 86,00 | |
| 26057 | 9 | 12 | ±0,10 | 19 | 60 | natur | 15 | 193,00 | |
| 26058 | 9 | 12 | ±0,10 | 19 | 60 | schwarz | 5 | 86,00 | |
| 26059 | 9 | 12 | ±0,10 | 19 | 60 | schwarz | 15 | 193,00 | |
| 26068 | 10 | 12 | ±0,10 | 12 | 85 | natur | 5 | 79,00 | |
| 26069 | 10 | 12 | ±0,10 | 12 | 85 | natur | 15 | 141,00 | |
| 26070 | 10 | 12 | ±0,10 | 12 | 85 | schwarz | 5 | 79,00 | |
| 26071 | 10 | 12 | ±0,10 | 12 | 85 | schwarz | 15 | 141,00 | |
| 26074 | 10 | 12 | ±0,10 | 12 | 85 | blau | 5 | 79,00 | |
| 26075 | 10 | 12 | ±0,10 | 12 | 85 | blau | 15 | 141,00 | |
| 26104 | 10 | 14 | ±0,10 | 22 | 80 | natur | 5 | 79,00 | |
| 26105 | 10 | 14 | ±0,10 | 22 | 80 | natur | 15 | 141,00 | |
| 26116 | 11 | 14 | ±0,10 | 16 | 80 | natur | 5 | 93,00 | |
| 26117 | 11 | 14 | ±0,10 | 16 | 80 | natur | 15 | 150,00 | |
| 26118 | 11 | 14 | ±0,10 | 16 | 80 | schwarz | 5 | 93,00 | |
| 26119 | 11 | 14 | ±0,10 | 16 | 80 | schwarz | 15 | 150,00 | |
| 340317 | 12 | 14 | ±0,25 | 12 | 80 | natur | 5 | 97,00 | |
| 340318 | 12 | 14 | ±0,25 | 12 | 80 | natur | 15 | 159,00 | |
| 340319 | 12 | 15 | ±0,10 | 17 | 90 | natur | 5 | 122,00 | |
| 340320 | 12 | 15 | ±0,10 | 17 | 90 | natur | 15 | 200,00 | |
| 340321 | 14 | 16 | ±0,25 | 10 | 100 | natur | 5 | 99,00 | |
| 340322 | 14 | 16 | ±0,25 | 10 | 100 | natur | 15 | 163,00 | |
| 340323 | 15 | 18 | ±0,25 | 14 | 140 | natur | 5 | 155,00 | |
| 340324 | 15 | 18 | ±0,25 | 14 | 140 | natur | 15 | 253,00 | |
