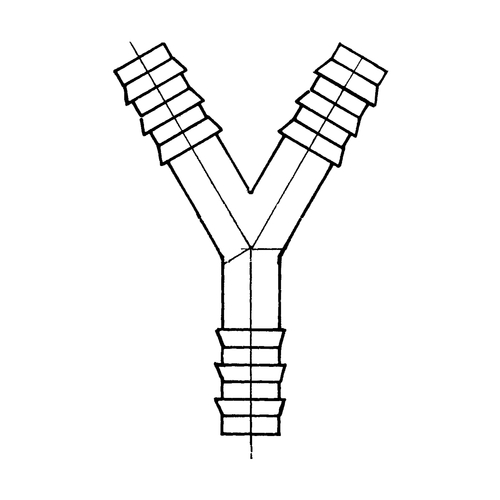

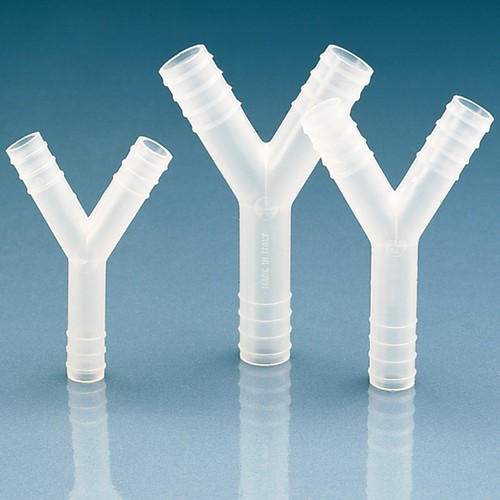

Y-Schlauchtülle aus PP oder PVDF
| Artikel |
Schlauch Innen-Ø mm
|
NW mm
|
Länge mm
|
Werkstoff |
max. Temp. °C
|
Einheit Stück
|
Preis Euro* |
Kaufen |
|---|---|---|---|---|---|---|---|---|
| 608031 | 3 | 2 | 22 | PP | 121 | 10 | 32,00 | |
| 29402 | 3 - 5 | 2 | 46 | PP | 135 | 10 | 49,00 | |
| 29403 | 3 - 5 | 2 | 46 | PVDF | 160 | 10 | 73,00 | |
| 60804 | 4 - 5 | 2,7 | 24 | PP | 121 | 10 | 36,00 | |
| 29404 | 5 - 7 | 4 | 54 | PP | 135 | 10 | 55,00 | |
| 29405 | 5 - 7 | 4 | 54 | PVDF | 160 | 10 | 75,00 | |
| 29406 | 6 - 8 | 5 | 60 | PP | 135 | 10 | 66,00 | |
| 29408 | 7 - 9 | 6 | 63 | PP | 135 | 10 | 66,00 | |
| 29409 | 7 - 9 | 6 | 63 | PVDF | 160 | 10 | 86,00 | |
| 60806 | 8 - 9 | 5,5 | 54 | PP | 121 | 10 | 47,00 | |
| 29410 | 9 - 11 | 8 | 70 | PP | 135 | 10 | 67,00 | |
| 29411 | 9 - 11 | 8 | 70 | PVDF | 160 | 10 | 94,00 | |
| 60807 | 10 - 11 | 7,9 | 73 | PP | 121 | 10 | 53,00 | |
| 29412 | 11 - 13 | 10 | 74 | PP | 135 | 10 | 69,00 | |
| 29413 | 11 - 13 | 10 | 74 | PVDF | 160 | 10 | 107,00 | |
| 60808 | 12 - 13 | 9,7 | 85 | PP | 121 | 5 | 27,00 | |
| 29414 | 13 - 15 | 12 | 83 | PP | 135 | 10 | 82,00 | |
| 29415 | 13 - 15 | 12 | 83 | PVDF | 160 | 10 | 125,00 | |
