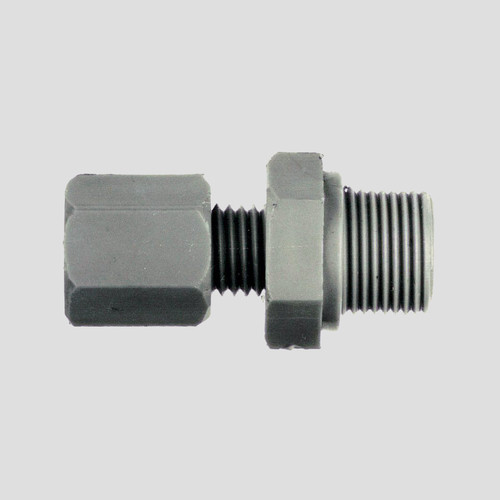

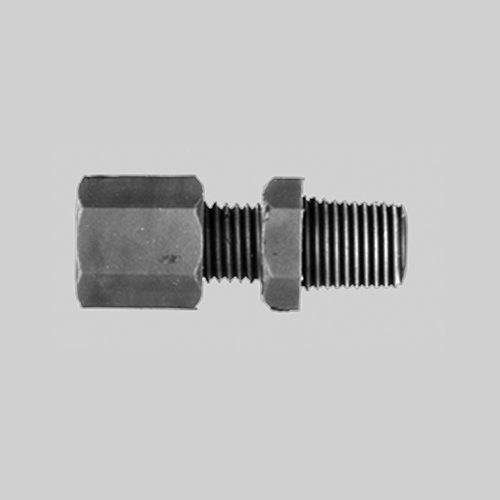

Gerader-Rohrverbinder mit Außengewinde aus PP oder PVDF - leitfähig und antistatisch
| Artikel |
Rohr Außen-Ø mm
|
Außengewinde |
l1 mm
|
L1 mm
|
SW mm
|
Werkstoff |
Einheit Stück
|
Preis Euro* |
Kaufen |
|---|---|---|---|---|---|---|---|---|---|
| 341381 | 4 | G 1/8" | 8 | 23 | 14 | PP | 1 | 13,00 | |
| 341382 | 4 | G 1/4" | 12 | 24 | 17 | PP | 1 | 16,00 | |
| 341383 | 4 | G 3/8" | 12 | 26 | 22 | PP | 1 | 23,00 | |
| 341384 | 4 | G 1/2" | 14 | 28 | 27 | PP | 1 | 25,00 | |
| 341385 | 6 | G 1/8" | 8 | 34 | 14 | PP | 1 | 13,00 | |
| 341386 | 6 | G 1/4" | 12 | 35 | 17 | PP | 1 | 16,00 | |
| 341387 | 6 | G 3/8" | 12 | 37 | 22 | PP | 1 | 23,00 | |
| 341388 | 6 | G 1/2" | 14 | 39 | 27 | PP | 1 | 27,00 | |
| 341389 | 8 | G 1/8" | 8 | 35 | 17 | PP | 1 | 18,00 | |
| 341390 | 8 | G 1/4" | 12 | 35 | 17 | PP | 1 | 20,00 | |
| 341391 | 8 | G 3/8" | 12 | 37 | 22 | PP | 1 | 27,00 | |
| 341392 | 8 | G 1/2" | 14 | 39 | 27 | PP | 1 | 31,00 | |
| 341393 | 10 | G 1/8" | 8 | 40 | 19 | PP | 1 | 25,00 | |
| 341394 | 10 | G 1/4" | 12 | 40 | 19 | PP | 1 | 26,00 | |
| 341395 | 10 | G 3/8" | 12 | 41 | 22 | PP | 1 | 31,00 | |
| 341396 | 10 | G 1/2" | 14 | 42 | 27 | PP | 1 | 34,00 | |
| 341397 | 12 | G 1/8" | 8 | 43 | 22 | PP | 1 | 42,00 | |
| 341398 | 12 | G 1/4" | 12 | 43 | 22 | PP | 3 | 122,00 | |
| 341399 | 12 | G 3/8" | 12 | 43 | 22 | PP | 1 | 43,00 | |
| 341400 | 12 | G 1/2" | 14 | 45 | 27 | PP | 1 | 46,00 | |
| 341401 | 14 | G 1/8" | 8 | 45 | 27 | PP | 1 | 49,00 | |
| 341402 | 14 | G 1/4" | 12 | 45 | 27 | PP | 1 | 49,00 | |
| 341403 | 14 | G 3/8" | 12 | 45 | 27 | PP | 1 | 52,00 | |
| 341404 | 14 | G 1/2" | 14 | 45 | 27 | PP | 1 | 55,00 | |
| 341405 | 16 | G 1/4" | 12 | 44 | 27 | PP | 1 | 62,00 | |
| 341406 | 16 | G 3/8" | 12 | 45 | 27 | PP | 1 | 66,00 | |
| 341407 | 16 | G 1/2" | 20 | 45 | 36 | PP | 3 | 205,00 | |
| 341408 | 4 | NPT 1/8" | 10 | 21 | 12 | PP | 1 | 13,00 | |
| 341409 | 4 | NPT 1/4" | 15 | 24 | 17 | PP | 1 | 16,00 | |
| 341410 | 4 | NPT 3/8" | 15 | 25 | 19 | PP | 1 | 23,00 | |
| 341411 | 4 | NPT 1/2" | 20 | 26 | 24 | PP | 1 | 25,00 | |
| 341412 | 6 | NPT 1/8" | 10 | 33 | 14 | PP | 1 | 17,00 | |
| 341413 | 6 | NPT 1/4" | 15 | 33 | 17 | PP | 1 | 20,00 | |
| 341414 | 6 | NPT 3/8" | 15 | 34 | 19 | PP | 1 | 23,00 | |
| 341415 | 6 | NPT 1/2" | 20 | 37 | 24 | PP | 1 | 27,00 | |
| 341416 | 8 | NPT 1/8" | 10 | 33 | 17 | PP | 1 | 18,00 | |
| 341417 | 8 | NPT 1/4" | 15 | 33 | 17 | PP | 1 | 20,00 | |
| 341418 | 8 | NPT 3/8" | 15 | 34 | 19 | PP | 1 | 27,00 | |
| 341419 | 8 | NPT 1/2" | 20 | 37 | 24 | PP | 1 | 31,00 | |
| 341420 | 10 | NPT 1/8" | 10 | 37 | 19 | PP | 1 | 25,00 | |
| 341421 | 10 | NPT 1/4" | 15 | 37 | 19 | PP | 1 | 26,00 | |
| 341422 | 10 | NPT 3/8" | 15 | 38 | 22 | PP | 1 | 31,00 | |
| 341423 | 10 | NPT 1/2" | 20 | 40 | 24 | PP | 1 | 34,00 | |
| 341424 | 12 | NPT 1/8" | 10 | 41 | 22 | PP | 1 | 42,00 | |
| 341425 | 12 | NPT 1/4" | 15 | 41 | 22 | PP | 1 | 42,00 | |
| 341426 | 12 | NPT 3/8" | 15 | 41 | 22 | PP | 1 | 43,00 | |
| 341427 | 12 | NPT 1/2" | 20 | 43 | 24 | PP | 1 | 46,00 | |
| 341428 | 14 | NPT 1/8" | 10 | 43 | 24 | PP | 1 | 49,00 | |
| 341429 | 14 | NPT 1/4" | 15 | 43 | 24 | PP | 1 | 49,00 | |
| 341430 | 14 | NPT 3/8" | 15 | 43 | 24 | PP | 1 | 52,00 | |
| 341431 | 14 | NPT 1/2" | 20 | 43 | 24 | PP | 1 | 55,00 | |
| 341432 | 16 | NPT 1/4" | 15 | 43 | 27 | PP | 1 | 62,00 | |
| 341433 | 16 | NPT 3/8" | 15 | 43 | 27 | PP | 1 | 66,00 | |
| 341434 | 16 | NPT 1/2" | 20 | 43 | 27 | PP | 1 | 69,00 | |
| 341449 | 4 | G 1/8" | 8 | 23 | 14 | PVDF | 2 | 68,00 | |
| 341450 | 4 | G 1/4" | 12 | 24 | 17 | PVDF | 2 | 73,00 | |
| 341451 | 4 | G 3/8" | 12 | 26 | 22 | PVDF | 2 | 101,00 | |
| 341452 | 4 | G 1/2" | 14 | 28 | 27 | PVDF | 2 | 114,00 | |
| 341453 | 6 | G 1/8" | 8 | 34 | 14 | PVDF | 2 | 73,00 | |
| 341454 | 6 | G 1/4" | 12 | 35 | 17 | PVDF | 2 | 82,00 | |
| 341455 | 6 | G 3/8" | 12 | 37 | 22 | PVDF | 2 | 107,00 | |
| 341456 | 6 | G 1/2" | 14 | 39 | 27 | PVDF | 2 | 124,00 | |
| 341457 | 8 | G 1/8" | 8 | 35 | 17 | PVDF | 2 | 90,00 | |
| 341458 | 8 | G 1/4" | 12 | 35 | 17 | PVDF | 2 | 95,00 | |
| 341459 | 8 | G 3/8" | 12 | 37 | 22 | PVDF | 2 | 151,00 | |
| 341460 | 8 | G 1/2" | 14 | 39 | 27 | PVDF | 2 | 163,00 | |
| 341461 | 10 | G 1/8" | 8 | 40 | 19 | PVDF | 2 | 107,00 | |
| 341462 | 10 | G 1/4" | 12 | 40 | 19 | PVDF | 2 | 107,00 | |
| 341463 | 10 | G 3/8" | 12 | 41 | 22 | PVDF | 2 | 170,00 | |
| 341464 | 10 | G 1/2" | 14 | 42 | 27 | PVDF | 2 | 190,00 | |
| 341465 | 12 | G 1/8" | 8 | 43 | 22 | PVDF | 1 | 56,00 | |
| 341466 | 12 | G 1/4" | 12 | 43 | 22 | PVDF | 1 | 61,00 | |
| 341467 | 12 | G 3/8" | 12 | 43 | 22 | PVDF | 1 | 101,00 | |
| 341468 | 12 | G 1/2" | 14 | 45 | 27 | PVDF | 1 | 109,00 | |
| 341469 | 14 | G 1/8" | 8 | 45 | 27 | PVDF | 1 | 62,00 | |
| 341470 | 14 | G 1/4" | 12 | 45 | 27 | PVDF | 1 | 68,00 | |
| 341471 | 14 | G 3/8" | 12 | 45 | 27 | PVDF | 1 | 131,00 | |
| 341472 | 14 | G 1/2" | 14 | 45 | 27 | PVDF | 1 | 137,00 | |
| 341473 | 16 | G 1/4" | 12 | 44 | 27 | PVDF | 1 | 74,00 | |
| 341474 | 16 | G 3/8" | 12 | 45 | 27 | PVDF | 1 | 139,00 | |
| 341475 | 16 | G 1/2" | 20 | 45 | 36 | PVDF | 1 | 143,00 | |
| 341476 | 4 | NPT 1/8" | 10 | 21 | 12 | PVDF | 2 | 68,00 | |
| 341477 | 4 | NPT 1/4" | 15 | 24 | 17 | PVDF | 2 | 73,00 | |
| 341478 | 4 | NPT 3/8" | 15 | 25 | 19 | PVDF | 2 | 101,00 | |
| 341479 | 4 | NPT 1/2" | 20 | 26 | 24 | PVDF | 2 | 114,00 | |
| 341480 | 6 | NPT 1/8" | 10 | 33 | 14 | PVDF | 2 | 73,00 | |
| 341481 | 6 | NPT 1/4" | 15 | 33 | 17 | PVDF | 2 | 82,00 | |
| 341482 | 6 | NPT 3/8" | 15 | 34 | 19 | PVDF | 2 | 107,00 | |
| 341483 | 6 | NPT 1/2" | 20 | 37 | 24 | PVDF | 2 | 124,00 | |
| 341484 | 8 | NPT 1/8" | 10 | 33 | 17 | PVDF | 2 | 90,00 | |
| 341485 | 8 | NPT 1/4" | 15 | 33 | 17 | PVDF | 2 | 95,00 | |
| 341486 | 8 | NPT 3/8" | 15 | 34 | 19 | PVDF | 2 | 151,00 | |
| 341487 | 8 | NPT 1/2" | 20 | 37 | 24 | PVDF | 2 | 165,00 | |
| 341488 | 10 | NPT 1/8" | 10 | 37 | 19 | PVDF | 2 | 107,00 | |
| 341489 | 10 | NPT 1/4" | 15 | 37 | 19 | PVDF | 2 | 114,00 | |
| 341490 | 10 | NPT 3/8" | 15 | 38 | 22 | PVDF | 2 | 170,00 | |
| 341491 | 10 | NPT 1/2" | 20 | 40 | 24 | PVDF | 2 | 190,00 | |
| 341492 | 12 | NPT 1/8" | 10 | 41 | 22 | PVDF | 1 | 56,00 | |
| 341493 | 12 | NPT 1/4" | 15 | 41 | 22 | PVDF | 1 | 61,00 | |
| 341494 | 12 | NPT 3/8" | 15 | 41 | 22 | PVDF | 1 | 101,00 | |
| 341495 | 12 | NPT 1/2" | 20 | 43 | 24 | PVDF | 1 | 109,00 | |
| 341496 | 14 | NPT 1/8" | 10 | 43 | 24 | PVDF | 1 | 62,00 | |
| 341497 | 14 | NPT 1/4" | 15 | 43 | 24 | PVDF | 1 | 68,00 | |
| 341498 | 14 | NPT 3/8" | 15 | 43 | 24 | PVDF | 1 | 131,00 | |
| 341499 | 14 | NPT 1/2" | 20 | 43 | 24 | PVDF | 1 | 137,00 | |
| 341500 | 16 | NPT 1/4" | 15 | 43 | 27 | PVDF | 1 | 74,00 | |
| 341501 | 16 | NPT 3/8" | 15 | 43 | 27 | PVDF | 1 | 139,00 | |
| 341502 | 16 | NPT 1/2" | 20 | 43 | 27 | PVDF | 1 | 143,00 | |
