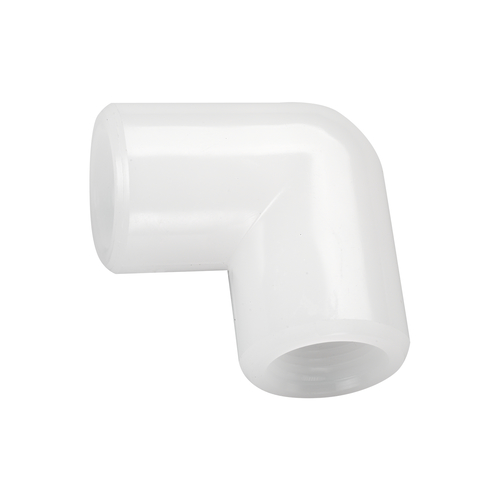

Winkel-Gewindemuffe aus PP, PVDF oder PFA

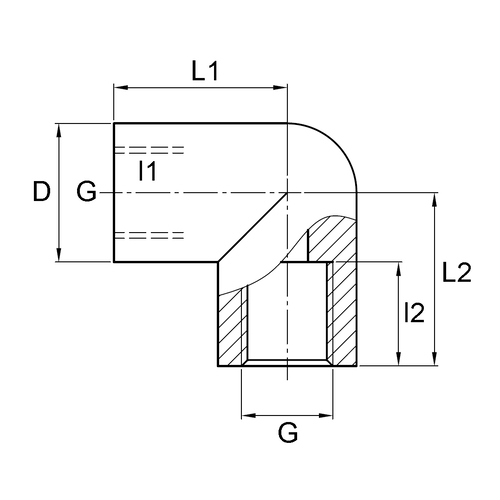

| Artikel | Innengewinde (A) | Innengewinde (B) |
D mm
|
l1 mm
|
l2 mm
|
L1 mm
|
L2 mm
|
Werkstoff |
Einheit Stück
|
Preis Euro* |
Kaufen |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24332 | G 1/8" | G 1/8" | 15 | 10 | 10 | 20 | 20 | PP | 1 | 15,00 | |
| 24333 | G 1/8" | G 1/8" | 15 | 10 | 10 | 20 | 20 | PTFE | 1 | 53,00 | |
| 24334 | G 1/8" | G 1/8" | 15 | 10 | 10 | 20 | 20 | PVDF | 1 | 45,00 | |
| 24336 | G 1/4" | G 1/4" | 20 | 15 | 15 | 25 | 25 | PP | 1 | 23,00 | |
| 24337 | G 1/4" | G 1/4" | 20 | 15 | 15 | 25 | 25 | PFA | 1 | 126,00 | |
| 24338 | G 1/4" | G 1/4" | 20 | 15 | 15 | 25 | 25 | PVDF | 1 | 78,00 | |
| 24340 | G 3/8" | G 3/8" | 25 | 15 | 15 | 30 | 30 | PP | 1 | 32,00 | |
| 24341 | G 3/8" | G 3/8" | 25 | 15 | 15 | 30 | 30 | PFA | 1 | 146,00 | |
| 24342 | G 3/8" | G 3/8" | 25 | 15 | 15 | 30 | 30 | PVDF | 1 | 84,00 | |
| 24344 | G 1/2" | G 1/2" | 30 | 16 | 16 | 35 | 35 | PP | 1 | 35,00 | |
| 24345 | G 1/2" | G 1/2" | 30 | 16 | 16 | 35 | 35 | PTFE | 1 | 171,00 | |
| 24346 | G 1/2" | G 1/2" | 30 | 16 | 16 | 35 | 35 | PVDF | 1 | 95,00 | |
