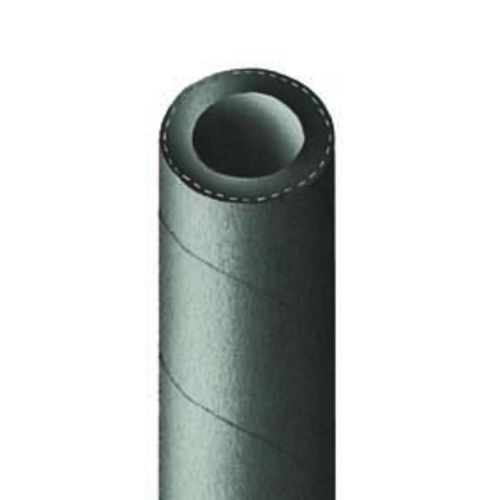

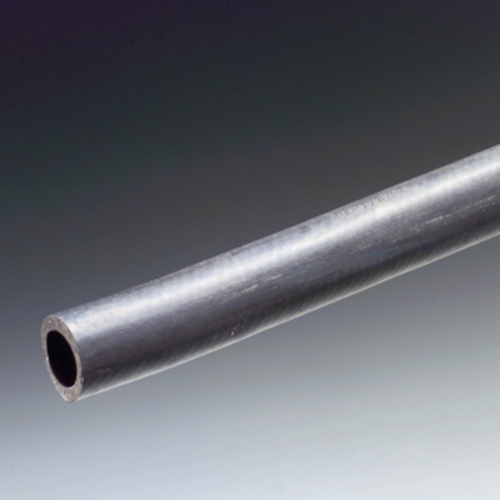

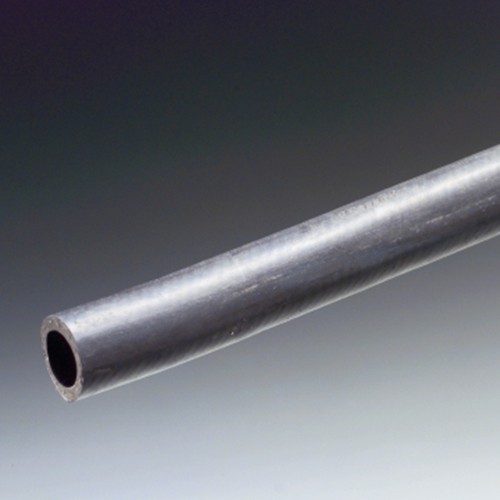

EPDM-Industrieschlauch
| Artikel |
Innen-Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Preis Euro* |
Kaufen |
|---|---|---|---|---|---|---|---|
| 140672 | 8 | 14,7 | 10 | 45 | 5 | 64,00 | |
| 140682 | 8 | 14,7 | 10 | 45 | 10 | 107,00 | |
| 140692 | 9,5 | 16,3 | 10 | 50 | 5 | 98,00 | |
| 140702 | 9,5 | 16,3 | 10 | 50 | 10 | 166,00 | |
| 49424 | 12 | 19 | 10 | 100 | 5 | 107,00 | |
| 49425 | 12 | 19 | 10 | 100 | 10 | 181,00 | |
| 140712 | 12,7 | 19,8 | 10 | 60 | 5 | 107,00 | |
| 140722 | 12,7 | 19,8 | 10 | 60 | 10 | 188,00 | |
| 49428 | 14 | 20 | 10 | 105 | 5 | 151,00 | |
| 49429 | 14 | 20 | 10 | 105 | 10 | 248,00 | |
| 49430 | 15 | 21 | 10 | 120 | 5 | 135,00 | |
| 49431 | 15 | 21 | 10 | 120 | 10 | 225,00 | |
| 140732 | 16 | 23 | 10 | 70 | 5 | 135,00 | |
| 140742 | 16 | 23 | 10 | 70 | 10 | 225,00 | |
| 49434 | 17 | 24 | 10 | 140 | 5 | 149,00 | |
| 49435 | 17 | 24 | 10 | 140 | 10 | 236,00 | |
| 49436 | 18 | 24 | 10 | 145 | 5 | 151,00 | |
| 49437 | 18 | 24 | 10 | 145 | 10 | 253,00 | |
| 494382 | 19 | 27 | 10 | 80 | 5 | 143,00 | |
| 494392 | 19 | 27 | 10 | 80 | 10 | 228,00 | |
| 49440 | 20 | 27 | 10 | 160 | 5 | 160,00 | |
| 49441 | 20 | 27 | 10 | 160 | 10 | 264,00 | |
| 49442 | 22 | 29 | 10 | 175 | 5 | 174,00 | |
| 49443 | 22 | 29 | 10 | 175 | 10 | 280,00 | |
| 140752 | 25,4 | 33,7 | 10 | 110 | 5 | 174,00 | |
| 140762 | 25,4 | 33,7 | 10 | 110 | 10 | 280,00 | |
| 14077 | 28 | 35 | 8 | 230 | 5 | 171,00 | |
| 14078 | 28 | 35 | 8 | 230 | 10 | 285,00 | |
| 49446 | 30 | 38 | 6 | 250 | 5 | 179,00 | |
| 49447 | 30 | 38 | 6 | 250 | 10 | 297,00 | |
| 14079 | 32 | 40 | 6 | 280 | 5 | 185,00 | |
| 14080 | 32 | 40 | 6 | 280 | 10 | 308,00 | |
| 49448 | 35 | 43 | 6 | 300 | 5 | 236,00 | |
| 49449 | 35 | 43 | 6 | 300 | 10 | 396,00 | |
| 14081 | 38 | 46 | 6 | 310 | 5 | 239,00 | |
| 14082 | 38 | 46 | 6 | 310 | 10 | 399,00 | |
| 14083 | 40 | 50 | 5 | 320 | 5 | 241,00 | |
| 14084 | 40 | 50 | 5 | 320 | 10 | 403,00 | |
| 14085 | 42 | 52 | 5 | 350 | 5 | 266,00 | |
| 14086 | 42 | 52 | 5 | 350 | 10 | 441,00 | |
| 49450 | 45 | 55 | 5 | 380 | 5 | 283,00 | |
| 49451 | 45 | 55 | 5 | 380 | 10 | 469,00 | |
| 14087 | 48 | 58 | 5 | 400 | 5 | 324,00 | |
| 14088 | 48 | 58 | 5 | 400 | 10 | 536,00 | |
| 49452 | 50 | 60 | 4 | 420 | 5 | 340,00 | |
| 49453 | 50 | 60 | 4 | 420 | 10 | 570,00 | |
| 12461 | 55 | 65 | 4 | 450 | 3 | 210,00 | |
| 12462 | 55 | 65 | 4 | 450 | 6 | 340,00 | |
| 12463 | 60 | 70 | 3 | 500 | 3 | 230,00 | |
| 12464 | 60 | 70 | 3 | 500 | 6 | 378,00 | |
| 12465 | 65 | 75 | 3 | 550 | 3 | 258,00 | |
| 12466 | 65 | 75 | 3 | 550 | 6 | 418,00 | |
| 12467 | 70 | 80 | 3 | 600 | 1 | 110,00 | |
| 12468 | 70 | 80 | 3 | 600 | 3 | 252,00 | |
| 12469 | 75 | 85 | 3 | 650 | 1 | 130,00 | |
| 12470 | 75 | 85 | 3 | 650 | 3 | 298,00 | |
| 12471 | 80 | 92 | 3 | 700 | 1 | 149,00 | |
| 12472 | 80 | 92 | 3 | 700 | 3 | 378,00 | |
| 12473 | 90 | 102 | 3 | 800 | 1 | 170,00 | |
| 12474 | 90 | 102 | 3 | 800 | 3 | 425,00 | |
| 12475 | 100 | 112 | 3 | 850 | 1 | 198,00 | |
| 12476 | 100 | 112 | 3 | 850 | 3 | 489,00 | |
| 12477 | 110 | 122 | 3 | 900 | 1 | 230,00 | |
| 12478 | 110 | 122 | 3 | 900 | 3 | 560,00 | |
| 12479 | 120 | 132 | 3 | 1.000 | 1 | 255,00 | |
| 12480 | 120 | 132 | 3 | 1.000 | 3 | 620,00 | |
