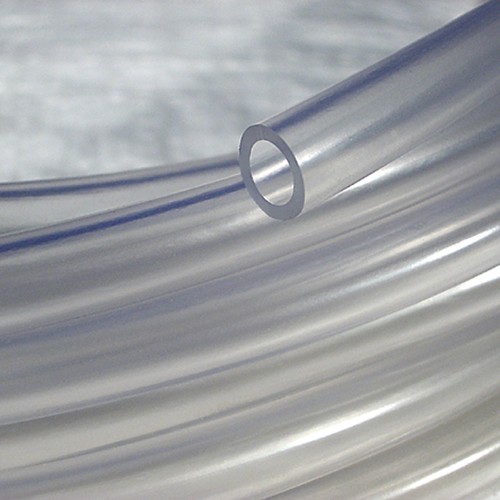

TYGON®-Labor- und Vakuumschlauch - FDA

Artikel ist im Abverkauf, Ersatzgruppe ist Artikelreihe 24705 S3 ® E-3603... mehr

Artikel ist im Abverkauf, Ersatzgruppe ist Artikelreihe 24705 S3® E-3603

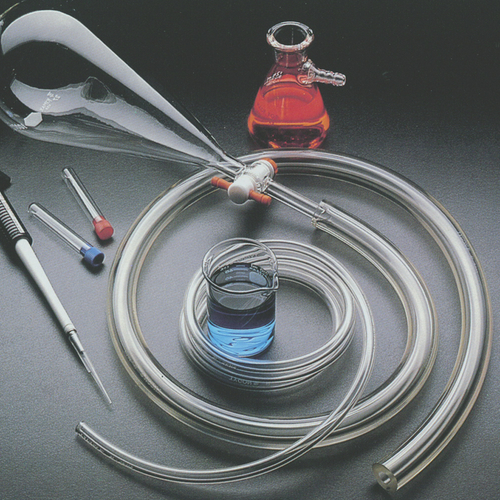

Einsatzgebiet

Labortechnik, Pharmatechnik, Medizintechnik, Prozesstechnik, Chemietechnik, Verfahrenstechnik

Produktspezifikation

Vakuumschlauch, Förderschlauch, für Peristaltikpumpen geeignet

Gute chemische Beständigkeit

Gutes elastisches Verhalten, weich, flexibel

Sehr gute mechanische Festigkeit

Gute Oxidations-, Witterungs- und Alterungsbeständigkeit

Geringere Gasdurchlässigkeit als Gummi, da größere Dichte

Absolut glatte, polierte Innenoberfläche, somit antiadhäsive Oberflächeneigenschaften

Charakteristik: Hohe Extraktions- und Quellbeständigkeit durch Einsatz definierter Additive

Technische Spezifikation

Werkstoff: TYGON®-R-3603

Farbe: glasklar

Shore-Härte A: 55° (ASTM D2240-02)

Temperaturbereich: -10 bis +74 °C

Dichte: 1,18 g/cm3

Versprödungspunkt: -50 °C

Zugfestigkeit: 11,4 MPa (ASTM D412-98)

Weiterreißfestigkeit: 22 kN/m (ASTM D1004-94)

Bruchdehnung: 450 % (ASTM D412-98)

E-Modul: 4,5 MPa bei 100 % Dehnung

Druckverformungsrest: 61 % bei +70 °C / 22 h

Elektr. Durchschlagfestigkeit: 23,9 kV/mm (ASTM D149-97)

Wasseraufnahme: 0,24 % bei +23 °C / 24 h

Sterilisation: Dampf (1 bar/30 min.); Gas (Ethylenoxid)

Regelwerk: FDA 21 CFR §175.300

Keine zusätzlichen Informationen verfügbar.
Artikel Bild Innen-Ø
mm
Außen-Ø
mm
max. Betr.-Druck1
bar
Einheit
m
Preis
Euro*
Kaufen
92358
4 7,2 2,4 3 48,00
92372
6,4 9,5 1,7 3 71,00
92402
12,7 15,9 0,7 3 85,00
92408
12,7 20,6 2 1 70,00
92409
12,7 20,6 2 3 191,00
92412
14,3 19 1 1 49,00
92413
14,3 19 1 3 139,00
92420
15,9 22,2 1,4 1 70,00
92421
15,9 22,2 1,4 3 182,00
92422
15,9 23,8 1,7 1 83,00
92423
15,9 23,8 1,7 3 246,00
92426
17,5 22,2 1 1 59,00
92427
17,5 22,2 1 3 166,00
92432
19 25,4 1,2 1 75,00
92433
19 25,4 1,2 3 225,00
92438
19 31,8 2 1 167,00
92439
19 31,8 2 3 499,00
92444
22,2 30,2 1 1 109,00
92445
22,2 30,2 1 3 323,00
92448
25,4 31,8 1 1 95,00
92449
25,4 31,8 1 3 283,00
92464
31,8 38,1 0,8 1 116,00
92465
31,8 38,1 0,8 3 360,00
92466
31,8 41,4 1,3 1 188,00
92467
31,8 41,4 1,3 3 560,00
92470
38,1 47,7 1 1 212,00
92471
38,1 47,7 1 3 633,00
