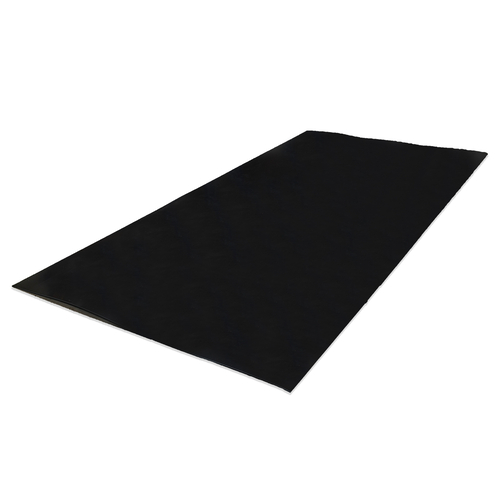

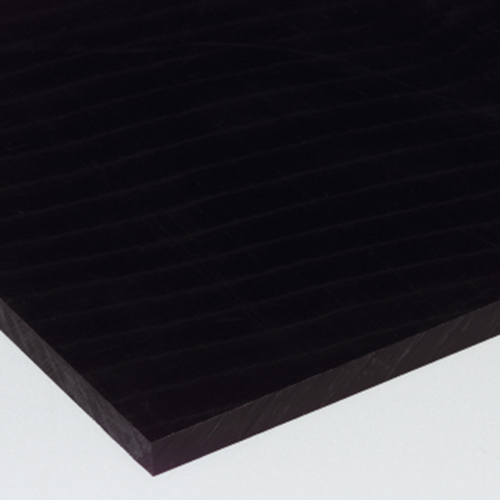

Platte aus POM - schwarz

Einsatzgebiet Für Präzisionsteile im Maschinen- und Apparatebau wie... mehr

Einsatzgebiet

Für Präzisionsteile im Maschinen- und Apparatebau wie Gleitbeläge, Gleitleisten, Zahnräder, Führungen, Kurvenscheiben; für elektrische Isolierteile aller Art.

Produktspezifikation

Hohe mechanische Festigkeit, Steifigkeit und Härte

Große Dimensionsstabilität und Schlagfestigkeit

Sehr gute Zerspanbarkeit und dielektrisches Verhalten

Gute Gleiteigenschaften

FDA-konform

Beständig gegen Reinigungsmittel und zahlreiche Lösungsmittel

Technische Spezifikation

Werkstoff: POM-C (Polyacetal-Copolymer)

Farbe: schwarz

Herstellungsart: extrudiert und getempert

Dichte: 1,41 g/cm3

Temperaturbereich: -50 bis +115 °C, kurzzeitig +140 °C

Regelwerk: FDA 21 CFR 177.2470, FDA 21 CFR 178.3297

Keine zusätzlichen Informationen verfügbar.
Artikel Bild Stärke
mm
Toleranz
mm
Abmessung
mm
Einheit
Stück
Preis
Euro*
Kaufen
302211
8 +0,2 / +0,9 250 x 305 1 139,00
302212
8 +0,2 / +0,9 305 x 500 1 190,00
302213
10 +0,2 / +0,9 250 x 305 1 158,00
302214
10 +0,2 / +0,9 305 x 500 1 218,00
302215
12 +0,3 / +1,5 250 x 305 1 175,00
302216
12 +0,3 / +1,5 305 x 500 1 235,00
302217
15 +0,3 / +1,5 250 x 305 1 200,00
302218
15 +0,3 / +1,5 305 x 500 1 254,00
302219
20 +0,3 / +1,5 250 x 305 1 241,00
302220
20 +0,3 / +1,5 305 x 500 1 288,00
302221
25 +0,3 / +1,5 250 x 305 1 267,00
302222
25 +0,3 / +1,5 305 x 500 1 319,00
302223
30 +0,5 / +2,5 250 x 305 1 326,00
302224
30 +0,5 / +2,5 305 x 500 1 377,00
302225
40 +0,5 / +2,5 250 x 305 1 379,00
302226
40 +0,5 / +2,5 305 x 500 1 455,00
