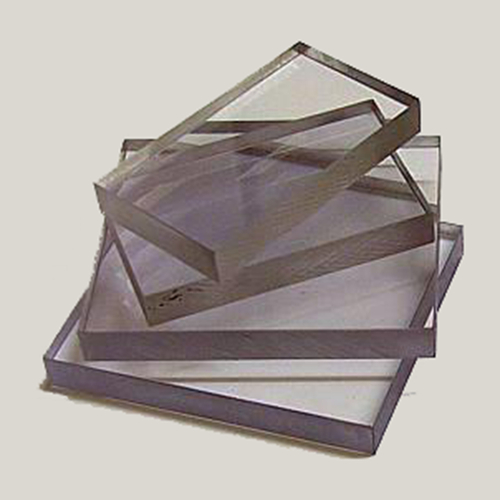

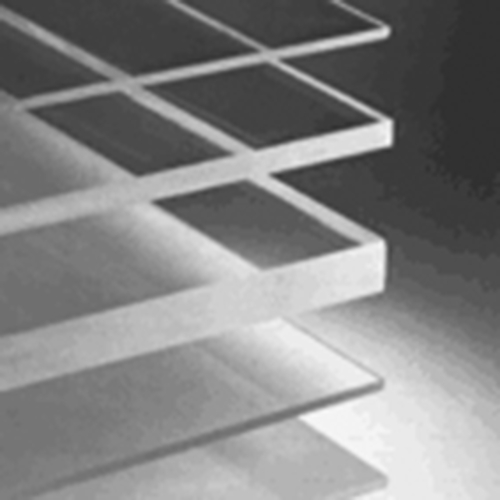

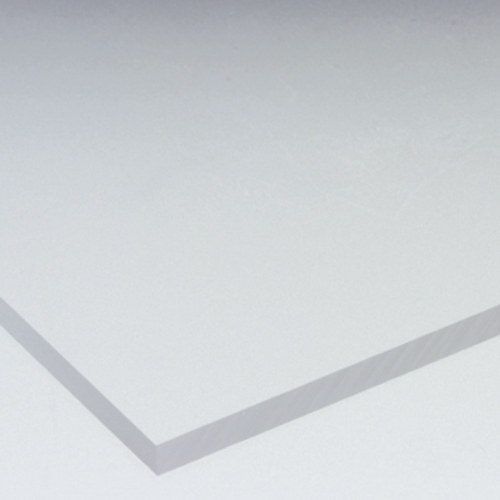

Platte aus PMMA

Produktspezifikation Sehr gute optische Eigenschaften UV-Beständigkeit Gute... mehr

Produktspezifikation

Sehr gute optische Eigenschaften

UV-Beständigkeit

Gute Säure- und Laugenbeständigkeit

Größte Steifheit und Härte

Gute Witterungsbeständigkeit

Gute Warmform- und Klebbarkeit

Für Gleitfunktionen nicht verwendbar

Idealer Kunststoff für Transparent-Konstruktionen im Maschinenbau, in der Elektrotechnik sowie im Modellbau

Technische Spezifikation

Werkstoff: PMMA (Polymethylmethacrylat)

Herstellungsart: gegossen

Farbe: glasklar

Temperaturbereich: -40 bis +80 °C, kurzzeitig +90 °C

Dichte: 1,19 g/cm3 (DIN 53479)

Reißfestigkeit: 72 MPa (DIN 53455)

Reißdehnung: 5 % (DIN 53455)

Schlagzähigkeit: 15 kJ/m2 (DIN 53453)

Kerbschlagzähigkeit: 1,5 kJ/m2 (DIN 53453)

Biegefestigkeit: 125 MPa (DIN 53452)

Wärmeleitfähigkeit: 0,19 W/m * K bei +20 °C (DIN 52612)

Dielektrizitätskonstante: 2,9 (DIN 53483)

Spez. Durchgangswiderstand: 1015 Ohm x cm (DIN 53482)

Elektr. Durchschlagfestigkeit: 30 kV/mm (DIN 53481)

Lichtdurchlässigkeit: 92 % (Plattendicke 2 mm)

Keine zusätzlichen Informationen verfügbar.
Artikel Bild Stärke
mm
Toleranz
mm
Abmessung
mm
Einheit
Stück
Preis
Euro*
Kaufen
301824
2 ±0,60 500 x 500 1 108,00
301825
2 ±0,60 1000 x 1000 1 246,00
301826
3 ±0,70 500 x 500 1 118,00
301827
3 ±0,70 1000 x 1000 1 273,00
301828
4 ±0,80 500 x 500 1 138,00
301829
4 ±0,80 1000 x 1000 1 320,00
301830
5 ±0,90 500 x 500 1 153,00
301831
5 ±0,90 1000 x 1000 1 343,00
301832
6 ±1,00 500 x 500 1 162,00
301833
6 ±1,00 1000 x 1000 1 375,00
301834
8 ±1,20 500 x 500 1 192,00
301835
8 ±1,20 1000 x 1000 1 421,00
301836
10 ±1,40 500 x 500 1 215,00
301837
10 ±1,40 1000 x 1000 1 439,00
301838
15 ±1,90 500 x 500 1 269,00
301839
15 ±1,90 1000 x 1000 1 488,00
301940
20 ±2,00 500 x 500 1 316,00
301941
25 ±2,50 500 x 500 1 395,00
301942
30 ±3,40 500 x 500 1 537,00
301943
40 ±3,90 500 x 500 1 761,00
301944
50 ±4,00 500 x 500 1 951,00
