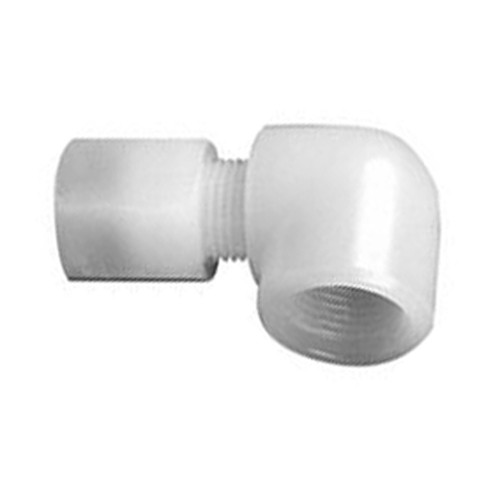

Winkel-Rohrverbinder mit Innengewinde aus PFA

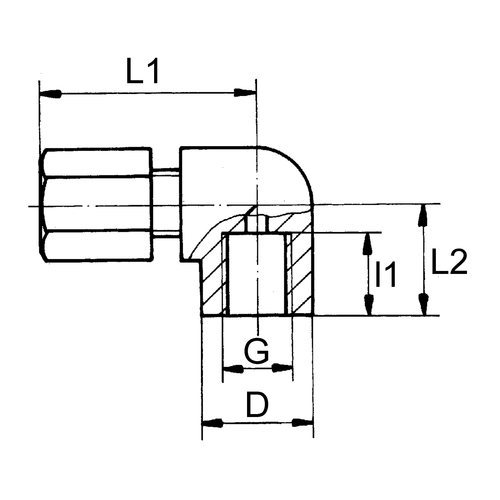

| Artikel |
Rohr Außen-Ø mm
|
Rohr Außen-Ø Zoll
|
Innengewinde |
D mm
|
l1 mm
|
L1 mm
|
L2 mm
|
Einheit Stück
|
Preis Euro* |
Kaufen |
|---|---|---|---|---|---|---|---|---|---|---|
| 304749 | 4 | G 1/8" | 13 | 10 | 26 | 17 | 1 | 83,00 | ||
| 304750 | 4 | G 1/4" | 20 | 15 | 26 | 20 | 1 | 90,00 | ||
| 304751 | 4 | G 3/8" | 20 | 15 | 28 | 20 | 1 | 107,00 | ||
| 304752 | 4 | G 1/2" | 25 | 16 | 31 | 20 | 1 | 120,00 | ||
| 304753 | 6 | G 1/8" | 15 | 10 | 36 | 17 | 1 | 90,00 | ||
| 304754 | 6 | G 1/4" | 20 | 15 | 39 | 20 | 1 | 93,00 | ||
| 304755 | 6 | G 3/8" | 25 | 15 | 42 | 20 | 1 | 128,00 | ||
| 304756 | 6 | G 1/2" | 30 | 16 | 44 | 20 | 1 | 138,00 | ||
| 304757 | 8 | G 1/8" | 15 | 10 | 36 | 17 | 1 | 101,00 | ||
| 304758 | 8 | G 1/4" | 20 | 15 | 39 | 20 | 1 | 107,00 | ||
| 304759 | 8 | G 3/8" | 25 | 15 | 42 | 20 | 1 | 134,00 | ||
| 304760 | 8 | G 1/2" | 30 | 16 | 44 | 20 | 1 | 158,00 | ||
| 304761 | 10 | G 1/8" | 20 | 10 | 42 | 20 | 1 | 107,00 | ||
| 304762 | 10 | G 1/4" | 20 | 15 | 42 | 23 | 1 | 114,00 | ||
| 304763 | 10 | G 3/8" | 25 | 15 | 45 | 23 | 1 | 144,00 | ||
| 304764 | 10 | G 1/2" | 30 | 16 | 47 | 23 | 1 | 162,00 | ||
| 304765 | 12 | G 1/8" | 20 | 10 | 45 | 20 | 1 | 114,00 | ||
| 304766 | 12 | G 1/4" | 20 | 15 | 45 | 23 | 1 | 125,00 | ||
| 304767 | 12 | G 3/8" | 25 | 15 | 48 | 23 | 1 | 152,00 | ||
| 304768 | 12 | G 1/2" | 30 | 16 | 50 | 23 | 1 | 168,00 | ||
| 304769 | 14 | G 1/8" | 25 | 10 | 48 | 20 | 1 | 128,00 | ||
| 304770 | 14 | G 1/4" | 25 | 15 | 48 | 23 | 1 | 141,00 | ||
| 304771 | 14 | G 3/8" | 25 | 15 | 48 | 23 | 1 | 168,00 | ||
| 304772 | 14 | G 1/2" | 30 | 16 | 50 | 23 | 1 | 195,00 | ||
| 304773 | 1/8" | G 1/8" | 13 | 10 | 26 | 17 | 1 | 83,00 | ||
| 304774 | 1/8" | G 1/4" | 20 | 15 | 26 | 20 | 1 | 90,00 | ||
| 304775 | 1/8" | G 3/8" | 20 | 15 | 28 | 20 | 1 | 107,00 | ||
| 304776 | 1/8" | G 1/2" | 25 | 16 | 31 | 20 | 1 | 120,00 | ||
| 304777 | 1/4" | G 1/8" | 15 | 10 | 36 | 17 | 1 | 90,00 | ||
| 304778 | 1/4" | G 1/4" | 20 | 15 | 39 | 20 | 1 | 93,00 | ||
| 304779 | 1/4" | G 3/8" | 25 | 15 | 42 | 20 | 1 | 128,00 | ||
| 304780 | 1/4" | G 1/2" | 30 | 16 | 44 | 20 | 1 | 138,00 | ||
| 304781 | 3/8" | G 1/8" | 20 | 10 | 42 | 20 | 1 | 107,00 | ||
| 304782 | 3/8" | G 1/4" | 20 | 15 | 42 | 23 | 1 | 114,00 | ||
| 304783 | 3/8" | G 3/8" | 25 | 15 | 45 | 23 | 1 | 149,00 | ||
| 304784 | 3/8" | G 1/2" | 30 | 16 | 47 | 23 | 1 | 162,00 | ||
| 304785 | 1/2" | G 1/8" | 20 | 10 | 45 | 20 | 1 | 114,00 | ||
| 304786 | 1/2" | G 1/4" | 20 | 15 | 45 | 23 | 1 | 125,00 | ||
| 304787 | 1/2" | G 3/8" | 25 | 15 | 48 | 23 | 1 | 152,00 | ||
| 304788 | 1/2" | G 1/2" | 30 | 16 | 50 | 23 | 1 | 168,00 | ||
