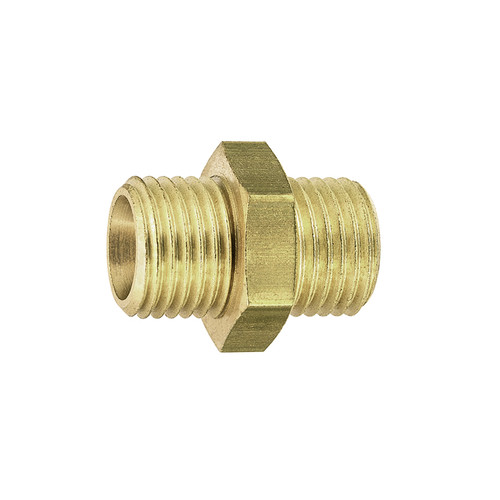

Doppelnippel aus Messing

Produktspezifikation Doppelnippel beidseitig mit G-Außengewinde (zylindrisch) und... mehr

Produktspezifikation

Doppelnippel beidseitig mit G-Außengewinde (zylindrisch) und Innenkonus (37°).

Keine zusätzlichen Informationen verfügbar.

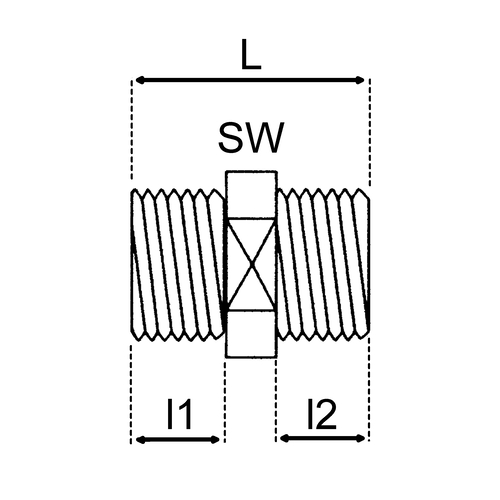

Artikel Bild Außengewinde (A) Außengewinde (B) NW
mm
l1
mm
l2
mm
L
mm
SW
mm
Einheit
Stück
Preis
Euro*
Kaufen
331087
G 1/8" G 1/8" 5 7 7 19 13 10 37,00
331088
G 1/8" G 1/4" 5 7 9 21 17 10 45,00
331089
G 1/4" G 1/4" 6 9 9 23 17 10 45,00
331090
G 1/4" G 3/8" 7,5 9 10 24 19 10 54,00
331091
G 1/4" G 1/2" 7,5 9 12,5 27 24 10 90,00
331092
G 3/8" G 3/8" 9 9 9 23 19 10 54,00
331093
G 3/8" G 1/2" 9 10 12,5 28 24 10 80,00
331094
G 1/2" G 1/2" 13 12 12 30 22 10 84,00
