FEP Chemical Tubing

Application area Conveyance of fluids of all kinds and quality in laboratories and pilot... more

Application area

Conveyance of fluids of all kinds and quality in laboratories and pilot plants as well as in small production units, also under rough environmental conditions.

Precision tubing connections for applications in the areas of precision machine engineering, medical, biological, and chemical research, biotechnology, lab automatization, and analytical technology.

Product specification

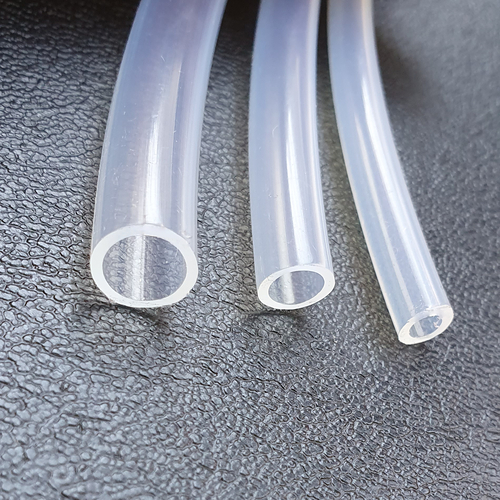

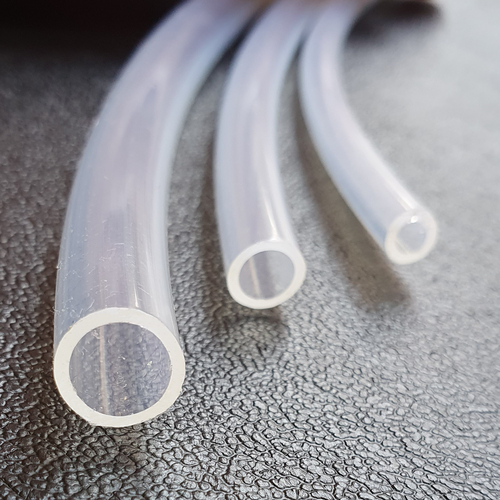

Flexible fluorocarbon tube in well-adjusted dimensions.

High thermal and mechanical stability, suitable for compressed-air couplings (e.g. with ferrule and hollow screw).

Chemically resistant and biocompatible, free of extractable constituents.

Autoclavable and chemically sterilizable.

The tubing meets the FDA guidelines GRF 21.121.2555.

Small flow resistance and only slight tendency to adhesion of solid matter due to smooth inner surface with antiadhesive properties.

Electrically non-conducting, resistant to aging even under unfavourable environmental conditions such as moisture, vapours of solvents and acids, radioactive radiation, and weather effects.

Technical specification

Material: FEP (fluoroethylene-propylene)

Colour: transparent to clear

Shore hardness D: 53° ±3°

Temperature range: -170 to +200 °C

Softening temperature: +252 to +260 °C

Density: 2.14 g/cm³

Water absorption: <0.01 %

Voltage strength: 5.5 kV/mm

Sterilization: autoclavable (+121 °C); hot air (+160 °C); gas (ethylene oxide); gamma-rays

Close menu

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	max. Betr.-Druck¹ bar	Einheit m	Price Euro*
45280	0,8	1,6	20	1,5	29.00
45281	0,8	1,6	20	3	49.00
45282	0,8	1,6	20	6	91.00
45283	0,8	2,4	34	1,5	41.00
45284	0,8	2,4	34	3	70.00
45285	0,8	2,4	34	6	122.00
10196	1,5	3	20	3	78.00
10197	1,5	3	20	9	198.00
45286	1,6	3,2	20	1,5	41.00
10234	1,6	3,2	20	3	63.00
45288	1,6	3,2	20	6	122.00
10235	1,6	3,2	20	9	159.00
10198	2	4	20	3	66.00
10199	2	4	20	9	157.00
45289	2,2	3	9	1,5	41.00
45290	2,2	3	9	3	70.00
45291	2,2	3	9	6	122.00
45295	2,4	3,2	8	1,5	41.00
45296	2,4	3,2	8	3	70.00
45297	2,4	3,2	8	6	122.00
45292	2,4	4	14	1,5	41.00
45293	2,4	4	14	3	70.00
45294	2,4	4	14	6	122.00
10226	2,5	4	12	3	63.00
10227	2,5	4	12	9	159.00
45301	3,2	4,8	11	1,5	41.00
45302	3,2	4,8	11	3	70.00
45303	3,2	4,8	11	6	122.00
10200	3,2	6,4	20	3	84.00
10201	3,2	6,4	20	9	202.00
45307	3,8	4,8	6,5	1,5	41.00
45308	3,8	4,8	6,5	3	70.00
45309	3,8	4,8	6,5	6	122.00
10228	4	6	12	3	88.00
10229	4	6	12	9	226.00
10236	4	6,4	14	3	80.00
10237	4	6,4	14	9	193.00
45310	4,2	5,2	6	1,5	41.00
45311	4,2	5,2	6	3	70.00
45312	4,2	5,2	6	6	122.00
45313	4,8	6,4	9	1,5	55.00
45314	4,8	6,4	9	3	91.00
45315	4,8	6,4	9	6	162.00
10230	6	8	9	3	110.00
10231	6	8	9	9	272.00
45316	6,4	7,9	7	1,5	66.00
45317	6,4	7,9	7	3	110.00
45318	6,4	7,9	7	6	194.00
10238	6,4	9,5	12	3	166.00
10239	6,4	9,5	12	9	387.00
45319	7,9	9,5	6	1,5	66.00
45320	7,9	9,5	6	3	110.00
45321	7,9	9,5	6	6	194.00
10232	8	10	7	3	119.00
10233	8	10	7	9	283.00
45324	9,5	11,1	7	6	226.00
10240	9,5	12,7	9	3	186.00
10241	9,5	12,7	9	9	428.00
45331	10	12	9	3	143.00
45332	10	12	9	9	309.00
45325	11,1	12,7	4,5	1,5	91.00
45326	11,1	12,7	4,5	3	148.00
45327	11,1	12,7	4,5	6	236.00
10202	12	14	5	3	238.00
10203	12	14	5	9	523.00
45328	12,7	14,3	4	1,5	157.00
45329	12,7	14,3	4	3	249.00
45330	12,7	14,3	4	6	397.00
