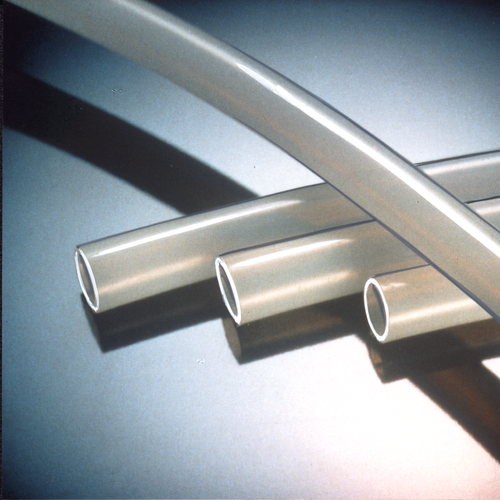

PP Chemical Tubing - Standard

Product specification Very good dielectric properties Good temperature resistance Extremely... more

Product specification

Very good dielectric properties

Good temperature resistance

Extremely good impact and notch impact strength

Thermoforming possible (e.g. for bending-off)

Good chemical resistance to oils, gasoline, and acids, at room temperature to most solvents. Unsuitable for permanent use with halogenated hydrocarbons

Technical specification

Material: PP (polypropylene)

Colour: translucent

Shore hardness D: 80°

Temperature range: -40 to +120 °C, for a short time +145 °C

Flammability rating: UL 94 HB

Regulations: FDA 21 CFR §177.1520

No additional information available.
Item Image Inside Ø
mm
Außen-Ø
mm
max. Betr.-Druck1
bar
Einheit
m
Price
Euro*
Buy
19067
1,6 3,2 66 5 27.00
19068
1,6 3,2 66 15 74.00
19079
3,2 6,4 66 5 36.00
19080
3,2 6,4 66 15 91.00
19061
4,8 6,4 19 5 42.00
19062
4,8 6,4 19 15 107.00
19063
4,8 7,9 20 5 83.00
19064
4,8 7,9 20 10 151.00
19065
6,4 9,5 19 5 94.00
19066
6,4 9,5 19 10 171.00
19071
9,5 12,7 14 5 121.00
19072
9,5 12,7 14 10 225.00
19073
12,7 15,9 12 5 127.00
19074
12,7 15,9 12 10 234.00
19075
16 19 10 5 135.00
19076
16 19 10 10 255.00
19077
19 25,4 3 1 33.00
