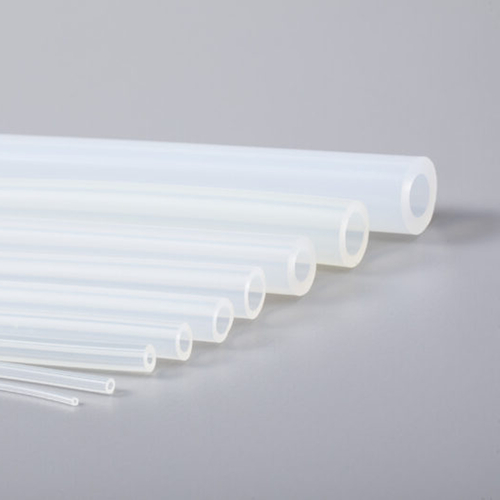

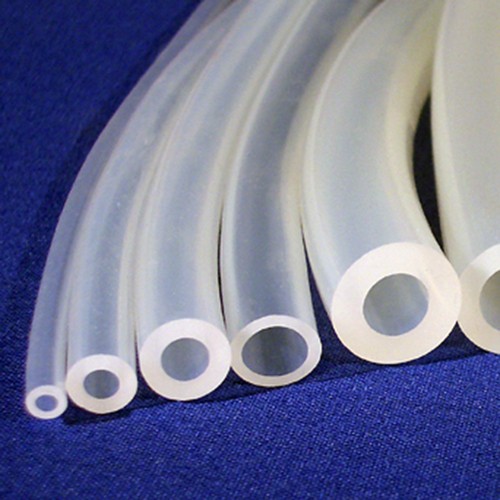

Silicone Chemical Tubing - Standard

Application area Laboratory technology, medical engineering, process engineering, process... more

Application area

Laboratory technology, medical engineering, process engineering, process technology, pharmaceutical technology, chemical technology

Product specification

Conveying tubing

Very good resistance to temperature

Excellent resistance to hot air

Highest flexibility in cold

Good chemical resistance

Very good resistance to ozone, aging, and weather

Very good dielectric properties

Physiologically safe

Free from natural rubber latex, dry natural rubber, or synthetic latex

Antiadhesive surface

Very good elastic behaviour

Highest permeability to gas

Technical specification

Material: Silicone (silicone rubber)

Colour: translucent

Shore hardness A: 60° ±5° (DIN 53505)

Temperature range: -60 to +200 °C; for a short period +250 °C

Density: 1.17 ±0.02 g/cm3 (ISO 1183-1 A)

Resistance to hot air: up to +200 °C

Sterilization: steam (+134 °C)

Elongation at break: 480 % (DIN 53504-S1)

Tearing strength: 10.0 N/mm2 (DIN 53504-S1)

Tear propagation resistance: 35 N/mm (ASTM D624 B)

Compression set: 33 % at +175 °C / 22 h (ISO 815-B)

Tolerance: DIN ISO 3302-1 E2

No additional information available.
Item Image Inside Ø
mm
Außen-Ø
mm
Wandstärke
mm
Einheit
m
Price
Euro*
Buy
92011
1 3 1 3 33.00
48229
1 3 1 10 89.00
92012
1 3 1 15 112.00
92013
1 4 1,5 3 67.00
48230
1 4 1,5 10 159.00
92014
1 4 1,5 15 198.00
92015
1 6 2,5 3 54.00
48231
1 6 2,5 10 128.00
92016
1 6 2,5 15 151.00
92017
1,5 3,5 1 3 33.00
48232
1,5 3,5 1 10 89.00
92018
1,5 3,5 1 15 112.00
92019
1,5 5,5 2 3 34.00
48233
1,5 5,5 2 10 90.00
92020
1,5 5,5 2 15 115.00
92021
2 3 0,5 3 33.00
48234
2 3 0,5 10 89.00
92022
2 3 0,5 15 112.00
931171
2 4 1 3 33.00
931172
2 4 1 25 186.00
92023
2 5 1,5 3 33.00
48235
2 5 1,5 10 89.00
92024
2 5 1,5 15 112.00
92025
2 6 2 3 37.00
48236
2 6 2 10 106.00
92026
2 6 2 15 122.00
92027
3 4 0,5 3 33.00
48237
3 4 0,5 10 89.00
92028
3 4 0,5 15 112.00
941553
3 5 1 3 35.00
941554
3 5 1 10 96.00
941555
3 5 1 15 126.00
92029
3 6 1,5 3 37.00
48238
3 6 1,5 10 99.00
92030
3 6 1,5 15 130.00
92031
3 7 2 3 40.00
48239
3 7 2 10 103.00
92032
3 7 2 15 130.00
92033
4 5 0,5 3 33.00
48240
4 5 0,5 10 89.00
92034
4 5 0,5 15 112.00
941551
4 6 1 3 47.00
339365
4 6 1 10 111.00
941552
4 6 1 25 241.00
92035
4 7 1,5 3 54.00
48241
4 7 1,5 10 126.00
92036
4 7 1,5 15 158.00
92037
4 8 2 3 60.00
48242
4 8 2 10 136.00
92038
4 8 2 15 170.00
92039
5 6 0,5 3 33.00
48243
5 6 0,5 10 89.00
92040
5 6 0,5 15 112.00
92041
5 8 1,5 3 50.00
48244
5 8 1,5 10 132.00
92042
5 8 1,5 15 167.00
92043
5 9 2 3 51.00
48245
5 9 2 10 134.00
92044
5 9 2 15 170.00
92045
6 8 1 3 43.00
48246
6 8 1 10 110.00
92046
6 8 1 15 126.00
92047
6 9 1,5 3 48.00
48247
6 9 1,5 10 128.00
92048
6 9 1,5 15 161.00
92049
6 10 2 3 60.00
48248
6 10 2 10 159.00
92050
6 10 2 15 191.00
92051
6 11 2,5 3 79.00
48249
6 11 2,5 10 256.00
92052
6 11 2,5 15 319.00
92053
6 12 3 3 74.00
48250
6 12 3 10 214.00
92054
6 12 3 15 258.00
92055
7 9 1 3 42.00
48251
7 9 1 10 125.00
92056
7 9 1 15 141.00
92057
7 10 1,5 3 45.00
48252
7 10 1,5 10 135.00
92058
7 10 1,5 15 156.00
92059
7 11 2 3 71.00
48253
7 11 2 10 179.00
92060
7 11 2 15 224.00
92061
7 12 2,5 3 75.00
48254
7 12 2,5 10 193.00
92062
7 12 2,5 15 236.00
92063
7 13 3 3 87.00
48255
7 13 3 10 236.00
92064
7 13 3 15 303.00
92065
8 10 1 3 57.00
48256
8 10 1 10 148.00
92066
8 10 1 15 185.00
92067
8 11 1,5 3 64.00
48257
8 11 1,5 10 179.00
92068
8 11 1,5 15 224.00
92069
8 12 2 3 70.00
48258
8 12 2 10 178.00
92070
8 12 2 15 221.00
92071
8 13 2,5 3 69.00
48259
8 13 2,5 10 206.00
92072
8 13 2,5 15 254.00
92073
8 14 3 3 99.00
48260
8 14 3 10 283.00
92074
8 14 3 15 346.00
92075
9 11 1 3 58.00
48261
9 11 1 10 158.00
92076
9 11 1 15 197.00
92077
9 12 1,5 3 66.00
48262
9 12 1,5 10 175.00
92078
9 12 1,5 15 219.00
92079
9 13 2 3 75.00
48263
9 13 2 10 190.00
92080
9 13 2 15 237.00
92081
9 14 2,5 3 78.00
48264
9 14 2,5 10 229.00
92082
9 14 2,5 15 279.00
92083
9 15 3 3 138.00
48265
9 15 3 10 368.00
92084
9 15 3 15 478.00
92085
10 12 1 3 63.00
48266
10 12 1 10 167.00
92086
10 12 1 15 205.00
92087
10 14 2 3 70.00
48267
10 14 2 10 198.00
92088
10 14 2 15 242.00
92089
10 15 2,5 3 87.00
48268
10 15 2,5 10 247.00
92090
10 15 2,5 15 300.00
92091
10 16 3 3 102.00
48269
10 16 3 10 293.00
92092
10 16 3 15 360.00
92093
12 14 1 1 24.00
92094
12 14 1 5 94.00
48270
12 14 1 10 162.00
92095
12 16 2 1 36.00
92096
12 16 2 5 119.00
48271
12 16 2 10 206.00
92097
12 18 3 1 37.00
92098
12 18 3 5 151.00
48272
12 18 3 10 263.00
92099
14 16 1 1 37.00
92100
14 16 1 5 151.00
48273
14 16 1 10 263.00
92101
14 18 2 1 37.00
92102
14 18 2 5 151.00
48274
14 18 2 10 263.00
92103
14 20 3 1 40.00
92104
14 20 3 5 158.00
48275
14 20 3 10 273.00
92105
15 17 1 1 37.00
92106
15 17 1 5 150.00
48276
15 17 1 10 263.00
92107
15 19 2 1 37.00
92108
15 19 2 5 151.00
48277
15 19 2 10 263.00
92109
15 21 3 1 45.00
92110
15 21 3 5 193.00
48278
15 21 3 10 315.00
92111
16 18 1 1 37.00
92112
16 18 1 5 151.00
48279
16 18 1 10 263.00
92113
16 20 2 1 37.00
92114
16 20 2 5 151.00
48280
16 20 2 10 263.00
92115
16 22 3 1 49.00
92116
16 22 3 5 208.00
48281
16 22 3 10 338.00
92117
16 24 4 1 67.00
92118
16 24 4 5 244.00
14468
16 24 4 10 417.00
92119
18 22 2 1 58.00
92120
18 22 2 5 231.00
14469
18 22 2 10 417.00
92121
18 24 3 1 58.00
92122
18 24 3 5 231.00
14470
18 24 3 10 417.00
92123
18 26 4 1 73.00
92124
18 26 4 5 264.00
14471
18 26 4 10 454.00
92125
18 28 5 1 76.00
92126
18 28 5 5 278.00
14472
18 28 5 10 506.00
92127
20 24 2 1 72.00
92128
20 24 2 5 274.00
14473
20 24 2 10 494.00
92129
20 26 3 1 76.00
92130
20 26 3 5 285.00
14474
20 26 3 10 510.00
92131
20 28 4 1 80.00
92132
20 28 4 5 300.00
14475
20 28 4 10 535.00
92133
20 30 5 1 84.00
92134
20 30 5 5 340.00
14476
20 30 5 10 632.00
92135
22 28 3 1 76.00
92136
22 28 3 5 285.00
14477
22 28 3 10 510.00
92137
22 30 4 1 84.00
92138
22 30 4 5 330.00
14478
22 30 4 10 572.00
92139
25 31 3 1 84.00
92140
25 31 3 5 330.00
14479
25 31 3 10 572.00
92141
25 33 4 1 88.00
92142
25 33 4 5 346.00
14480
25 33 4 10 600.00
340793
25 35 5 5 385.00
340794
25 35 5 10 642.00
340795
25 37 6 5 424.00
340796
25 37 6 10 708.00
340797
30 40 5 5 445.00
340798
30 40 5 10 743.00
340799
32 36 2 5 286.00
340800
32 36 2 10 494.00
340801
35 45 5 5 490.00
340802
35 45 5 10 820.00
340803
40 50 5 5 560.00
340804
40 50 5 10 913.00
