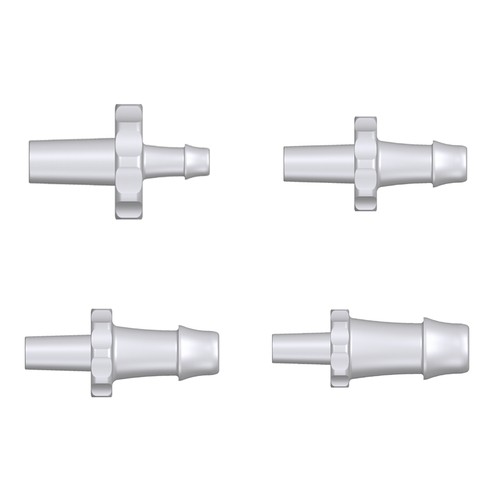

Luer-Tubing Adapter (Male) for Flexible Tubing

Luer-Tubing Adapter (Male) for Flexible Tubing
Product specification Precision adapters, male Luer to inched hose nozzles more

Product specification

Precision adapters, male Luer to inched hose nozzles

General Information PA 6.6 (polyamide 6.6, nylon) Colour: white Temperature range:... more

General Information

PA 6.6 (polyamide 6.6, nylon)

Colour: white

Temperature range: -40 to +115 °C

Max. operating pressure: 3 bar at +20 °C

Yellowing and reduction of strength depending on temperature and interaction time

Regulatory compliance to RoHS, BPA-free, DEHP-free, BSE/ADI-free

Good sterilization with autoclave, ethylene oxide and gamma radiation (may discolour to brownish hue)

PP (polypropylene)

Colour: natural

Temperature range: -5 to +120 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, FDA 21 CFR 177.1520, RoHS, BPA, DEHP, ADI-free

Good sterilization with ethylene oxide and gamma radiation (bis 6 Mrads), autoclave limited to +121 °C for 20 min.

PC (polycarbonate)

Colour: transparent-clear

Temperature range: -30 to +110 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, ISO 10993, FDA 21 CFR 177.1580, RoHS, DEHP

Good sterilization with ethylene oxide and gamma radiation (excellent up to 10 Mrads with minor loss of physical properties), autoclave not recommended

RSPC (Radiation Stable Polycarbonate)

Colour: transparent-violet

Temperature range: -30 to +110 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to ISO 10993, RoHS, DEHP

Good sterilization with ethylene oxide and gamma radiation (excellent up to 10 Mrads with minor loss of physical properties; light violet hue turns clear upon sterilization), autoclave not recommended

No FDA or USP clearance, not BSE / ADI-free!

Item Image Tubing inside Ø
inch
Schlauch Innen-Ø
mm
Werkstoff Einheit
Stück
Price
Euro*
Buy

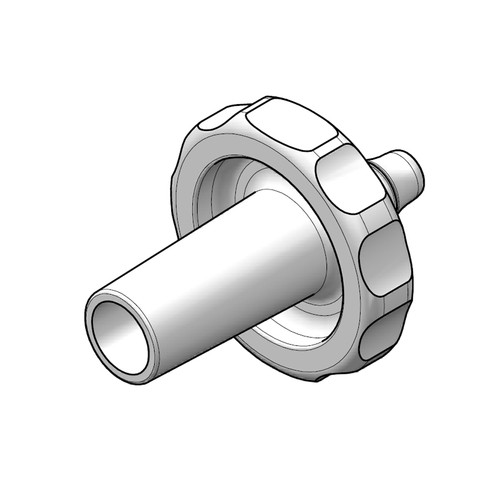

158440
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
1/16" 1,6 PA 6.6 10 34.00

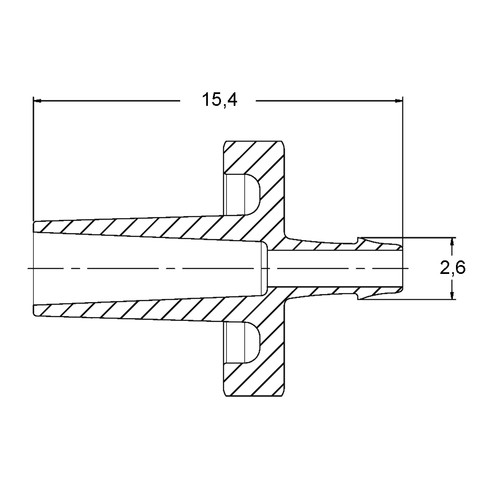

158441
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
1/16" 1,6 PP 10 39.00

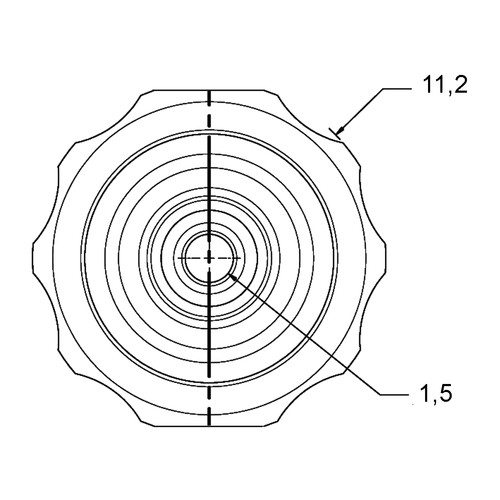

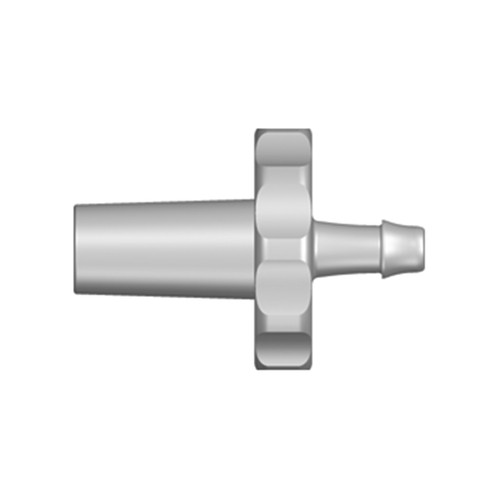

158442
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
1/16" 1,6 PC 10 44.00
158443
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
1/16" 1,6 RSPC 10 44.00
158444
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
3/32" 2,4 PA 6.6 10 34.00

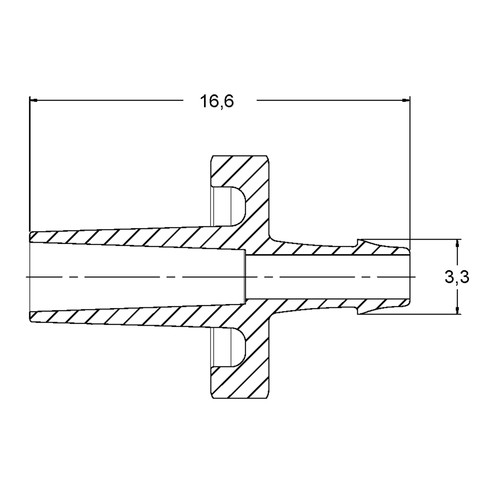

158445
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
3/32" 2,4 PP 10 39.00

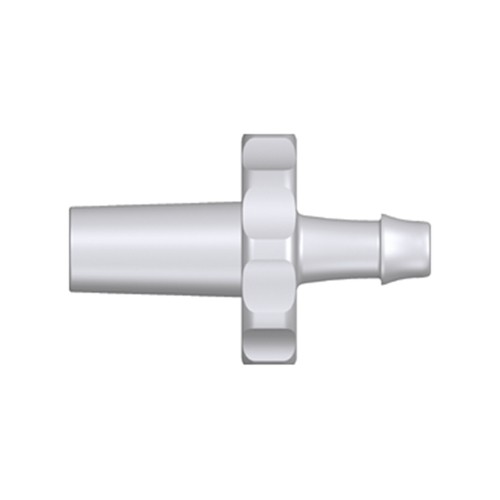

158446
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
3/32" 2,4 PC 10 44.00

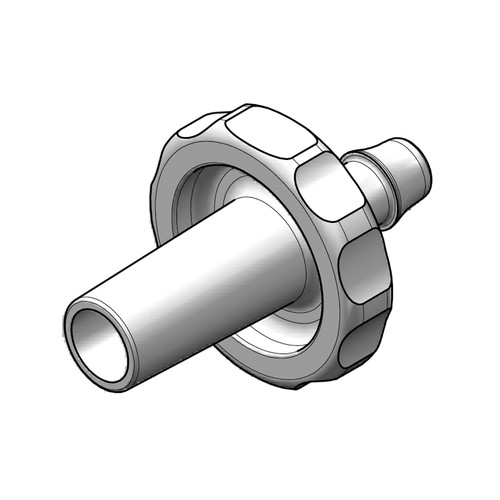

158447
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
3/32" 2,4 RSPC 10 44.00

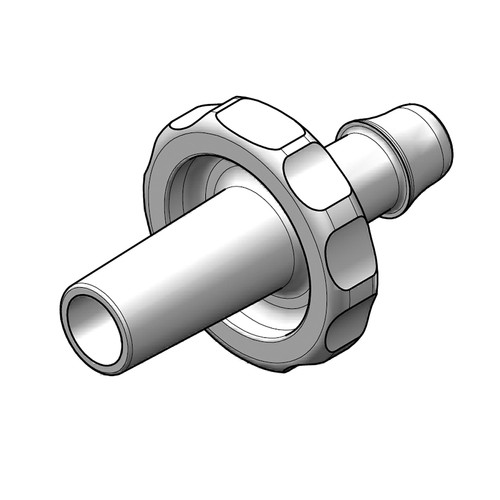

158448
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
1/8" 3,2 PA 6.6 10 34.00

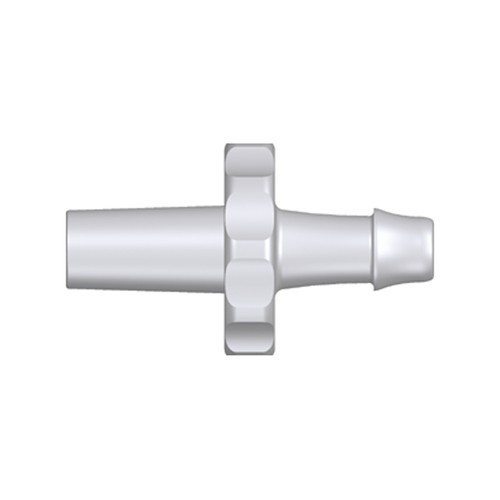

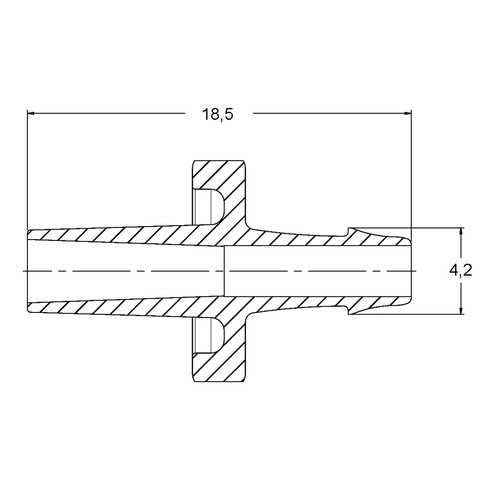

158450
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
1/8" 3,2 PC 10 44.00
158452
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
5/32" 4 PA 6.6 10 39.00

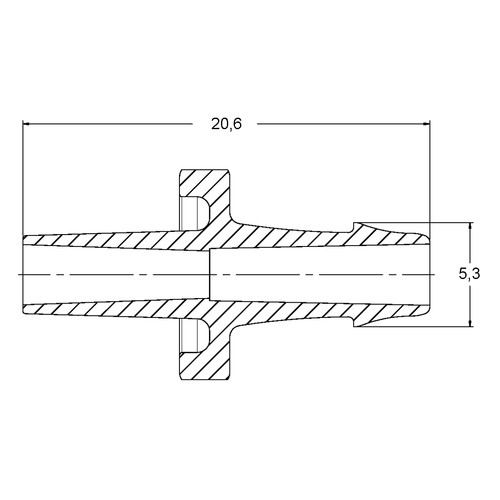

158453
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
5/32" 4 PP 10 44.00

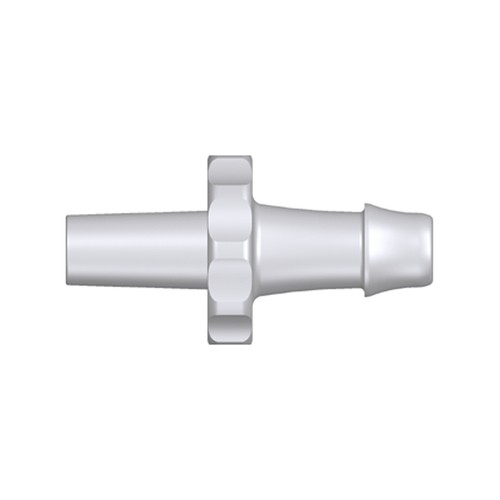

158454
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
5/32" 4 PC 10 50.00

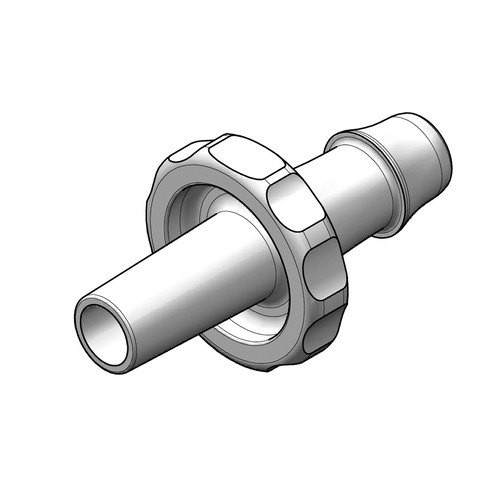

158455
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
5/32" 4 RSPC 10 50.00
158456
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
3/16" 4,8 PA 6.6 10 39.00

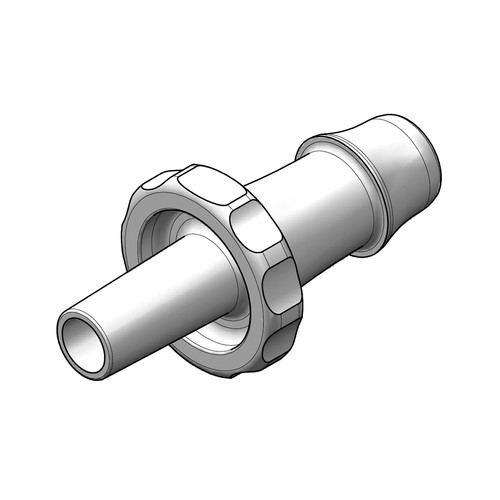

158457
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
3/16" 4,8 PP 10 44.00

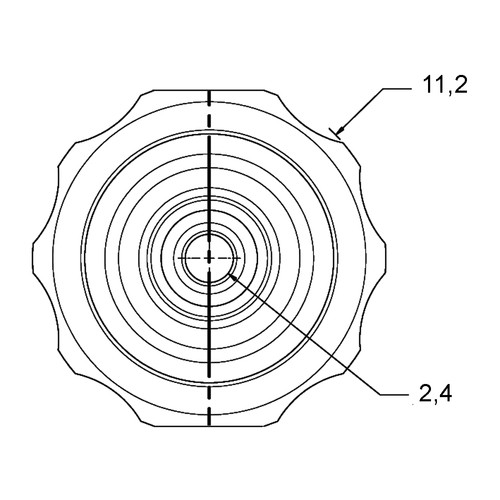

158458
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
3/16" 4,8 PC 10 50.00

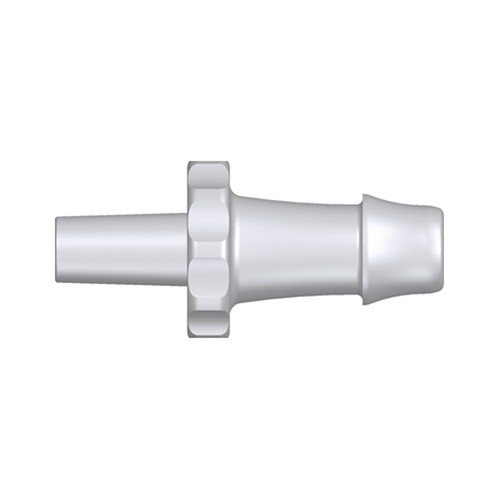

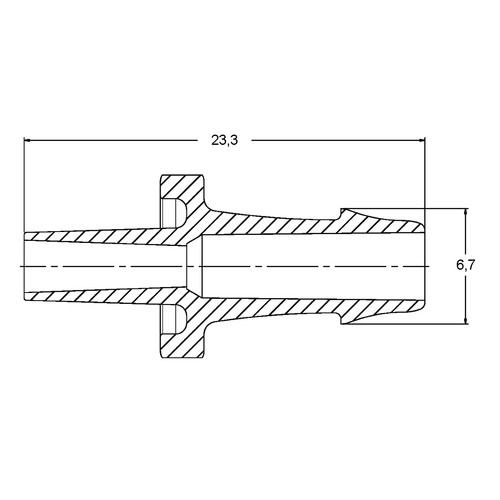

158459
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
3/16" 4,8 RSPC 10 50.00

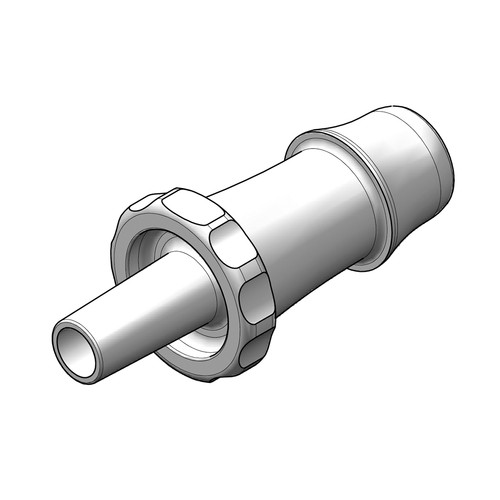

158460
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
1/4" 6,4 PA 6.6 10 39.00

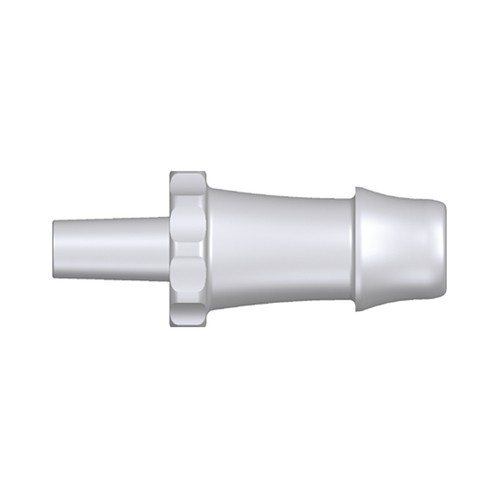

158461
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
1/4" 6,4 PP 10 44.00
158462
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
1/4" 6,4 PC 10 50.00

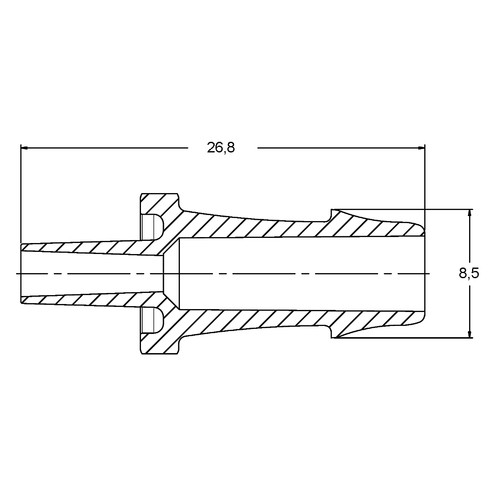

158463
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
Luer-Tubing Adapter (Male) for Flexible Tubing Luer-Tubing Adapter (Male) for Flexible Tubing
1/4" 6,4 RSPC 10 50.00
