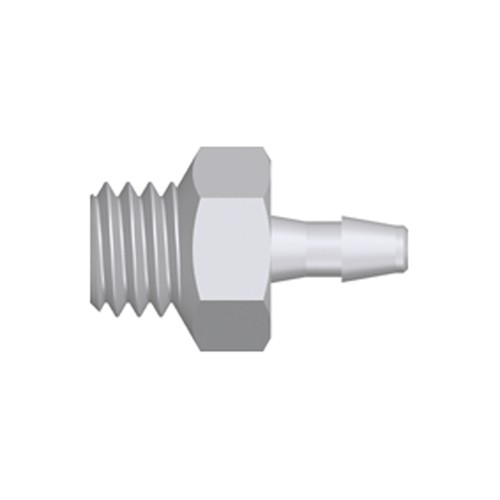

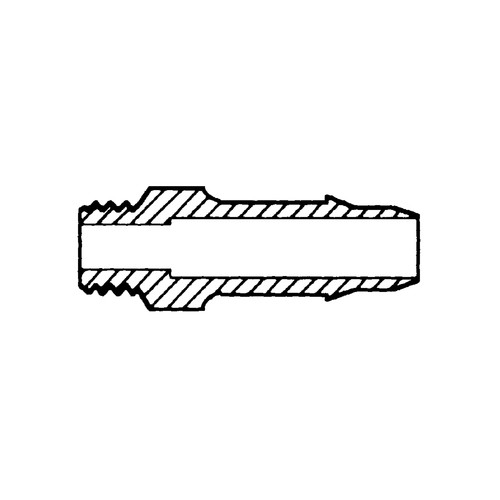

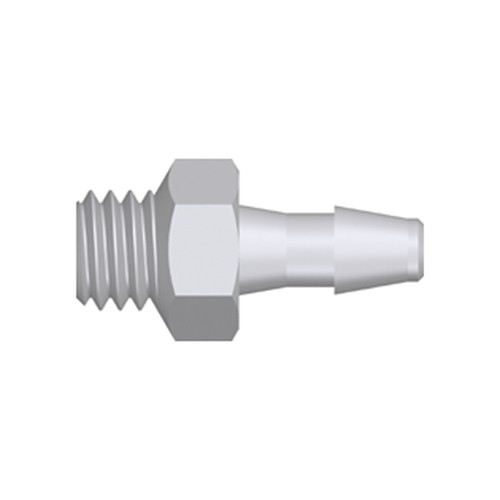

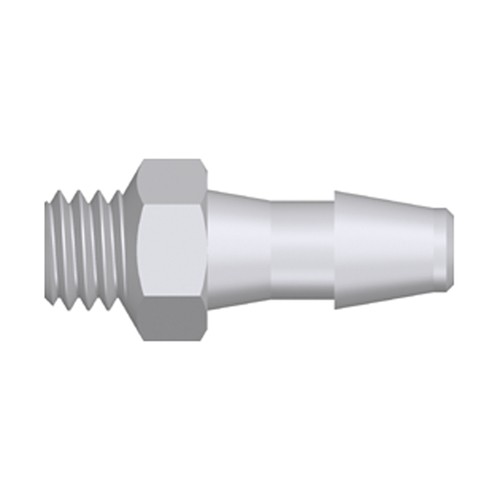

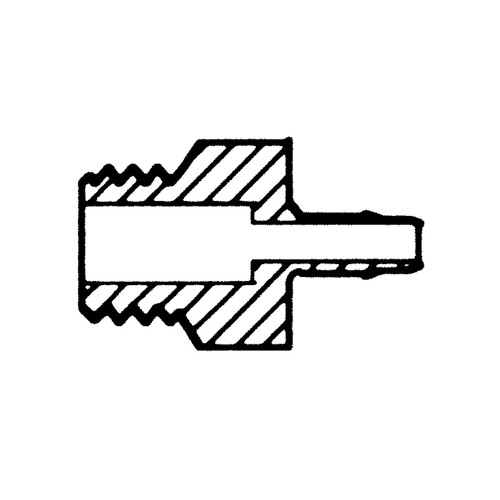

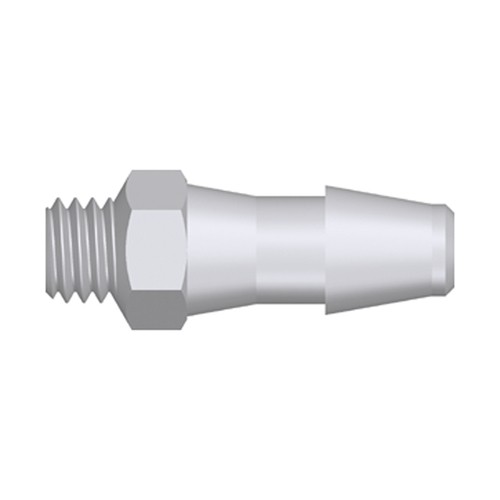

Mini Screw-in Connector with male thread UNF 10-32 - short

Mini Screw-in Connector with male thread UNF 10-32 - short
Product specification Tubing connection on one side, short UNF 10-32 thread (length 3.2 mm)... more

Product specification

Tubing connection on one side, short UNF 10-32 thread (length 3.2 mm) on the other side, for flexible tubing

General Information PA 6.6 (polyamide 6.6, nylon) Colour: white Temperature... more

General Information

PA 6.6 (polyamide 6.6, nylon)

Colour: white

Temperature range: -40 to +115 °C

Max. operating pressure: 3 bar at +20 °C

Yellowing and reduction of strength depending on temperature and interaction time

Regulatory compliance to RoHS, BPA, DEHP

Good sterilization with autoclave, ethylene oxide and gamma radiation (may discolour to brownish hue)

PP (polypropylene)

Colour: natural

Temperature range: -5 to +120 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, FDA 21 CFR 177.1520, RoHS, BPA, DEHP, ADI-free

Good sterilization with ethylene oxide and gamma radiation (bis 6 Mrads; may discolor the material with repeated sterilization), autoclave limited to short term +121 °C for 20 min.

PVDF (Polyvinylidene fluoride)

Colour: natural

Temperature range: -40 to +140 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, FDA 21 CFR 177.2510, RoHS, BPA-free, DEHP-free, ADI-free

PVDF is non-toxic and can be used in the food industry without hesitation. According to FDA (USA), the material is physiologically safe. It is as unsuitable as glass for propagation and growing of microorganisms.

Excellent sterilization with autoclave, ethylene oxide and gamma radiation (will discolour to brownish hue)

Item Image Tubing inside Ø
mm
Außengewinde Werkstoff Farbe Einheit
Stück
Price
Euro*
Buy
28950
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
1,6 UNF 10-32 PA 6.6 weiß 20 39.00
28951
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
1,6 UNF 10-32 PA 6.6 schwarz 20 39.00
28952
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
1,6 UNF 10-32 PA 6.6 rot 20 39.00
28953
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
1,6 UNF 10-32 PA 6.6 grün 20 39.00
28954
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
1,6 UNF 10-32 PA 6.6 blau 20 39.00
28956
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
1,6 UNF 10-32 PVDF natur 10 56.00
28957
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
2,4 UNF 10-32 PA 6.6 weiß 20 39.00
28958
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
2,4 UNF 10-32 PA 6.6 schwarz 20 39.00
28959
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
2,4 UNF 10-32 PA 6.6 rot 20 39.00
28960
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
2,4 UNF 10-32 PA 6.6 grün 20 39.00
28961
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
2,4 UNF 10-32 PA 6.6 blau 20 39.00
28962
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
2,4 UNF 10-32 PP natur 15 39.00
28963
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
2,4 UNF 10-32 PVDF natur 10 56.00
28964
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
3,2 UNF 10-32 PA 6.6 weiß 20 39.00
28965
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
3,2 UNF 10-32 PA 6.6 schwarz 20 39.00
28969
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
3,2 UNF 10-32 PP natur 15 39.00
28970
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
3,2 UNF 10-32 PVDF natur 10 56.00
28974
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
4 UNF 10-32 PA 6.6 grün 20 39.00
28977
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
4 UNF 10-32 PVDF natur 10 56.00
