Luer-Lock Tubing Adapter (Male) for Flexible Tubing

Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Product specification Precision adapters, male Luer-lock to inched hose nozzles more

Product specification

Precision adapters, male Luer-lock to inched hose nozzles

General Information PA 6.6 (polyamide 6.6, nylon) Colour: white Temperature range:... more

General Information

PA 6.6 (polyamide 6.6, nylon)

Colour: white

Temperature range: -40 to +115 °C

Max. operating pressure: 3 bar at +20 °C

Yellowing and reduction of strength depending on temperature and interaction time

Regulatory compliance to RoHS, BPA-free, DEHP-free, BSE/ADI-free

Good sterilization with autoclave, ethylene oxide and gamma radiation (may discolour to brownish hue)

PP (polypropylene)

Colour: natural

Temperature range: -5 to +120 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, FDA 21 CFR 177.1520, RoHS, BPA, DEHP, ADI-free

Good sterilization with ethylene oxide and gamma radiation (bis 6 Mrads), autoclave limited to +121 °C for 20 min.

PC (polycarbonate)

Colour: transparent-clear

Temperature range: -30 to +110 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, ISO 10993, FDA 21 CFR 177.1580, RoHS, DEHP

Good sterilization with ethylene oxide and gamma radiation (excellent up to 10 Mrads with minor loss of physical properties), autoclave not recommended

RSPC (Radiation Stable Polycarbonate)

Colour: transparent-violet

Temperature range: -30 to +110 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to ISO 10993, RoHS, DEHP

Good sterilization with ethylene oxide and gamma radiation (excellent up to 10 Mrads with minor loss of physical properties; light violet hue turns clear upon sterilization), autoclave not recommended

No FDA or USP clearance, not BSE / ADI-free!

Item Image Tubing inside Ø
inch
Schlauch Innen-Ø
mm
Werkstoff Einheit
Stück
Price
Euro*
Buy
15664
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
1/16" 1,6 PA 6.6 20 67.00
15665
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
1/16" 1,6 PP 15 58.00

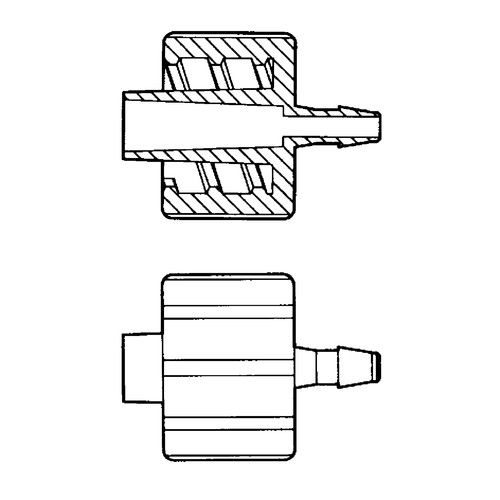

15666
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing

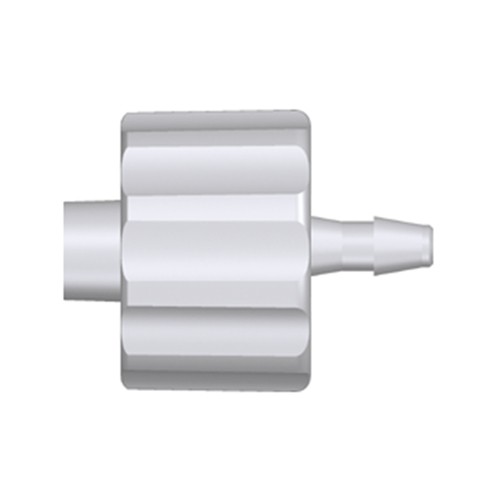

1/16" 1,6 PC 10 44.00
15667
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
1/16" 1,6 RSPC 10 44.00
15668
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing

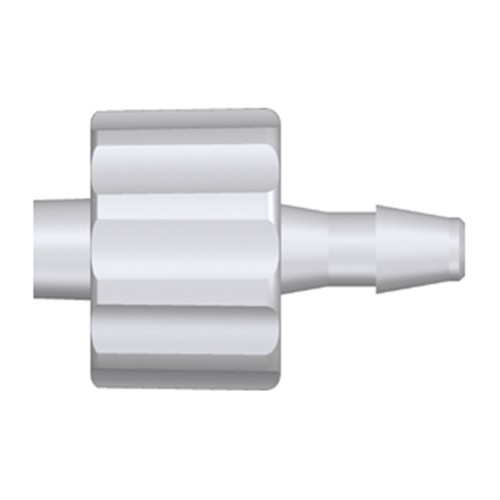

3/32" 2,4 PA 6.6 20 67.00
15669
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
3/32" 2,4 PP 15 58.00
15670
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
3/32" 2,4 PC 10 44.00

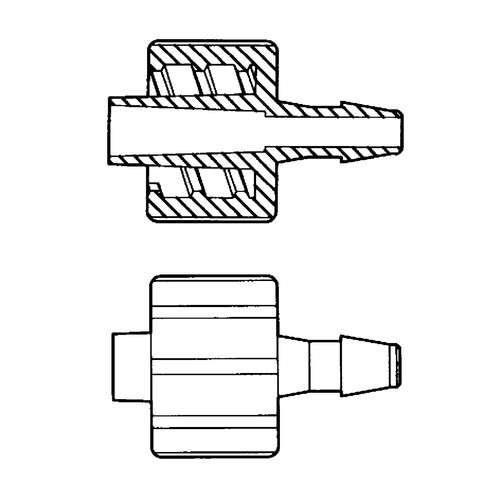

15671
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
3/32" 2,4 RSPC 10 44.00

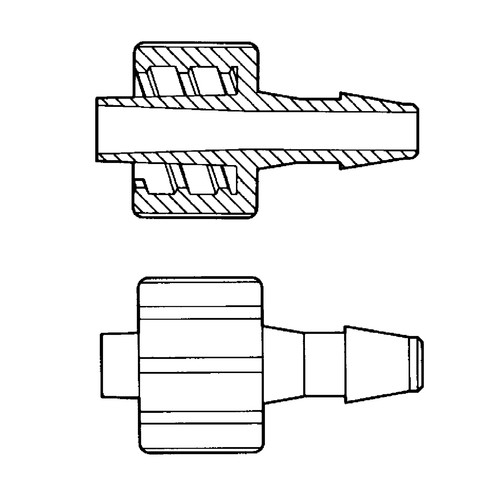

15672
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
1/8" 3,2 PA 6.6 20 67.00

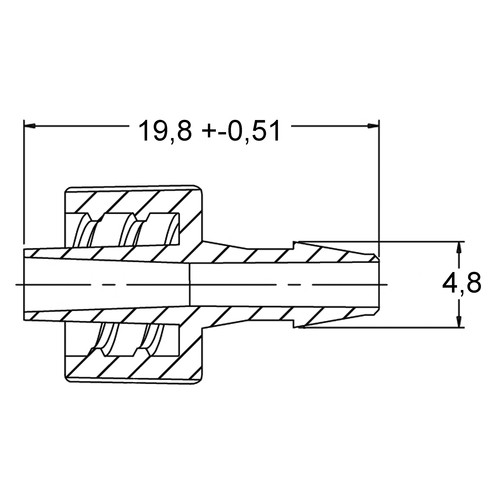

15673
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing

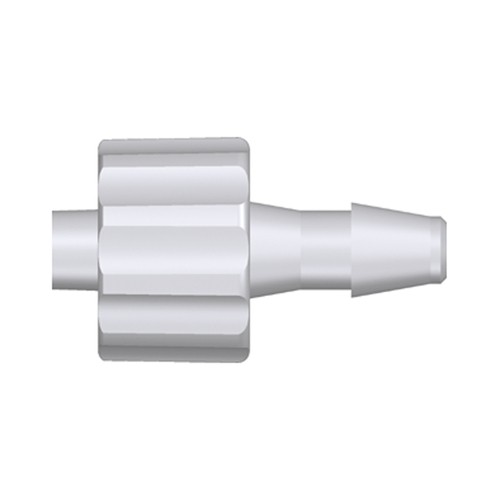

1/8" 3,2 PP 15 58.00

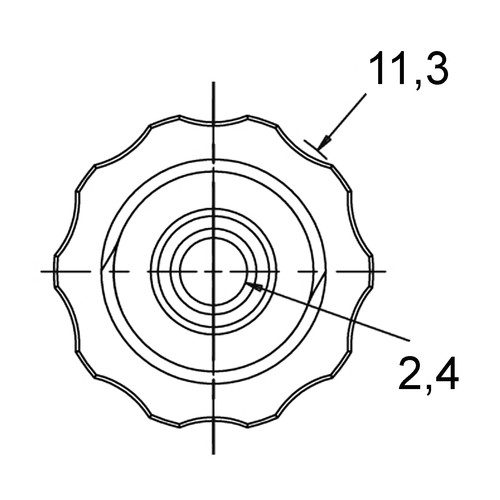

15674
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
1/8" 3,2 PC 10 44.00
15675
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
1/8" 3,2 RSPC 10 44.00

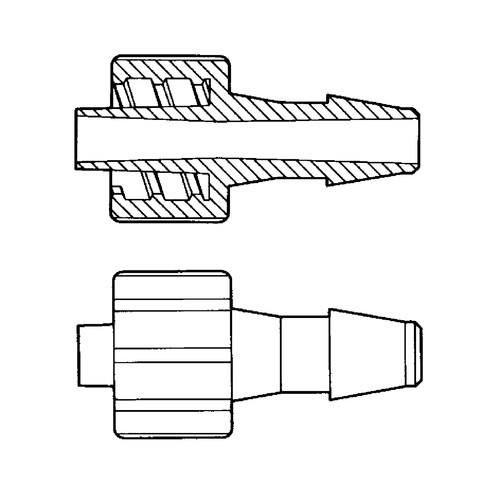

15676
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing

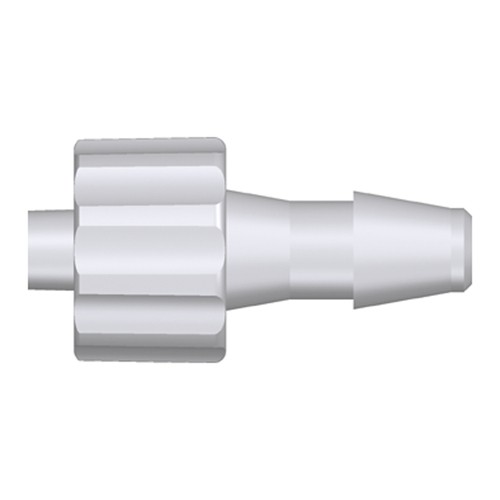

5/32" 4 PA 6.6 15 58.00
15677
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
5/32" 4 PP 10 44.00
15678
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
5/32" 4 PC 10 50.00
15679
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
5/32" 4 RSPC 10 50.00

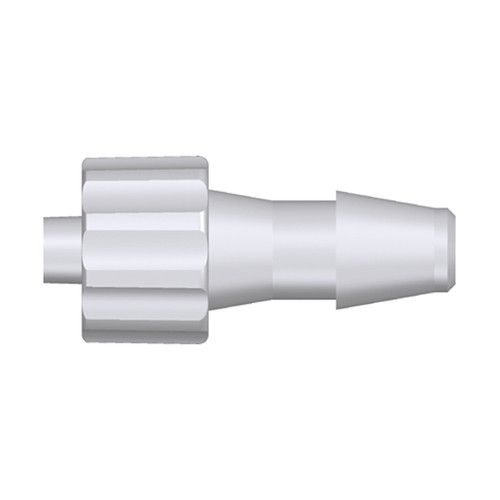

15680
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
3/16" 4,8 PA 6.6 15 58.00
15681
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing

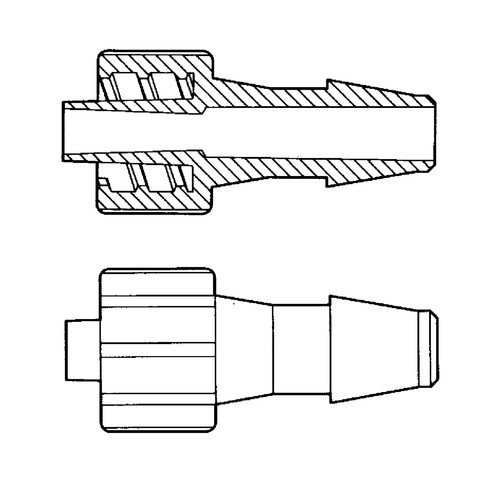

3/16" 4,8 PP 10 44.00
15682
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
3/16" 4,8 PC 10 50.00
15683
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
3/16" 4,8 RSPC 10 50.00
15704
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing

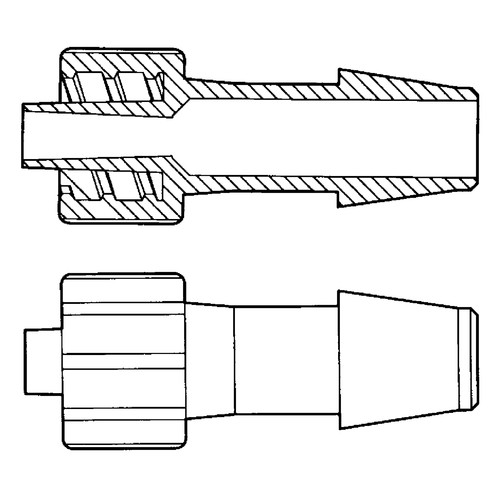

1/4" 6,4 PA 6.6 15 58.00
15705
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
1/4" 6,4 PP 15 68.00

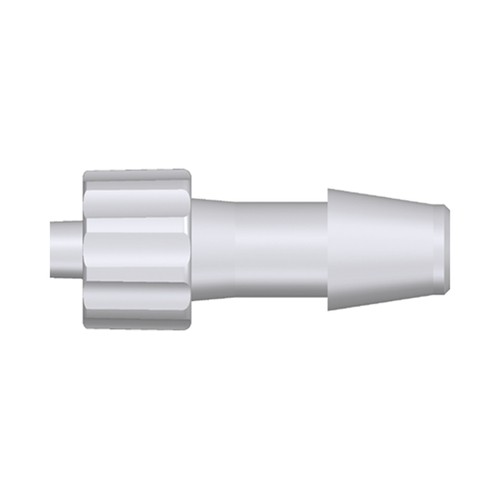

15706
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
1/4" 6,4 PC 10 50.00
15707
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
1/4" 6,4 RSPC 10 50.00
