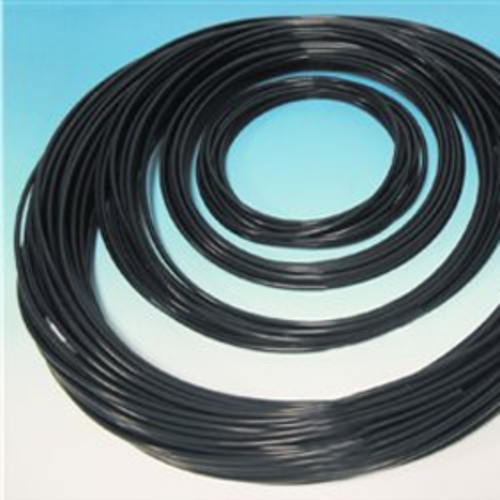

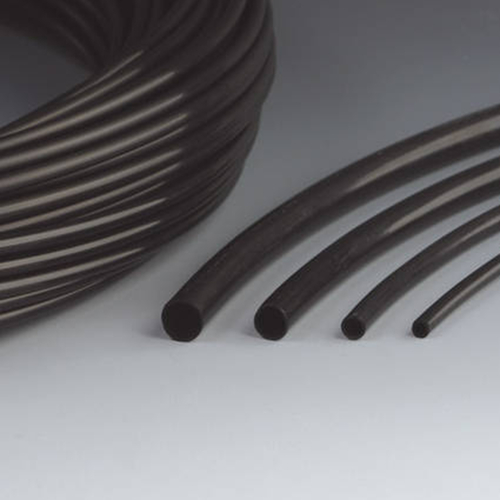

PTFE Antista Chemical Tubing - electrically conductive
Product specification
High resistance to aging.
Very low friction coefficient.
Smooth, antiadhesive inner surface.
Ideal for light-sensitive substances.
PTFE is physiologically safe and non-toxic, the raw materials are FDA conform.
A special fluoropolymer compound developed for prevention of electrostatics, PTFE (polytetrafluoroethylene), for semiconductor technology.
The material are filled with finest, highly pure carbon dust (less than 2,5%). The leakage resistance is <106 Ohm/m.
Good thermal loading capacity.
The material is resistant to practically all organic and anorganic fluids and gases, PTFE reacts chemically inertly, but it is chemically less resistant to strongly oxidizing media. The chemical resistance of the virgin PTFE is slightly reduced due to the modification of the tubing. Before conveying especially critical media, a preliminary test should be performed.
Technical specification
Material: PTFE (polytetrafluoroethylene)
Colour: black
Shore hardness D: 65°
Temperature range: -200 to +250 °C
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
min. Biegeradius mm
|
Platzdruck1 bar
|
Ausführung2 |
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|---|
305011 |
|
0,8 | 1,6 | 7 | 140 | Schlauch | 3 | 71.00 | |
305012 |
|
0,8 | 1,6 | 7 | 140 | Schlauch | 9 | 174.00 | |
305013 |
|
1,6 | 3,2 | 13 | 140 | Schlauch | 3 | 118.00 | |
305014 |
|
1,6 | 3,2 | 13 | 140 | Schlauch | 9 | 259.00 | |
305015 |
|
2 | 3 | 18 | 70 | Schlauch | 3 | 142.00 | |
305016 |
|
2 | 3 | 18 | 70 | Schlauch | 9 | 347.00 | |
305019 |
|
2 | 4 | 26 | 90 | Schlauch | 3 | 162.00 | |
305020 |
|
2 | 4 | 26 | 90 | Schlauch | 9 | 360.00 | |
305685 |
|
4 | 6 | 36 | 70 | Schlauch | 3 | 193.00 | |
305686 |
|
4 | 6 | 36 | 70 | Schlauch | 9 | 377.00 | |
305021 |
|
4,4 | 6,4 | 40 | 64 | Schlauch | 3 | 212.00 | |
305022 |
|
4,4 | 6,4 | 40 | 64 | Schlauch | 9 | 416.00 | |
305687 |
|
6 | 8 | 64 | 46 | Schlauch | 3 | 283.00 | |
305688 |
|
6 | 8 | 64 | 46 | Schlauch | 9 | 548.00 | |
40606 |
|
8 | 10 | 100 | 35 | Schlauch | 3 | 311.00 | |
40607 |
|
8 | 10 | 100 | 35 | Schlauch | 9 | 553.00 | |
49780 |
|
10 | 12 | 144 | 28 | Schlauch | 3 | 364.00 | |
49781 |
|
10 | 12 | 144 | 28 | Schlauch | 9 | 655.00 | |
305017 |
|
12 | 14 | 196 | 23 | Schlauch | 3 | 482.00 | |
305018 |
|
12 | 14 | 196 | 23 | Schlauch | 9 | 906.00 | |
305023 |
|
14 | 16 | 256 | 20 | Schlauch | 3 | 515.00 | |
305024 |
|
14 | 16 | 256 | 20 | Schlauch | 9 | 969.00 | |
49782 |
|

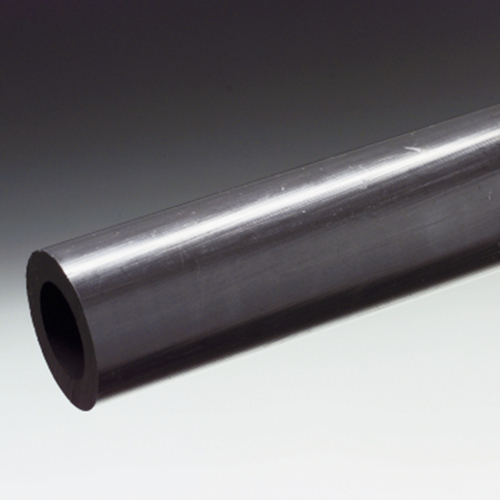

15 | 25 | Rohr (ram-extrudiert) | 1 | 132.00 | |||
49783 |
|
15 | 25 | Rohr (ram-extrudiert) | 2 | 214.00 | |||
49784 |
|
15 | 30 | Rohr (ram-extrudiert) | 1 | 217.00 | |||
49785 |
|
15 | 30 | Rohr (ram-extrudiert) | 2 | 357.00 | |||
49786 |
|
20 | 30 | Rohr (ram-extrudiert) | 1 | 217.00 | |||
49787 |
|
20 | 30 | Rohr (ram-extrudiert) | 2 | 357.00 | |||
49788 |
|
20 | 40 | Rohr (ram-extrudiert) | 1 | 362.00 | |||
49789 |
|
20 | 40 | Rohr (ram-extrudiert) | 2 | 580.00 | |||
49790 |
|
25 | 35 | Rohr (ram-extrudiert) | 1 | 217.00 | |||
49791 |
|
25 | 35 | Rohr (ram-extrudiert) | 2 | 357.00 | |||
49792 |
|
25 | 45 | Rohr (gepresst und gesintert) | 1 | 362.00 | |||
49793 |
|
25 | 45 | Rohr (gepresst und gesintert) | 2 | 580.00 | |||
49794 |
|
30 | 40 | Rohr (ram-extrudiert) | 1 | 236.00 | |||
49795 |
|
30 | 40 | Rohr (ram-extrudiert) | 2 | 390.00 |
