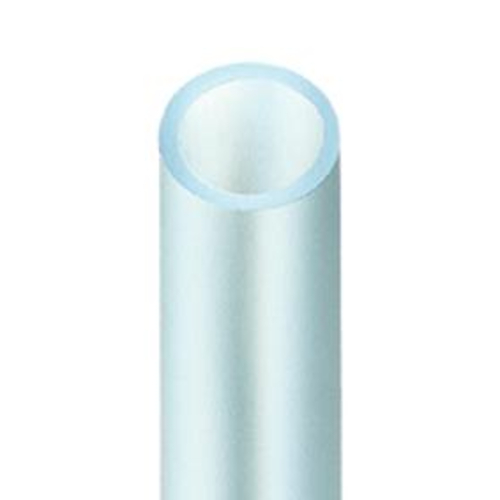

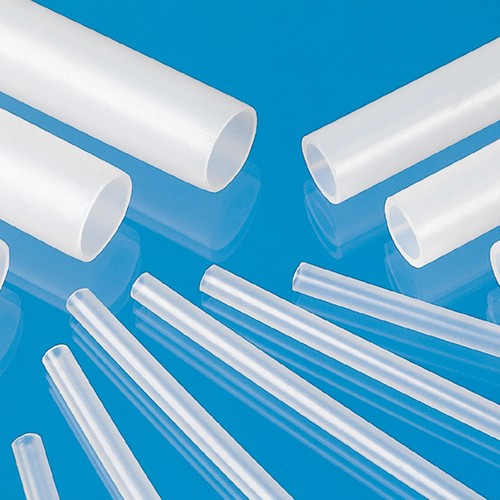

EVA Chemical Tubing
Product specification
Low density
Very good abrasion resistance
Outstanding mechanical stability
Antiadhesive surface (smooth-walled)
Very good resistance to aging and weather
Best dielectric properties
Hardly inflammable
Good impact strength, even at low temperatures
Tasteless and odourless
Flexible and resistant material
Lowest permeability to steam and gas, thus best gas-tightness (for use as CO2 pipeline in dispensing equipment).EVA ideally combines the properties of LDPE with those of soft PVC-P (polyvinyl chloride, soft).
The material combination shows excellent resistance even to critical media, e.g. formic acid (85 %), ethanol, ethylene diamine, ethylene glycol, benzyl alcohol, butanol, cyclohexanol, acetic acid, hydrofluoric acid, formaldehyde, isopropanol, caustic potash, perchloric acid (70 %), phosphoric acid (95 %), propionic acid, pyridine, nitric acid (30 %), hydrochloric acid (conc.), sulphuric acid (70 %), hydrogen peroxide (100 %) etc.
Technical specification
Material: EVA (ethylene vinyl acetate copolymer)
Colour: translucent
Shore hardness A: 94° ±5° (DIN 53505)
Temperature range: -30 to +60 °C
Vicat softening temperature: +71 °C
Density: 0.934 g/cm3 (DIN 53479)
Tear resistance: 28 MPa
Elongation at break: 530 %
Dielectric constant: 2.6 at 106 Hz (DIN 53483)
Permeability to steam: 4.5 g / (m2 x d) (DIN 53122)
Tolerance: DIN ISO 3302-1 E2
Regulations: EG 10/2011, FDA
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|
332404 |
|
0,5 | 1,5 | 20 | 10 | 122.00 | |
332405 |
|
0,5 | 1,5 | 20 | 20 | 212.00 | |
332406 |
|
0,5 | 1,5 | 20 | 40 | 377.00 | |
332407 |
|
0,5 | 2 | 30 | 10 | 122.00 | |
332408 |
|
0,5 | 2 | 30 | 20 | 212.00 | |
332409 |
|
0,5 | 2 | 30 | 40 | 377.00 | |
332410 |
|
1 | 3 | 20 | 10 | 122.00 | |
332411 |
|
1 | 3 | 20 | 20 | 212.00 | |
332412 |
|
1 | 3 | 20 | 40 | 377.00 | |
332413 |
|
1 | 4 | 30 | 10 | 135.00 | |
332414 |
|
1 | 4 | 30 | 20 | 234.00 | |
332415 |
|
1 | 4 | 30 | 40 | 416.00 | |
332416 |
|
2 | 4 | 10 | 10 | 127.00 | |
332417 |
|
2 | 4 | 10 | 20 | 221.00 | |
332418 |
|
2 | 4 | 10 | 40 | 392.00 | |
332419 |
|
3 | 5 | 7 | 10 | 142.00 | |
332420 |
|
3 | 5 | 7 | 20 | 242.00 | |
332421 |
|
3 | 5 | 7 | 40 | 431.00 | |
19211 |
|
3 | 6 | 12,5 | 10 | 110.00 | |
19212 |
|
3 | 6 | 12,5 | 20 | 197.00 | |
19213 |
|
3 | 6 | 12,5 | 40 | 356.00 | |
19214 |
|
4 | 6 | 8 | 10 | 110.00 | |
19215 |
|
4 | 6 | 8 | 20 | 197.00 | |
19216 |
|
4 | 6 | 8 | 40 | 356.00 | |
19217 |
|
4 | 8 | 12,5 | 10 | 127.00 | |
19218 |
|
4 | 8 | 12,5 | 20 | 227.00 | |
19219 |
|
4 | 8 | 12,5 | 40 | 409.00 | |
19220 |
|
4 | 10 | 12,5 | 10 | 146.00 | |
19221 |
|
4 | 10 | 12,5 | 20 | 262.00 | |
19222 |
|
4 | 10 | 12,5 | 40 | 471.00 | |
19223 |
|
5 | 8 | 8,5 | 10 | 120.00 | |
19224 |
|
5 | 8 | 8,5 | 20 | 217.00 | |
19225 |
|
5 | 8 | 8,5 | 40 | 390.00 | |
19226 |
|
5 | 12 | 12,5 | 10 | 182.00 | |
19227 |
|
5 | 12 | 12,5 | 20 | 328.00 | |
19228 |
|
5 | 12 | 12,5 | 40 | 591.00 | |
19229 |
|
6 | 8 | 6,5 | 10 | 137.00 | |
19230 |
|
6 | 8 | 6,5 | 20 | 251.00 | |
19231 |
|
6 | 8 | 6,5 | 40 | 448.00 | |
332401 |
|
6 | 10 | 7,5 | 10 | 163.00 | |
332402 |
|
6 | 10 | 7,5 | 20 | 242.00 | |
332403 |
|
6 | 10 | 7,5 | 40 | 437.00 | |
19232 |
|
6 | 12 | 12,5 | 10 | 174.00 | |
19233 |
|
6 | 12 | 12,5 | 20 | 313.00 | |
19234 |
|
6 | 12 | 12,5 | 40 | 561.00 | |
19235 |
|
7 | 10 | 6,5 | 10 | 127.00 | |
19236 |
|
7 | 10 | 6,5 | 20 | 227.00 | |
19237 |
|
7 | 10 | 6,5 | 40 | 409.00 | |
19238 |
|
7 | 14 | 12,5 | 10 | 191.00 | |
19239 |
|
7 | 14 | 12,5 | 20 | 345.00 | |
19240 |
|
7 | 14 | 12,5 | 40 | 621.00 | |
19241 |
|
8 | 10 | 4 | 10 | 120.00 | |
19242 |
|
8 | 10 | 4 | 20 | 217.00 | |
19243 |
|
8 | 10 | 4 | 40 | 371.00 | |
19244 |
|
8 | 12 | 7,5 | 10 | 150.00 | |
19245 |
|
8 | 12 | 7,5 | 20 | 270.00 | |
19246 |
|
8 | 12 | 7,5 | 40 | 486.00 | |
19247 |
|
8 | 14 | 10,5 | 10 | 174.00 | |
19248 |
|
8 | 14 | 10,5 | 20 | 313.00 | |
19249 |
|
8 | 14 | 10,5 | 40 | 559.00 | |
19250 |
|
9 | 12 | 5 | 10 | 163.00 | |
19251 |
|
9 | 12 | 5 | 20 | 242.00 | |
19252 |
|
9 | 12 | 5 | 40 | 437.00 | |
19253 |
|
9 | 14 | 9 | 10 | 157.00 | |
19254 |
|
9 | 14 | 9 | 20 | 281.00 | |
19255 |
|
9 | 14 | 9 | 40 | 501.00 | |
19256 |
|
9 | 16 | 10,5 | 10 | 227.00 | |
19257 |
|
9 | 16 | 10,5 | 20 | 379.00 | |
19258 |
|
9 | 16 | 10,5 | 40 | 683.00 | |
19259 |
|
10 | 14 | 6 | 10 | 142.00 | |
19260 |
|
10 | 14 | 6 | 20 | 253.00 | |
19261 |
|
10 | 14 | 6 | 40 | 452.00 | |
19262 |
|
10 | 16 | 8,5 | 10 | 202.00 | |
19263 |
|
10 | 16 | 8,5 | 20 | 343.00 | |
19264 |
|
10 | 16 | 8,5 | 40 | 598.00 | |
19265 |
|
12 | 16 | 5,5 | 10 | 182.00 | |
19266 |
|
12 | 16 | 5,5 | 20 | 345.00 | |
19267 |
|
12 | 16 | 5,5 | 40 | 589.00 | |
19268 |
|
12 | 18 | 7,5 | 10 | 238.00 | |
19269 |
|
12 | 18 | 7,5 | 20 | 396.00 | |
19270 |
|
12 | 18 | 7,5 | 40 | 715.00 | |
19271 |
|
12 | 20 | 9,5 | 10 | 317.00 | |
19272 |
|
12 | 20 | 9,5 | 20 | 529.00 | |
19273 |
|
12 | 20 | 9,5 | 40 | 955.00 | |
19274 |
|
13 | 18 | 6 | 10 | 204.00 | |
19275 |
|
13 | 18 | 6 | 20 | 341.00 | |
19276 |
|
13 | 18 | 6 | 40 | 617.00 | |
19277 |
|
14 | 18 | 4,5 | 10 | 180.00 | |
19278 |
|
14 | 18 | 4,5 | 20 | 309.00 | |
19279 |
|
14 | 18 | 4,5 | 40 | 538.00 | |
19280 |
|
15 | 20 | 6 | 10 | 227.00 | |
19281 |
|
15 | 20 | 6 | 20 | 379.00 | |
19282 |
|
15 | 20 | 6 | 40 | 683.00 | |
19283 |
|
16 | 20 | 5 | 10 | 206.00 | |
19284 |
|
16 | 20 | 5 | 20 | 345.00 | |
19285 |
|
16 | 20 | 5 | 40 | 621.00 | |
19286 |
|
18 | 22 | 4 | 10 | 210.00 | |
19287 |
|
18 | 22 | 4 | 20 | 379.00 | |
19288 |
|
18 | 22 | 4 | 40 | 683.00 |
