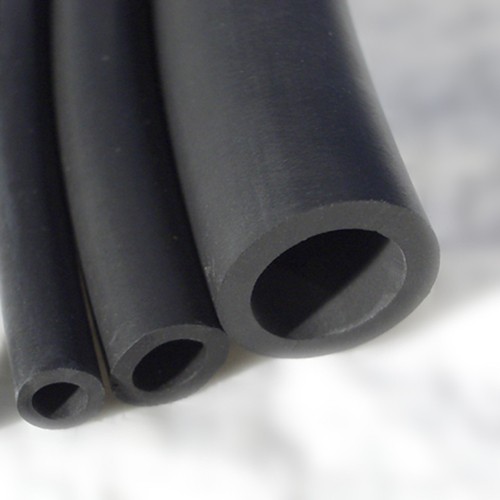

FPM Peristaltic Pump Tubing - High-Precision 55

Product specification Very soft quality and for peristaltic pumps ideal. Very low tolerances... more

Close menu

Product specification

Very soft quality and for peristaltic pumps ideal.

Very low tolerances due to mandrel-manufacturing referring to DIN ISO E1.

Available in lengths of 1.5; 5 and 10 meter.

Technical specification

Material: FPM (fluorinated rubber)

Shore hardness A: 55° ±5°

Design: mandrel-manufacturing

Tolerance: DIN ISO 3302-1 E1

General Information FPM For use in analytical technology, medical engineering, chemical... more

Close menu

General Information FPM

For use in analytical technology, medical engineering, chemical industry, biotechnology, laboratory technology and process engineering.

Extraordinary chemical resistance to hydrocarbons, mineral, vegetable, and animal oils, aromatic and chlorine containing solvents, many acids, alkalis, and oxidizing agents. Unstable to polar solvents and certain lyes.

Conveying tubing made of high-quality mixed polymers of fluorinated hydrocarbons

Very good chemical resistance

Very good heat resistance

Very good resistance to effects of ozone, oxygen, aging, and weather

Flame-resistant

Smooth surface

Low abrasion

Highest mechanical strength

Maximum dimensional stability

Material: FPM (fluorinated rubber)

Colour: black

Temperature range: -20 to +200 °C, for a short period +250 °C

Permeability: extremely low, nearly gas-tight

Dielectric constant: 15 at 50 Hz

Volume Resistivity: 2 x 10¹³ Ohm x cm

Abrasion: 190 mm³

Tolerances: DIN ISO 3302-1 E2

Item	Inside Ø mm	Außen-Ø mm	Wandstärke mm	Länge m	Einheit Stück	Price Euro*
340554	0,8	4	1,6	5	1	280.00
340555	0,8	4	1,6	10	1	490.00
340556	1,6	4,8	1,6	5	1	304.00
340557	1,6	4,8	1,6	10	1	525.00
340558	3,2	6,4	1,6	1,5	1	108.00
340559	3,2	6,4	1,6	1,5	3	265.00
340560	4,8	7,9	1,6	1,5	1	114.00
340561	4,8	7,9	1,6	1,5	3	290.00
340562	6,4	9,5	1,6	1,5	1	131.00
340563	6,4	9,5	1,6	1,5	3	332.00
