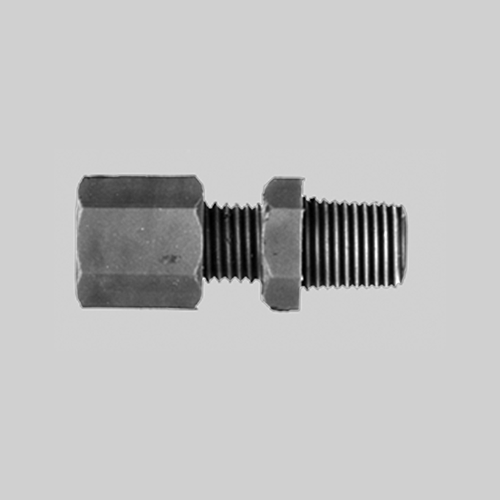

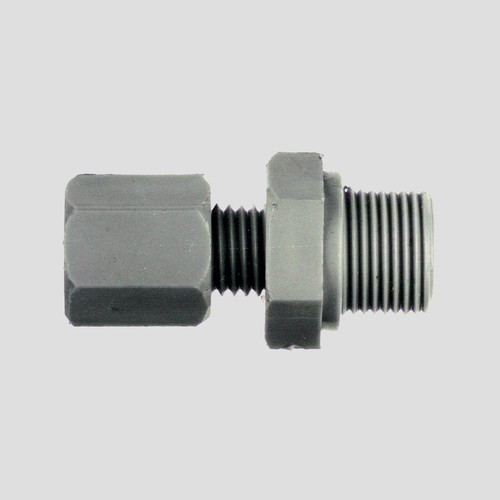

Straight Pipe Connector with Male Thread made of PP, PVDF or PTFE

Product specification Straight, pipe connection on one side, male G-, NPT- or M-thread on the... more

Product specification

Straight, pipe connection on one side, male G-, NPT- or M-thread on the other side

General Information EMP-4 THOMAFLUID ® -pipe screw fittings are used for connecting pipes... more

General Information EMP-4

THOMAFLUID®-pipe screw fittings are used for connecting pipes made of various materials such as metal, glass or plastic e.g. PA, PTFE or PVDF. This represents a considerable advantage of this kind of screwed fittings. The screw fitting is not limited to use with rigid pipes but also with flexible pipes or tubing. In this case, carrying brackets (items 22036-54) are required.

THOMAFLUID®-pipe screw fittings of the MULTIFIT®-EMP-series can be screwed into THOMAFLUID®-valves, cocks, and flowmeters of the MULTIFIT®-EMP-series.

Assembly:

The connection principle entails pushing the pipe against the inner edge of the connector and sealing with a sealing ring. The pipe is secured in place by a cutting ring (PEEK), which is forced against the pipe by a nut. The more the nut is screwed onto the connector body, the more the slotted cutting ring wedges the pipe. The result is a tight, friction-locked connection, which can be released at any time. The design concept eliminates the dead volume. It also has no effect on the flow because the inside diameter is identical to that of the pipe.

If flexible tubing has have to be adapted using THOMAFLUID®-pipe screw fittings, first the carrying brackets have to be put in the flexible tubes. Afterwards, the fixed assembly is done by tightening the cap nut.

PP (Polypropylene)

Extremely good impact toughness and notch impact strength

Higher hardness and stiffness as well as better resilience than PE

Thermoforming possible

Very good dielectrical properties

Good resistance to alcohols, ketones, conc. acids and alkalis

Not stable to aromatic hydrocarbons, fats and oils, halogenes

Autoclavable

Resistant to hydrolysis

Physiologically safe

Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Colour: grey

Density: 0.90 g/cm3

Temperature range: +5 to +90 °C

Shore hardness D: 72°

Max. operating pressure: 10 bar at +20 °C

Water absorption: <0.05 %

Tensile strength: 25 - 40 N/mm2

Elongation at break: 800 %

Surface resistance: >1013 Ohm

Melt flow index MFR: 0.3 g/10 min.

PVDF (Polyvinylidene fluoride)

High-quality technical plastic for chemical apparatus and machine building, especially in the petrochemical, metallurgical, pharmaceutical, food processing, paper and textile industry as well as in the nuclear technology.

High impact toughness even at low temperatures

Good breakdown strength

Low dielectric loss factor

Highest mechanical stability and stiffness

Meeting highest purity requirements

Comply with the guidelines from FDA, BSE/ADI-free and USP class VI, additionally PVDF has the KTW approval. Up to +150 °C it is non-toxic and since it has a similar property to glass it is a no-culture medium for microorganisms.

Can be treated by autoclave (absolute sterile) and sterilized with gamma-rays without losing its mechanical qualities

Outstanding resistance to UV, weather and aging

Flame-resistant

High thermal stability

Resistant to alcohols, fats and oils, halogenes, alkalis, acids

Not stable to aromatic hydrocarbons, ketones, amines, pyridine, dimethylformamide, hot alkalis, fuming sulfuric acid

Colour: nature, slightly translucent

Density: 1.75 g/cm3

Temperature range: -40 to +140 °C

Shore hardness D: 79°

Max. operating pressure: 10 bar at +20 °C

Water absorption: <0.04 %

Tensile strength: 38 - 50 N/mm2

Surface resistance: >1013 Ohm

Melt flow index MFR: 6 g/10 min.

PTFE (Polytetrafluoroethylene)

Heavy-duty plastic

Antiadhesive surface

Outstanding sliding properties

Lowest friction coefficient of all fluorinated plastics

Excellent stress cracking resistance

Excellent weather resistance

Highest gas-tightness

No water absorption

Very good dielectric properties independent of frequency and temperature

Very good electrical insulating capacity also at air humidity

High tracking resistance

Non-combustible

Colour: milky, white

Density: 2.20 g/cm3

Temperature range: -200 to +150 °C

Shore hardness D: 60°

Max. operating pressure: 6 bar at +20 °C

Tearing strength: 30 - 40 N/mm2

Elongation at break: 300 %

Water absorption: 0.01 %

Surface resistance: >1017 Ohm

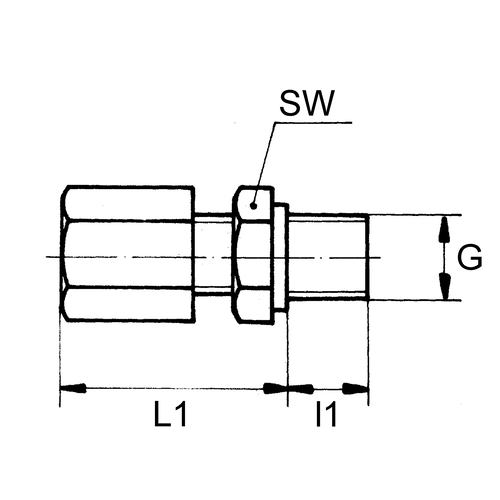

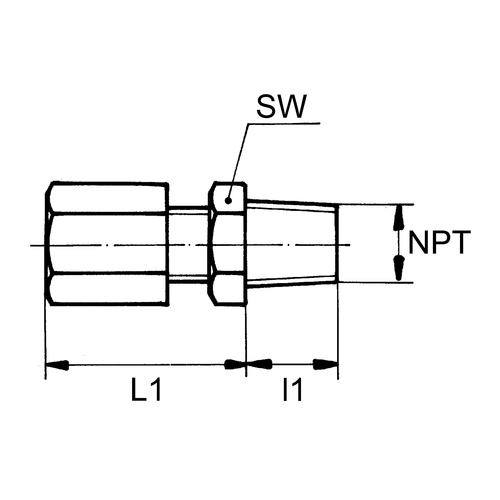

Item Image Pipe outside Ø
mm
Außengewinde l1
mm
L1
mm
SW
mm
Werkstoff Einheit
Stück
Price
Euro*
Buy
10639
4 G 1/8" 8 32 14 PP 10 89.00
10641
4 G 1/8" 8 32 14 PVDF 5 166.00
10642
4 G 1/4" 12 34 17 PP 10 95.00
10644
4 G 1/4" 12 34 17 PVDF 5 168.00
10645
4 G 3/8" 12 36 22 PP 10 173.00
10647
4 G 3/8" 12 36 22 PVDF 3 136.00
10648
4 G 1/2" 14 39 27 PP 10 184.00
10650
4 G 1/2" 14 39 27 PVDF 3 159.00
22096
6 G 1/8" 8 32 14 PP 10 89.00
22098
6 G 1/8" 8 32 14 PVDF 5 164.00
22100
6 G 1/4" 12 34 17 PP 10 95.00
22102
6 G 1/4" 12 34 17 PVDF 5 168.00
22104
6 G 3/8" 12 36 22 PP 10 184.00
22105
6 G 3/8" 12 36 22 PTFE 3 151.00
22106
6 G 3/8" 12 36 22 PVDF 3 136.00
22108
6 G 1/2" 14 39 27 PP 10 180.00
22110
6 G 1/2" 14 39 27 PVDF 3 159.00
22112
8 G 1/8" 8 33 17 PP 10 119.00
22114
8 G 1/8" 8 33 17 PVDF 5 163.00
22116
8 G 1/4" 12 34 17 PP 10 126.00
22118
8 G 1/4" 12 34 17 PVDF 5 169.00
22120
8 G 3/8" 12 36 22 PP 10 197.00
22122
8 G 3/8" 12 36 22 PVDF 2 118.00
22124
8 G 1/2" 14 39 27 PP 10 202.00
22126
8 G 1/2" 14 39 27 PVDF 2 137.00
22128
10 G 1/8" 8 36 19 PP 10 172.00
22130
10 G 1/8" 8 36 19 PVDF 5 200.00
22132
10 G 1/4" 12 37 19 PP 10 173.00
22134
10 G 1/4" 12 37 19 PVDF 5 203.00
22136
10 G 3/8" 12 38 22 PP 10 204.00
22138
10 G 3/8" 12 38 22 PVDF 3 191.00
22140
10 G 1/2" 14 41 27 PP 10 220.00
22142
10 G 1/2" 14 41 27 PVDF 2 150.00
22144
12 G 1/8" 8 39 22 PP 5 142.00
22145
12 G 1/8" 8 39 22 PTFE 2 152.00
22146
12 G 1/8" 8 39 22 PVDF 2 150.00
22148
12 G 1/4" 12 40 22 PP 5 148.00
22150
12 G 1/4" 12 40 22 PVDF 2 150.00
22152
12 G 3/8" 12 40 22 PP 5 150.00
22154
12 G 3/8" 12 40 22 PVDF 2 152.00
22156
12 G 1/2" 14 43 27 PP 5 166.00
22158
12 G 1/2" 14 43 27 PVDF 2 167.00
22160
14 G 1/8" 8 42 27 PP 5 184.00
22162
14 G 1/8" 8 42 27 PVDF 2 167.00
22164
14 G 1/4" 12 43 27 PP 5 188.00
22165
14 G 1/4" 12 43 27 PTFE 2 187.00
22166
14 G 1/4" 12 43 27 PVDF 2 167.00
22168
14 G 3/8" 12 43 27 PP 5 202.00
22170
14 G 3/8" 12 43 27 PVDF 2 198.00
22172
14 G 1/2" 14 44 27 PP 5 212.00
22174
14 G 1/2" 14 44 27 PVDF 1 101.00
10627
4 NPT 1/8" 10 32 14 PP 10 93.00
10628
4 NPT 1/8" 10 32 14 PTFE 5 183.00
10629
4 NPT 1/8" 10 32 14 PVDF 5 160.00
10630
4 NPT 1/4" 15 33 17 PP 10 95.00
10632
4 NPT 1/4" 15 33 17 PVDF 5 172.00
10633
4 NPT 3/8" 15 34 19 PP 10 184.00
10635
4 NPT 3/8" 15 34 19 PVDF 3 136.00
10636
4 NPT 1/2" 20 37 24 PP 10 184.00
10638
4 NPT 1/2" 20 37 24 PVDF 3 159.00
22176
6 NPT 1/8" 10 32 14 PP 10 89.00
22178
6 NPT 1/8" 10 32 14 PVDF 5 159.00
22180
6 NPT 1/4" 15 33 17 PP 10 95.00
22182
6 NPT 1/4" 15 33 17 PVDF 5 168.00
22184
6 NPT 3/8" 15 34 19 PP 10 173.00
22186
6 NPT 3/8" 15 34 19 PVDF 3 136.00
22188
6 NPT 1/2" 20 37 24 PP 10 184.00
22189
6 NPT 1/2" 20 37 24 PTFE 3 178.00
22190
6 NPT 1/2" 20 37 24 PVDF 3 159.00
22192
8 NPT 1/8" 10 33 17 PP 10 119.00
22194
8 NPT 1/8" 10 33 17 PVDF 5 166.00
22196
8 NPT 1/4" 15 33 17 PP 10 126.00
22198
8 NPT 1/4" 15 33 17 PVDF 5 169.00
22200
8 NPT 3/8" 15 34 19 PP 10 197.00
22202
8 NPT 3/8" 15 34 19 PVDF 2 118.00
22204
8 NPT 1/2" 20 37 24 PP 10 208.00
22206
8 NPT 1/2" 20 37 24 PVDF 2 136.00
22208
10 NPT 1/8" 10 36 19 PP 10 172.00
22210
10 NPT 1/8" 10 36 19 PVDF 5 203.00
22212
10 NPT 1/4" 15 36 19 PP 10 173.00
22214
10 NPT 1/4" 15 36 19 PVDF 5 203.00
22216
10 NPT 3/8" 15 37 22 PP 10 208.00
22218
10 NPT 3/8" 15 37 22 PVDF 3 169.00
22220
10 NPT 1/2" 20 39 24 PP 10 221.00
22222
10 NPT 1/2" 20 39 24 PVDF 2 150.00
22224
12 NPT 1/8" 10 39 22 PP 5 142.00
22226
12 NPT 1/8" 10 39 22 PVDF 2 150.00
22228
12 NPT 1/4" 15 39 22 PP 5 148.00
22230
12 NPT 1/4" 15 39 22 PVDF 2 150.00
22232
12 NPT 3/8" 15 39 22 PP 5 150.00
22234
12 NPT 3/8" 15 39 22 PVDF 2 152.00
22236
12 NPT 1/2" 20 41 24 PP 5 166.00
22237
12 NPT 1/2" 20 41 24 PTFE 2 187.00
22238
12 NPT 1/2" 20 41 24 PVDF 2 167.00
22240
14 NPT 1/8" 10 42 24 PP 5 184.00
22242
14 NPT 1/8" 10 42 24 PVDF 2 167.00
22244
14 NPT 1/4" 15 42 24 PP 5 190.00
22245
14 NPT 1/4" 15 42 24 PTFE 2 187.00
22246
14 NPT 1/4" 15 42 24 PVDF 2 167.00
22248
14 NPT 3/8" 15 42 24 PP 5 202.00
22250
14 NPT 3/8" 15 42 24 PVDF 2 198.00
22252
14 NPT 1/2" 20 43 24 PP 5 212.00
22254
14 NPT 1/2" 20 43 24 PVDF 1 111.00
22256
6 M10 x 1,5 8 32 14 PP 10 82.00
22258
6 M10 x 1,5 8 32 14 PVDF 5 145.00
22260
6 M12 x 1,5 12 34 17 PP 10 a.A.
22262
6 M12 x 1,5 12 34 17 PVDF 5 a.A.
22264
6 M16 x 1,5 12 36 22 PP 10 a.A.
22266
6 M16 x 1,5 12 36 22 PVDF 3 a.A.
22268
6 M18 x 1,5 12 39 27 PP 10 a.A.
22270
6 M18 x 1,5 12 39 27 PVDF 3 a.A.
22272
8 M10 x 1,5 8 33 17 PP 10 133.00
22274
8 M10 x 1,5 8 33 17 PVDF 5 155.00
22276
8 M12 x 1,5 12 34 17 PP 10 a.A.
22278
8 M12 x 1,5 12 34 17 PVDF 5 a.A.
22280
8 M16 x 1,5 12 36 22 PP 10 a.A.
22282
8 M16 x 1,5 12 36 22 PVDF 3 a.A.
22284
8 M18 x 1,5 12 38 24 PP 10 a.A.
22286
8 M18 x 1,5 12 38 24 PVDF 3 a.A.
22288
10 M10 x 1,5 8 36 19 PP 10 a.A.
22289
10 M10 x 1,5 8 36 19 PTFE 5 212.00
22290
10 M10 x 1,5 8 36 19 PVDF 5 a.A.
22292
10 M12 x 1,5 12 37 19 PP 10 a.A.
22294
10 M12 x 1,5 12 37 19 PVDF 5 179.00
22296
10 M16 x 1,5 12 38 22 PP 10 a.A.
22298
10 M16 x 1,5 12 38 22 PVDF 2 a.A.
22300
10 M18 x 1,5 12 40 24 PP 10 a.A.
22302
10 M18 x 1,5 12 40 24 PVDF 2 a.A.
22304
12 M10 x 1,5 8 39 22 PP 10 a.A.
22306
12 M10 x 1,5 8 39 22 PVDF 2 127.00
22308
12 M12 x 1,5 12 40 22 PP 10 a.A.
22310
12 M12 x 1,5 12 40 22 PVDF 5 a.A.
22312
12 M16 x 1,5 12 40 22 PP 10 a.A.
22314
12 M16 x 1,5 12 40 22 PVDF 3 a.A.
22316
12 M18 x 1,5 12 42 24 PP 10 a.A.
22318
12 M18 x 1,5 12 42 24 PVDF 2 161.00
22320
14 M10 x 1,5 8 42 27 PP 5 a.A.
22322
14 M10 x 1,5 8 42 27 PVDF 2 a.A.
22324
14 M12 x 1,5 12 43 27 PP 5 a.A.
22326
14 M12 x 1,5 12 43 27 PVDF 2 a.A.
22328
14 M16 x 1,5 12 43 27 PP 5 a.A.
22330
14 M16 x 1,5 12 43 27 PVDF 2 a.A.
22332
14 M18 x 1,5 12 44 27 PP 5 a.A.
22334
14 M18 x 1,5 12 44 27 PVDF 2 a.A.
