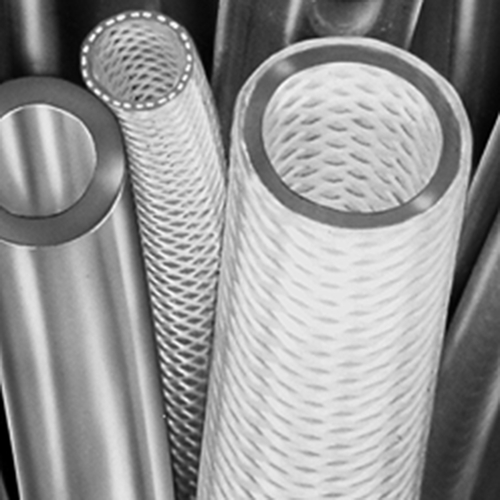

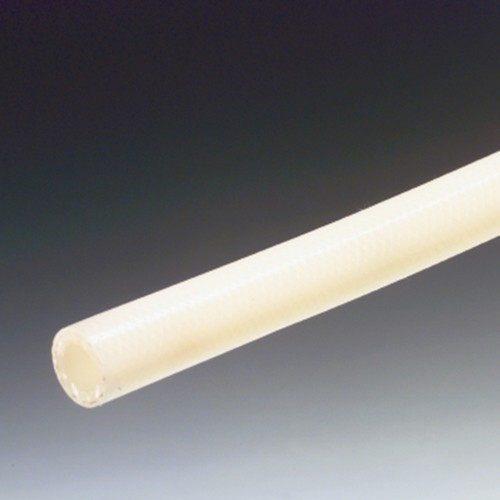

Silicone High-Temperature Pharmaceutical Pressure Tubing - flexible

Preview: Silicone High-Temperature Pharmaceutical Pressure Tubing - flexible Preview: Silicone High-Temperature Pharmaceutical Pressure Tubing - flexible Preview: Silicone High-Temperature Pharmaceutical Pressure Tubing - flexible Preview: Silicone High-Temperature Pharmaceutical Pressure Tubing - flexible
Silicone High-Temperature Pharmaceutical Pressure Tubing - flexible
Silicone High-Temperature Pharmaceutical Pressure Tubing - flexible
Silicone High-Temperature Pharmaceutical Pressure Tubing - flexible
Silicone High-Temperature Pharmaceutical Pressure Tubing - flexible


Description General Information
Description
Application area On fermenters in the biotechnology, overall food processing industry and... more
Close menu

Application area

On fermenters in the biotechnology, overall food processing industry and pharmaceutical industry

Product specification

Highly flexible pharmaceutical tubing

Outstanding temperature resistance

Excellent resistance to hot air

Good resistance to cold

Very good resistance to ozone, aging, and weather

Very good dielectric properties

Physiologically absolutely safe

Non-toxic

Pyrogen-free and compatible with blood (tolerated by blood)

Technical specification

Material: Silicone (silicone rubber special compound according to GMP)

Colour: milky-transparent

Shore hardness A: 60° ±5° (DIN 53505)

Temperature range: -60 to +180 °C

Bursting pressure: approx. 3-fold dynamic operating pressure

Insert: coarse-meshed PETP-braiding

Sterilization: saturated steam (+136 °C)

Design: absolutely smooth (inside and outside)

Regulations: FDA 21 §177.2600, USP Class VI, European Pharmacopoeia, ISO 10993, BfR, EG 1935/2004, EG 2023/2006, EU 10/2011 (Cat. A, B, C)

General Information
more
Close menu
No additional information available.
