Silicone Pharmaceutical and Pressure Tubing with Fabric Insert of Glass Silk

Product specification Flexible silicone pressure tubing with multifil fabric insert of glass... more

Product specification

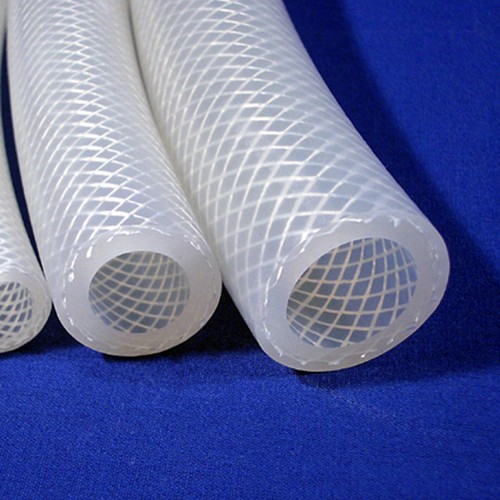

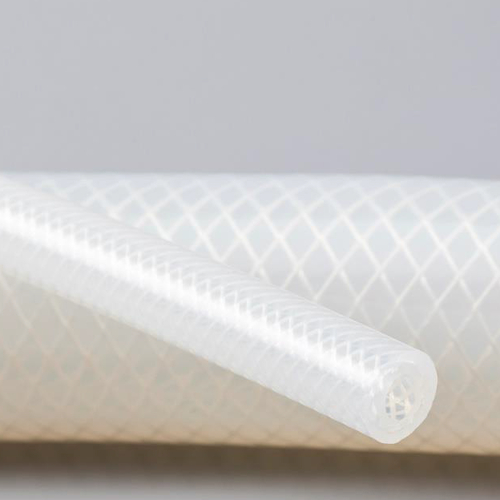

Flexible silicone pressure tubing with multifil fabric insert of glass silk

Very good resistance to temperature

Excellent resistance to hot air

Good resistance to cold

High chemical resistance

Very good resistance to ozone, aging, and weather

Very good dielectric properties

Physiologically safe

Non-toxic, free from pyrogenes, compatible with blood (tolerated by blood)

Free from natural rubber latex, dry natural rubber, or synthetic latex

Technical specification

Material: Silicone (silicone rubber)

Colour: translucent

Shore hardness A: 70° ±5° (DIN 53505)

Temperature range: -60 to +200 °C, for a short time +250 °C

Density: 1.18 ±0.02 g/cm3 (ISO 1183-1 A)

Tensile strength: 10.7 N/mm2 (DIN 53504-S1)

Elongation at break: 460 % (DIN 53504-S1)

Tear propagation resistance: 23 N/mm (ASTM D624 B)

Rebound elasticity: 38 % (DIN 53512)

Compression set: 48 % at +175 °C / 22 h (DIN 53517)

Sterilization: hot air (+200 °C); steam (+134 °C at 2.5 bar)

Tolerance: DIN ISO 3302-1 E2

Regulations: FDA § 177.2600, EG 1935/2004 and BfR XV Silicone; USP Class VI (only the liner)

Note: Silicone hoses with a glass fabric insert are not suitable for pulsating pressures and continuous pressure applications! The permissible operating pressure depends on the regulations at the place of use. As a recommendation, the operating pressure at room temperature should reach a maximum of 50 % of the test pressure specified by us.

No additional information available.
Item Image Inside Ø
mm
Außen-Ø
mm
max. Betr.-Druck1
bar
min. Biegeradius
mm
Einheit
m
Price
Euro*
Buy
11544
3 9 40 10 5 139.00
11545
3 9 40 10 15 350.00
11546
4 10 40 10 5 151.00
11547
4 10 40 10 15 376.00
11548
5 11 30 15 5 168.00
11549
5 11 30 15 15 414.00
11550
6 12 25 15 5 186.00
11551
6 12 25 15 15 449.00
11552
8 15 20 28 5 239.00
11553
8 15 20 28 15 583.00
11554
10 17 18 38 5 268.00
11555
10 17 18 38 15 674.00
11556
12,5 19,5 18 50 5 303.00
11557
12,5 19,5 18 50 15 756.00
115582
14 23 23 50 5 384.00
115592
14 23 23 50 15 952.00
11560
16 26 15 60 5 560.00
11561
16 26 15 60 15 1,390.00
11562
19 30 15 60 5 682.00
11563
19 30 15 60 15 1,690.00
11564
25 37 10 100 5 853.00
11565
25 37 10 100 15 2,128.00
