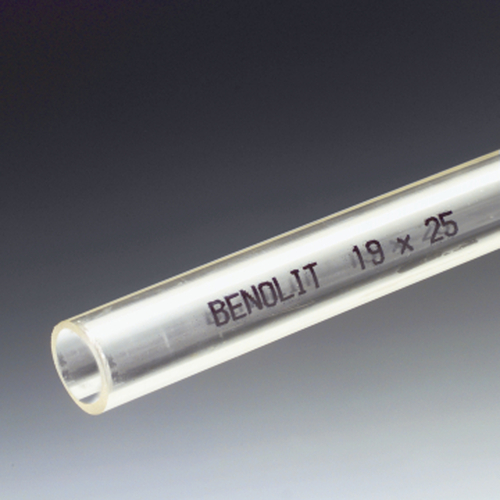

PVC Tubing for Gasoline and Oil

Product specification Flexible and resistant material, resistant to aging and abrasion,... more

Product specification

Flexible and resistant material, resistant to aging and abrasion, rugged and pressure-proof, inside and outside smooth, hardly inflammable, resistant against solar radiation in middle latitudes.

Resistant to mineral oils, greases, gasoline, diesel fuels and other aliphatic hydrocarbons, also ethanol, at +20 °C.

Not resistant to aromatic hydrocarbons and hydraulic oils on glycol base.

Technical specification

Material: PVC-P (polyvinyl chloride, soft), the material is free of silicone and toxic heavy metals

Colour: transparent, slightly yellowish

Shore hardness A: 76° ±3° (DIN 53505)

Temperature range: -15 to +60 °C, at +40 °C nearly atmospheric pressure

Tearing strength: 18 N/mm2

Elongation at break: >300 %

Surface resistance: 1011 Ohm

Tolerance: for internal diameter and wall thickness according to DIN 16940

No additional information available.
Item Image Inside Ø
mm
Außen-Ø
mm
max. Betr.-Druck1
bar
Einheit
m
Price
Euro*
Buy
340325
2 4 13 5 39.00
340326
2 4 13 15 90.00
340327
2 4 13 30 135.00
340328
3 5 9,5 5 39.00
340329
3 5 9,5 15 90.00
340330
3 5 9,5 30 135.00
340331
3 6 12,5 5 53.00
340332
3 6 12,5 15 120.00
340333
3 6 12,5 30 174.00
27242
4 8 12,5 5 63.00
27243
4 8 12,5 15 132.00
27244
4 8 12,5 30 188.00
27245
5 9 10,5 5 60.00
27246
5 9 10,5 15 137.00
27247
5 9 10,5 30 212.00
27248
6 10 9,5 5 71.00
27249
6 10 9,5 15 167.00
27250
6 10 9,5 30 236.00
27251
8 12 7,5 5 75.00
27252
8 12 7,5 15 191.00
27253
8 12 7,5 30 285.00
27254
10 14 6 5 87.00
27255
10 14 6 15 212.00
27256
10 14 6 30 314.00
27257
12 17 5 5 96.00
27258
12 17 5 15 236.00
27259
12 17 5 30 351.00
27263
15 21 5 5 147.00
27264
15 21 5 15 372.00
27265
15 21 5 30 420.00
27266
19 27 6,5 5 300.00
27267
19 27 6,5 15 651.00
27268
19 27 6,5 30 812.00
340334
20 28 4,5 5 315.00
340335
20 28 4,5 15 675.00
340336
20 28 4,5 30 890.00
340337
22 30 4,5 5 338.00
340338
22 30 4,5 15 720.00
340339
22 30 4,5 30 954.00
340340
24 30 4 5 290.00
340341
24 30 4 15 617.00
340342
24 30 4 30 813.00
