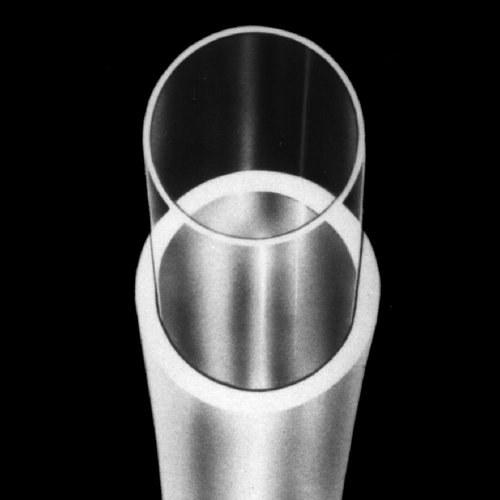

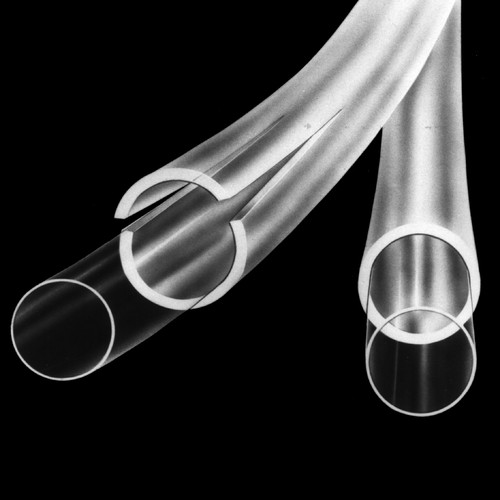

TYGON®-FEP/PVC Pharmaceutical Composite Tubing

Product specification Smallest bending radii practically without kinks due to highest... more

Product specification

Smallest bending radii practically without kinks due to highest flexibility.

Highest chemical resistance allowing conveyance of all kinds of aggressive solutions (MEK-based solvents) without extracting.

Completely neutral in taste and odour.

Meets FDA Criteria for food and beverage use, contains no BPA or phthalates.

Technical specification

Material:

Liner: FEP (fluoroethylene-propylene)

Jacket: Versilon®-SE-200 (PVC-P, cross-linked)

Colour: translucent-clear

Shore hardness A: 66° (ASTM D2240)

Temperature range: -10 to +74 °C

Density: 1.21 g/cm3 (ASTM D792)

Embrittlement temperature: -36 °C (ASTM D746)

Tensile strength: 15.2 MPa (ASTM D412)

Tear resistance: 43,8 kN/m (ASTM D1004)

Ultimate elongation: 390 % (ASTM D412)

Tensile modulus: 9.5 MPa at 200 % Elongation

Compression set: 59 % at +70 °C / 22 h

Water absorption: <0.01 % at +23 °C / 24 h

Regulations: FDA 21 CFR §177.1550

No additional information available.
Item Image Inside Ø
mm
Außen-Ø
mm
Wandstärke
mm
max. Betr.-Druck1
bar
min. Biegeradius
mm
Einheit
m
Price
Euro*
Buy
339657
1,6 3,2 0,8 6,9 13 5 135.00
339658
1,6 3,2 0,8 6,9 13 10 249.00
11534
3,2 6,4 1,6 5,8 25 5 150.00
11535
3,2 6,4 1,6 5,8 25 10 268.00
11536
4,8 7,9 1,6 5,1 38 5 206.00
11537
4,8 7,9 1,6 5,1 38 10 364.00
11538
6,4 9,5 1,6 3,8 50 5 274.00
11539
6,4 9,5 1,6 3,8 50 10 530.00
11540
9,5 14,3 2,4 3,4 88 5 311.00
11541
9,5 14,3 2,4 3,4 88 10 482.00
11542
12,7 19 3,2 3,1 100 5 456.00
11543
12,7 19 3,2 3,1 100 10 814.00
