EPDM/PP Pressure Chemical Tubing
Product specification
Conveying and pressure tubing for continuous operation, with fabric insert
High abrasion resistance
Heat-sealing and bonding properties
Highest chemical resistance to most organic and inorganic media
Good temperature resistance
Repeatedly autoclavable
Good cold resistance
Resistance to ozone, aging and weather
Extremely low permeability to gas
Physiologically safe, free from pyrogenes, non-toxic
Free from extractable constituents
Plasticizer-free
Technical specification
Material: EPDM/PP (ethylene-propylene-diene/polypropylene, thermoplastic elastomer);
compound of EPDM and PP, as well as stabilizing additives

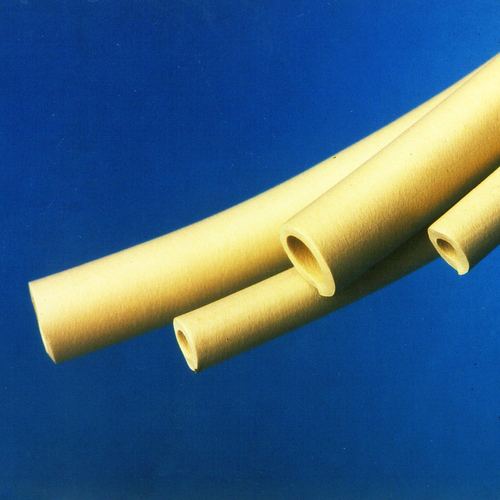

Colour: yellowish
Shore hardness A: 73° (DIN 53505)
Temperature range: -50 to +140 °C
Density: 0.97 g/cm3 (DIN 53479 A)
Embrittlement temperature: -75 °C

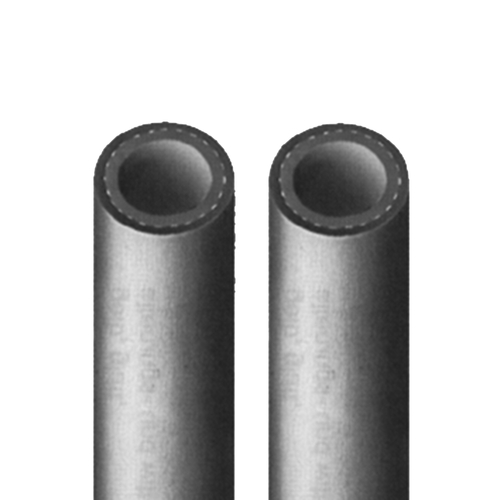

Insert: polyester braiding as pressure support
Elongation at break: 400 % (DIN 53504-S1)
Tolerance: DIN ISO 3302-1 E2
Sterilization: autoclavable (+136 °C)
Regulations: FDA 21 CFR §177.2600; EU 2003/11/EC; EU and CHINA RoHS
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|
190821 |
|
3 | 8 | 17 | 5 | 100.00 | |
190831 |
|
3 | 8 | 17 | 15 | 253.00 | |
190841 |
|
4 | 9 | 17 | 5 | 121.00 | |
190851 |
|
4 | 9 | 17 | 15 | 272.00 | |
190861 |
|
5 | 10 | 17 | 5 | 130.00 | |
190871 |
|
5 | 10 | 17 | 15 | 315.00 | |
190881 |
|
6 | 11,5 | 17 | 5 | 151.00 | |
190891 |
|
6 | 11,5 | 17 | 15 | 359.00 | |
190921 |
|
6 | 12,5 | 17 | 5 | 174.00 | |
190931 |
|
6 | 12,5 | 17 | 15 | 408.00 | |
190961 |
|
8 | 14,5 | 17 | 5 | 204.00 | |
190971 |
|
8 | 14,5 | 17 | 15 | 475.00 | |
190981 |
|
9,5 | 16 | 17 | 5 | 234.00 | |
190991 |
|
9,5 | 16 | 17 | 15 | 540.00 | |
191001 |
|
10 | 18 | 11 | 5 | 234.00 | |
191011 |
|
10 | 18 | 11 | 15 | 540.00 | |
191061 |
|
12,5 | 19,5 | 11 | 5 | 255.00 | |
191071 |
|
12,5 | 19,5 | 11 | 15 | 592.00 | |
191081 |
|
14 | 23 | 11 | 5 | 321.00 | |
191091 |
|
14 | 23 | 11 | 15 | 747.00 | |
191121 |
|
16 | 24 | 11 | 10 | 761.00 | |
191131 |
|
16 | 24 | 11 | 25 | 1,475.00 | |
191141 |
|
18 | 29,5 | 11 | 10 | 1,049.00 | |
191151 |
|
18 | 29,5 | 11 | 25 | 2,042.00 | |
191161 |
|
19 | 30,5 | 11 | 10 | 1,093.00 | |
191171 |
|
19 | 30,5 | 11 | 25 | 2,121.00 | |
191181 |
|
20 | 31,5 | 11 | 10 | 1,134.00 | |
191191 |
|
20 | 31,5 | 11 | 25 | 2,203.00 | |
191201 |
|
22 | 33,5 | 11 | 10 | 1,232.00 | |
191211 |
|
22 | 33,5 | 11 | 25 | 2,394.00 | |
191221 |
|
24 | 35,5 | 11 | 10 | 1,311.00 | |
191231 |
|
24 | 35,5 | 11 | 25 | 3,661.00 |
