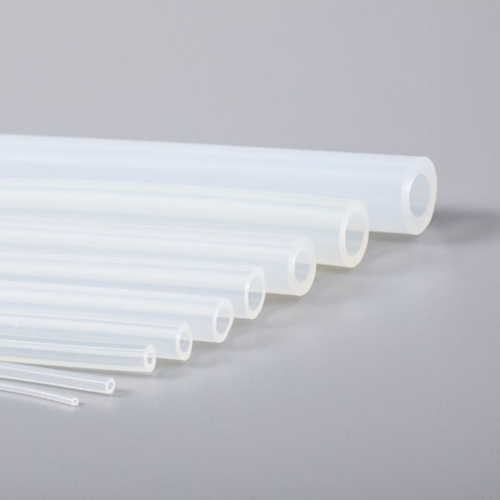

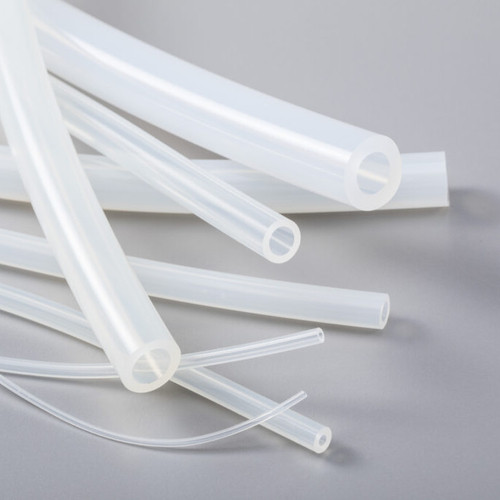

Silicone Tubing for Medical Engineering
Application area
Medical engineering, hospital technology, sterile technology, hygiene technology
Product specification
Conveying tubing
Excellent resistance to heat and hot air
Highest flexibility in cold
Very good resistance to ozone, aging, and weather
Antiadhesive (repulsive) surface properties
Excellent elasticity
Very good physiological properties, biocompatible
The nature of surface reduces the risk of damage to tissues and blood cells
Non-toxic, free from pyrogenes, and compatible with blood (tolerated by blood)
Medically pure
Free from natural rubber latex, dry natural rubber, or synthetic latex
Thermosensitive, immediately adapting to body temperature without decrease in lumen size
High flexibility
Technical specification
Material: silicone, MVQ (polysiloxane)
Colour: translucent
Shore hardness A: 60° ±5° (DIN 53505)
Temperature range: -60 to +200 °C; for a short period +250 °C
Density: 1.17 ±0.02 g/cm3 (ISO 1183-1 A)
Resistance to hot air: up to +200 °C
Sterilization: steam (+134 °C)
Elongation at break: 480 % (DIN 53504-S1)
Tearing strength: 10.0 N/mm2 (DIN 53504-S1)
Tear propagation resistance: 35 N/mm (ASTM D624 B)
Compression set: 33 % at +175 °C / 22 h (ISO 815-B)
Tolerance: DIN ISO 3302-1 E2
Regulations: BfR XV Silicone, FDA §177.2600, USP Class VI
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|
10455 |
|
1 | 3 | 5 | 53.00 | |
10456 |
|
1 | 3 | 10 | 85.00 | |
10457 |
|
1 | 4 | 5 | 89.00 | |
10458 |
|
1 | 4 | 10 | 146.00 | |
10459 |
|
1 | 6 | 5 | 152.00 | |
10460 |
|
1 | 6 | 10 | 249.00 | |
10461 |
|
1,5 | 3,5 | 5 | 81.00 | |
10462 |
|
1,5 | 3,5 | 10 | 131.00 | |
10463 |
|
1,5 | 5,5 | 5 | 100.00 | |
10464 |
|
1,5 | 5,5 | 10 | 162.00 | |
10465 |
|
2 | 3 | 5 | 83.00 | |
10466 |
|
2 | 3 | 10 | 134.00 | |
10467 |
|
2 | 5 | 5 | 83.00 | |
10468 |
|
2 | 5 | 10 | 134.00 | |
10469 |
|
2 | 6 | 5 | 117.00 | |
10470 |
|
2 | 6 | 10 | 189.00 | |
10471 |
|
3 | 4 | 5 | 93.00 | |
10472 |
|
3 | 4 | 10 | 147.00 | |
10473 |
|
3 | 6 | 5 | 90.00 | |
10474 |
|
3 | 6 | 10 | 142.00 | |
10475 |
|
3 | 7 | 5 | 112.00 | |
10476 |
|
3 | 7 | 10 | 180.00 | |
10477 |
|
4 | 5 | 5 | 85.00 | |
10478 |
|
4 | 5 | 10 | 139.00 | |
10479 |
|
4 | 7 | 5 | 137.00 | |
10480 |
|
4 | 7 | 10 | 225.00 | |
10481 |
|
4 | 8 | 5 | 150.00 | |
10482 |
|
4 | 8 | 10 | 246.00 | |
10483 |
|
5 | 6 | 5 | 91.00 | |
10484 |
|
5 | 6 | 10 | 144.00 | |
10485 |
|
5 | 8 | 5 | 144.00 | |
10486 |
|
5 | 8 | 10 | 238.00 | |
10487 |
|
5 | 9 | 5 | 148.00 | |
10488 |
|
5 | 9 | 10 | 241.00 | |
10489 |
|
6 | 8 | 5 | 120.00 | |
10490 |
|
6 | 8 | 10 | 196.00 | |
10491 |
|
6 | 9 | 5 | 129.00 | |
10492 |
|
6 | 9 | 10 | 210.00 | |
10493 |
|
6 | 10 | 5 | 174.00 | |
10494 |
|
6 | 10 | 10 | 284.00 | |
10495 |
|
6 | 11 | 5 | 213.00 | |
10496 |
|
6 | 11 | 10 | 341.00 | |
10497 |
|
6 | 12 | 5 | 170.00 | |
10498 |
|
6 | 12 | 10 | 270.00 | |
10499 |
|
7 | 9 | 5 | 114.00 | |
10500 |
|
7 | 9 | 10 | 186.00 | |
10501 |
|
7 | 10 | 5 | 134.00 | |
10502 |
|
7 | 10 | 10 | 218.00 | |
10503 |
|
7 | 11 | 5 | 173.00 | |
10504 |
|
7 | 11 | 10 | 267.00 | |
10505 |
|
7 | 12 | 5 | 187.00 | |
10506 |
|
7 | 12 | 10 | 289.00 | |
10507 |
|
7 | 13 | 5 | 200.00 | |
10508 |
|
7 | 13 | 10 | 318.00 | |
10509 |
|
8 | 10 | 5 | 160.00 | |
10510 |
|
8 | 10 | 10 | 248.00 | |
10511 |
|
8 | 11 | 5 | 170.00 | |
10512 |
|
8 | 11 | 10 | 270.00 | |
10513 |
|
8 | 12 | 5 | 175.00 | |
10514 |
|
8 | 12 | 10 | 279.00 | |
10515 |
|
8 | 13 | 5 | 220.00 | |
10516 |
|
8 | 13 | 10 | 350.00 | |
10517 |
|
8 | 14 | 5 | 220.00 | |
10518 |
|
8 | 14 | 10 | 350.00 | |
10519 |
|
9 | 11 | 5 | 164.00 | |
10520 |
|
9 | 11 | 10 | 268.00 | |
10521 |
|
9 | 12 | 5 | 180.00 | |
10522 |
|
9 | 12 | 10 | 278.00 | |
10523 |
|
9 | 13 | 5 | 190.00 | |
10524 |
|
9 | 13 | 10 | 303.00 | |
10525 |
|
9 | 14 | 5 | 201.00 | |
10526 |
|
9 | 14 | 10 | 319.00 | |
10527 |
|
9 | 15 | 5 | 253.00 | |
10528 |
|
9 | 15 | 10 | 404.00 | |
10529 |
|
10 | 12 | 5 | 181.00 | |
10530 |
|
10 | 12 | 10 | 283.00 | |
10531 |
|
10 | 14 | 5 | 185.00 | |
10532 |
|
10 | 14 | 10 | 284.00 | |
10533 |
|
10 | 15 | 5 | 187.00 | |
10534 |
|
10 | 15 | 10 | 298.00 | |
10535 |
|
10 | 16 | 5 | 195.00 | |
10536 |
|
10 | 16 | 10 | 312.00 | |
10537 |
|
12 | 14 | 5 | 178.00 | |
10538 |
|
12 | 14 | 10 | 290.00 | |
10539 |
|
12 | 16 | 5 | 206.00 | |
10540 |
|
12 | 16 | 10 | 328.00 | |
10541 |
|
12 | 18 | 5 | 263.00 | |
10542 |
|
12 | 18 | 10 | 419.00 | |
10543 |
|
14 | 16 | 5 | 263.00 | |
10544 |
|
14 | 16 | 10 | 419.00 | |
10545 |
|
14 | 18 | 5 | 263.00 | |
10546 |
|
14 | 18 | 10 | 419.00 | |
10547 |
|
14 | 20 | 5 | 273.00 | |
10548 |
|
14 | 20 | 10 | 436.00 |
