EPDM Double Jacket Chemical Tubing - peroxide-cured
Application area
Chemical industry, laboratory technology, industrial construction, process engineering, vehicle construction, cooling water technology.
Product specification

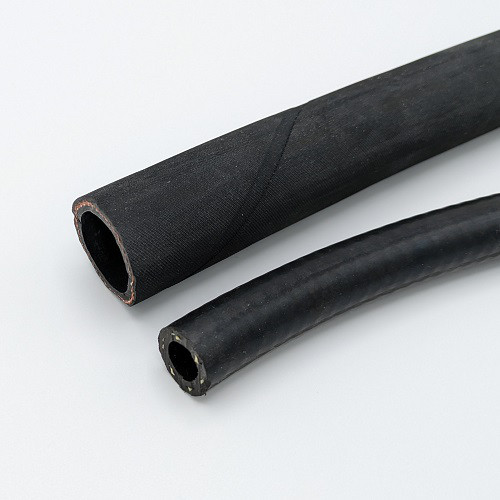

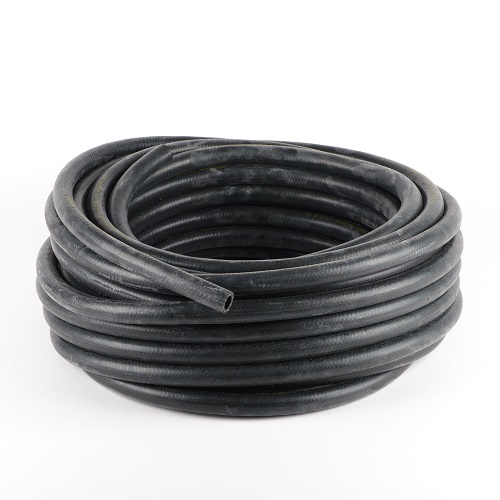

Flexible double jacket pressure tubing with elastic properties and fabric insert.
High-quality industrial hose made of peroxide-cured EPDM (inner liner and outer cover).
Suitable for hot water and cooling water with corrosion and antifreeze additives.
Good resistance to many alkalis, acids and polar solvents, except for mineral oils.
Peroxide-cured EPDM tubing qualities offer high durability and stability, which is crucial for industrial applications.
Higher stability and a wider operating temperature range than sulfur-cured EPDM qualities.
Good resistance to aging, cold and heat.
Very good weather resistance.
Technical specification
Material: Per-EPDM (Ethylene-propylene-diene rubber, peroxide-cured)

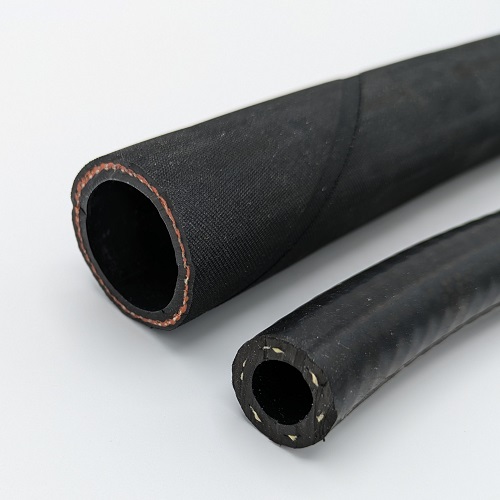

Insert: Aramidcord (from DN 20 mm: Rayoncord with red EPDM coating)
Colour:
Liner: black, smooth
Jacket: black, smooth (from DN 20 mm: black, cloth finish)
Temperature range: -40 to +135 °C (from DN 20 mm: -40 to +120 °C)
Max. operating pressure: 10 bar at +20 °C (from DN 20 mm: 6 bar at +20 °C)
Bursting pressure: approx. 3-fold operating pressure
Regulations: DIN 73411/96 Type B (up to DN 19 mm), DIN 73411 issue 79 (from DN 20 mm)
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck bar
|
Platzdruck bar
|
min. Biegeradius mm
|
Gewicht kg/m
|
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|---|---|
343100 |
|
10 | 17 | 10 | 30 | 100 | 0,15 | 5 | 124.00 | |
343101 |
|
10 | 17 | 10 | 30 | 100 | 0,15 | 10 | 222.00 | |
343102 |
|
12 | 19 | 10 | 30 | 120 | 0,16 | 5 | 140.00 | |
343103 |
|
12 | 19 | 10 | 30 | 120 | 0,16 | 10 | 248.00 | |
343104 |
|
13 | 20 | 10 | 30 | 130 | 0,17 | 5 | 146.00 | |
343105 |
|
13 | 20 | 10 | 30 | 130 | 0,17 | 10 | 258.00 | |
343106 |
|
15 | 22 | 10 | 30 | 150 | 0,19 | 5 | 165.00 | |
343107 |
|
15 | 22 | 10 | 30 | 150 | 0,19 | 10 | 292.00 | |
343108 |
|
16 | 23 | 10 | 30 | 160 | 0,2 | 5 | 170.00 | |
343109 |
|
16 | 23 | 10 | 30 | 160 | 0,2 | 10 | 300.00 | |
343110 |
|
18 | 25 | 10 | 30 | 180 | 0,23 | 5 | 174.00 | |
343111 |
|
18 | 25 | 10 | 30 | 180 | 0,23 | 10 | 306.00 | |
343112 |
|
19 | 26 | 10 | 30 | 190 | 0,24 | 5 | 178.00 | |
343113 |
|
19 | 26 | 10 | 30 | 190 | 0,24 | 10 | 315.00 | |
343114 |
|
20 | 27 | 6 | 18 | 200 | 0,3 | 5 | 298.00 | |
343115 |
|
20 | 27 | 6 | 18 | 200 | 0,3 | 10 | 551.00 | |
343116 |
|
22 | 29 | 6 | 18 | 220 | 0,32 | 5 | 307.00 | |
343117 |
|
22 | 29 | 6 | 18 | 220 | 0,32 | 10 | 568.00 | |
343118 |
|
25 | 32 | 6 | 18 | 240 | 0,36 | 5 | 312.00 | |
343119 |
|
25 | 32 | 6 | 18 | 240 | 0,36 | 10 | 579.00 | |
343120 |
|
28 | 36 | 6 | 18 | 250 | 0,42 | 5 | 366.00 | |
343121 |
|
28 | 36 | 6 | 18 | 250 | 0,42 | 10 | 676.00 | |
343122 |
|
30 | 38 | 6 | 18 | 260 | 0,46 | 5 | 372.00 | |
343123 |
|
30 | 38 | 6 | 18 | 260 | 0,46 | 10 | 688.00 | |
343124 |
|
32 | 40 | 6 | 18 | 280 | 0,49 | 5 | 398.00 | |
343125 |
|
32 | 40 | 6 | 18 | 280 | 0,49 | 10 | 736.00 | |
343126 |
|
35 | 43 | 6 | 18 | 300 | 0,54 | 3 | 246.00 | |
343127 |
|
35 | 43 | 6 | 18 | 300 | 0,54 | 6 | 455.00 | |
343128 |
|
38 | 48 | 6 | 18 | 320 | 0,78 | 3 | 304.00 | |
343129 |
|
38 | 48 | 6 | 18 | 320 | 0,78 | 6 | 562.00 | |
343130 |
|
40 | 50 | 6 | 18 | 340 | 0,82 | 3 | 320.00 | |
343131 |
|
40 | 50 | 6 | 18 | 340 | 0,82 | 6 | 589.00 | |
343132 |
|
42 | 52 | 6 | 18 | 360 | 0,85 | 3 | 331.00 | |
343133 |
|
42 | 52 | 6 | 18 | 360 | 0,85 | 6 | 610.00 | |
343134 |
|
45 | 55 | 6 | 18 | 390 | 0,9 | 3 | 342.00 | |
343135 |
|
45 | 55 | 6 | 18 | 390 | 0,9 | 6 | 632.00 | |
343136 |
|
48 | 58 | 6 | 18 | 420 | 0,96 | 3 | 354.00 | |
343137 |
|
48 | 58 | 6 | 18 | 420 | 0,96 | 6 | 651.00 | |
343138 |
|
50 | 60 | 6 | 18 | 440 | 1 | 3 | 358.00 | |
343139 |
|
50 | 60 | 6 | 18 | 440 | 1 | 6 | 660.00 | |
343140 |
|
55 | 65 | 6 | 18 | 460 | 1,1 | 3 | 399.00 | |
343141 |
|
55 | 65 | 6 | 18 | 460 | 1,1 | 6 | 738.00 | |
343142 |
|
60 | 70 | 6 | 18 | 500 | 1,2 | 3 | 428.00 | |
343143 |
|
60 | 70 | 6 | 18 | 500 | 1,2 | 6 | 792.00 |
