Mini Barb Connector (reduzing) - with collar

Mini Barb Connector (reduzing) - with collar
Description General Information
Description
Product specification Tubing connection on both sides, for flexible tubing more
Close menu

Product specification

Tubing connection on both sides, for flexible tubing

General Information
General Information PA 6.6 (polyamide 6.6, nylon) Colour: white Temperature... more
Close menu

General Information

PA 6.6 (polyamide 6.6, nylon)

Colour: white

Temperature range: -40 to +115 °C

Max. operating pressure: 3 bar at +20 °C

Yellowing and reduction of strength depending on temperature and interaction time

Regulatory compliance to RoHS, BPA, DEHP

Good sterilization with autoclave, ethylene oxide and gamma radiation (may discolour to brownish hue)

PP (polypropylene)

Colour: natural

Temperature range: -5 to +120 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, FDA 21 CFR 177.1520, RoHS, BPA, DEHP, ADI-free

Good sterilization with ethylene oxide and gamma radiation (bis 6 Mrads; may discolor the material with repeated sterilization), autoclave limited to short term +121 °C for 20 min.

PVDF (Polyvinylidene fluoride)

Colour: natural

Temperature range: -40 to +140 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, FDA 21 CFR 177.2510, RoHS, BPA-free, DEHP-free, ADI-free

PVDF is non-toxic and can be used in the food industry without hesitation. According to FDA (USA), the material is physiologically safe. It is as unsuitable as glass for propagation and growing of microorganisms.

Excellent sterilization with autoclave, ethylene oxide and gamma radiation (will discolour to brownish hue)

Item Image Tubing inside Ø (A)
mm
 Schlauch Innen-Ø (B)
mm
 Werkstoff Farbe Einheit
Stück
 Price
Euro* 		Buy

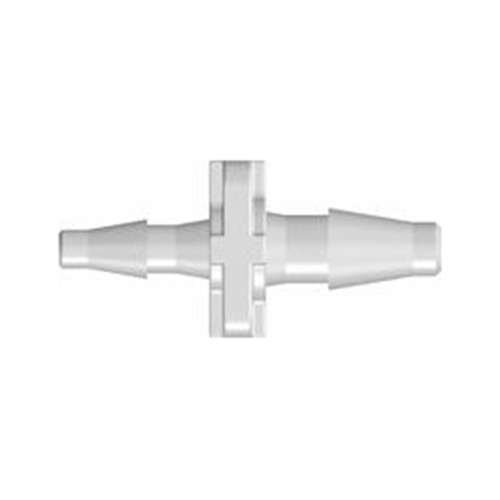

29189
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 2,4 PA 6.6 weiß 15 52.00
29190
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 2,4 PA 6.6 schwarz 15 52.00
29191
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 2,4 PP natur 10 42.00
29192
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 2,4 PVDF natur 5 50.00
29193
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 3,2 PA 6.6 weiß 15 52.00
29194
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 3,2 PA 6.6 schwarz 15 52.00
29195
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 3,2 PP natur 10 42.00

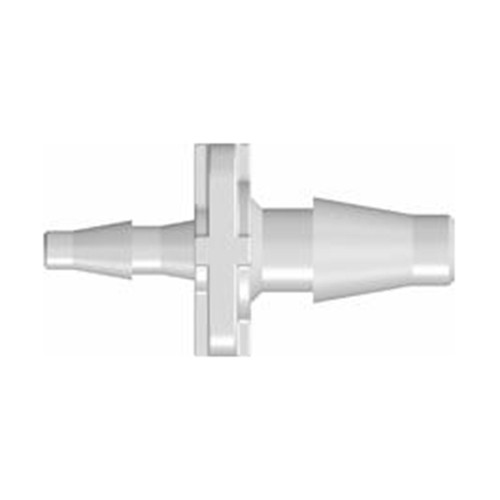

29196
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 3,2 PVDF natur 5 50.00
29197
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 4 PA 6.6 weiß 15 52.00
29198
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 4 PA 6.6 schwarz 15 52.00
29199
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 4 PP natur 10 42.00

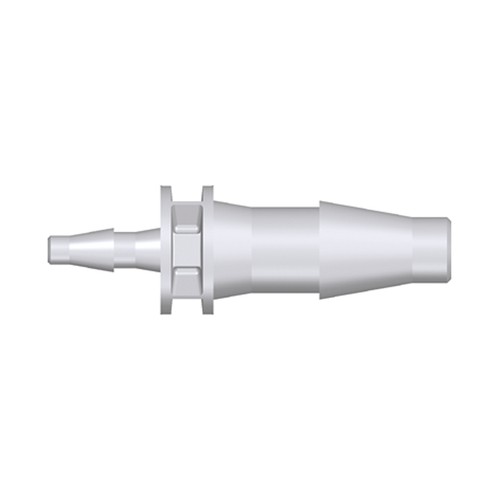

29200
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 4 PVDF natur 5 50.00
29211
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 4,8 PA 6.6 weiß 15 52.00
29212
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 4,8 PA 6.6 schwarz 15 52.00
29213
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 4,8 PP natur 10 42.00

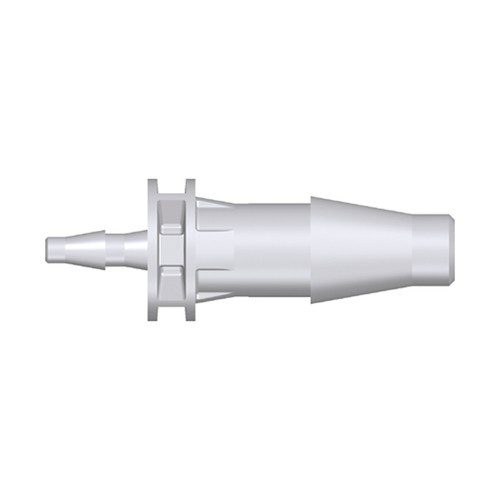

29214
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
1,6 4,8 PVDF natur 5 50.00

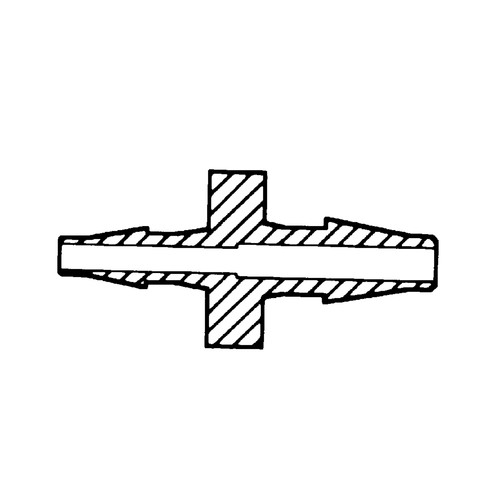

29215
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
2,4 3,2 PA 6.6 weiß 15 52.00
29216
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
2,4 3,2 PA 6.6 schwarz 15 52.00

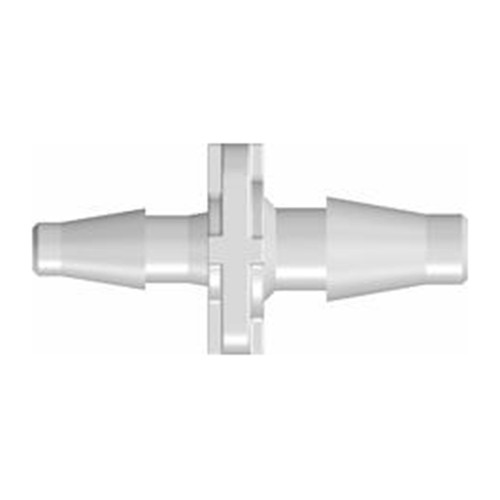

29217
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
2,4 3,2 PP natur 10 42.00

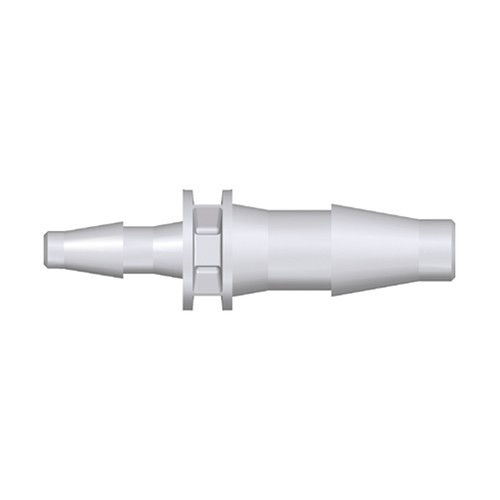

29219
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
2,4 4 PA 6.6 weiß 15 52.00
29220
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
2,4 4 PA 6.6 schwarz 15 52.00
29221
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
2,4 4 PP natur 10 42.00
29222
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
2,4 4 PVDF natur 5 51.00

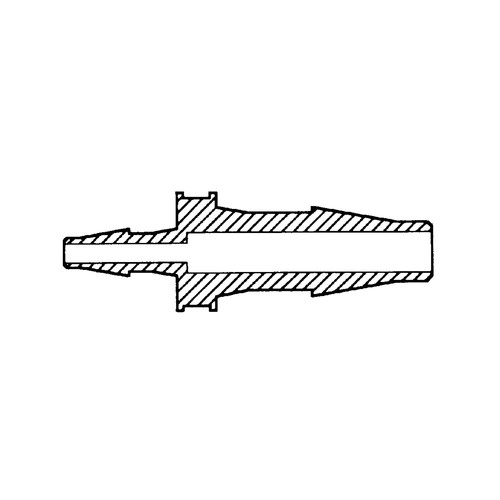

29223
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
2,4 4,8 PA 6.6 weiß 15 52.00
29224
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
2,4 4,8 PA 6.6 schwarz 15 52.00
29225
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
2,4 4,8 PP natur 10 42.00

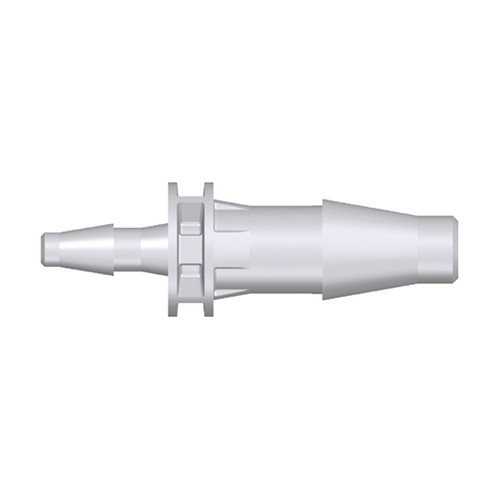

29226
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
2,4 4,8 PVDF natur 5 51.00
29227
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
3,2 4 PA 6.6 weiß 15 52.00
29228
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
3,2 4 PA 6.6 schwarz 15 52.00
29229
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
3,2 4 PP natur 10 42.00

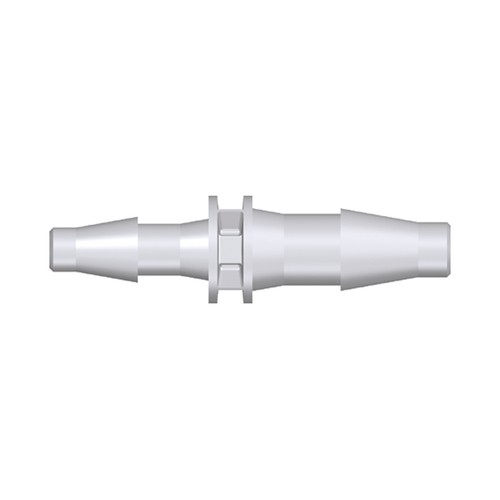

29230
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
3,2 4 PVDF natur 5 51.00
29231
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
3,2 4,8 PA 6.6 weiß 15 52.00

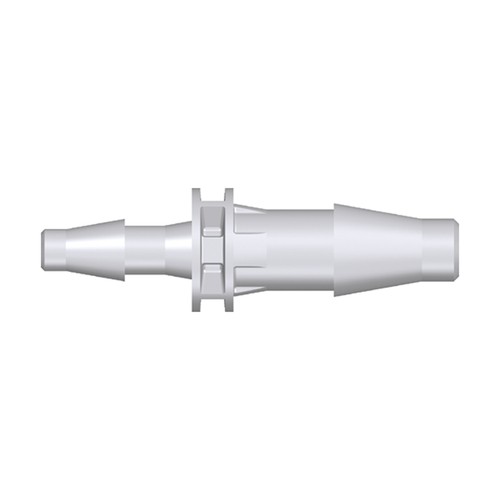

29232
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
3,2 4,8 PA 6.6 schwarz 15 52.00
29233
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
3,2 4,8 PP natur 10 42.00
29234
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
3,2 4,8 PVDF natur 5 51.00

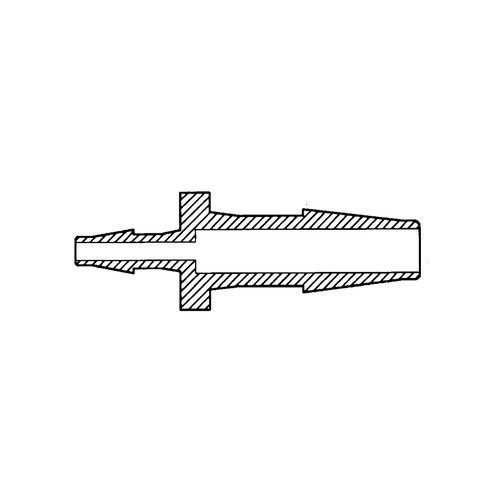

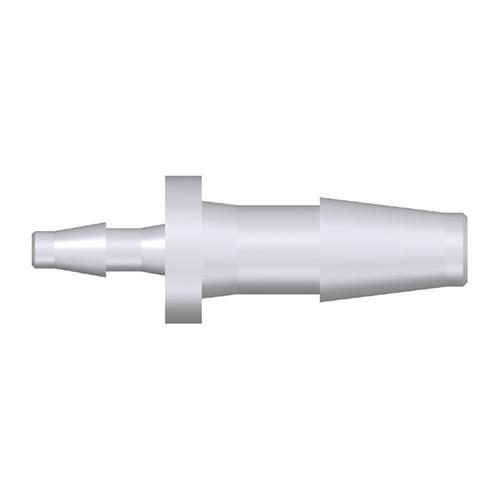

29235
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
3,2 6,4 PA 6.6 weiß 15 52.00
29236
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
3,2 6,4 PA 6.6 schwarz 15 52.00
29237
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
3,2 6,4 PP natur 10 42.00

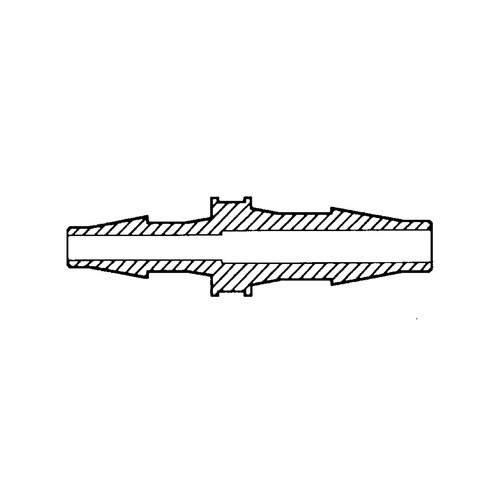

29238
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
4 4,8 PA 6.6 weiß 15 52.00
29239
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
4 4,8 PA 6.6 schwarz 15 52.00
29240
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
4 4,8 PP natur 10 43.00

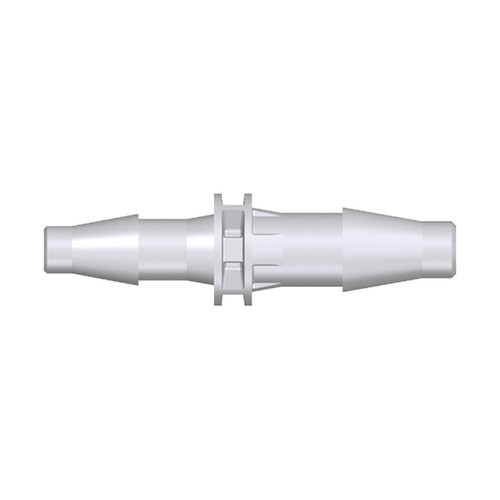

29241
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
4 4,8 PVDF natur 5 51.00
29242
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
4 6,4 PA 6.6 weiß 15 52.00
29244
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
4 6,4 PP natur 10 42.00

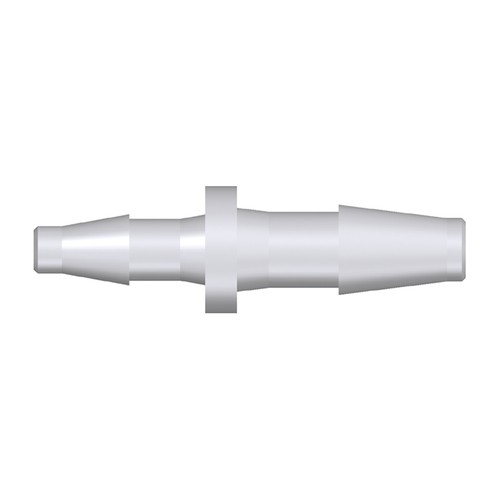

29245
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
4,8 6,4 PA 6.6 weiß 15 52.00
29247
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
Mini Barb Connector (reduzing) - with collar Mini Barb Connector (reduzing) - with collar
4,8 6,4 PP natur 10 42.00
Similar products
Similar products
Mini Barb Connector - without collar Mini Barb Connector - without collar
Mini Elbow Barb Connector - rounded elbow Mini Elbow Barb Connector - rounded elbow
Mini T-Shaped Barb Connector - square elbow Mini T-Shaped Barb Connector - square elbow
Mini T-Shaped Barb Connector (reduzing) - symmetrical Mini T-Shaped Barb Connector (reduzing) - symmetrical
Mini T-Shaped Barb Connector (reduzing) - asymmetrical Mini T-Shaped Barb Connector (reduzing) - asymmetrical
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
Mini Screw-in Connector with male thread NPT 1/8" Mini Screw-in Connector with male thread NPT 1/8"
Mini Elbow Screw-in Connector with male thread UNF 10-32 - short Mini Elbow Screw-in Connector with male thread UNF 10-32 - short
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
Mini Elbow Screw-in Connector with male thread NPT 1/8" Mini Elbow Screw-in Connector with male thread NPT 1/8"
Customers also bought
Mini Barb Connector - with collar Mini Barb Connector - with collar
Mini Y-Shaped Barb Connector Mini Y-Shaped Barb Connector
Mini Screw-in Connector with male thread UNF 1/4"-28 Mini Screw-in Connector with male thread UNF 1/4"-28
PP Quick-Disconnect Nipple, NW 1.6 mm PP Quick-Disconnect Nipple, NW 1.6 mm
PP Quick-Disconnect Coupling, NW 1.6 mm PP Quick-Disconnect Coupling, NW 1.6 mm
Y-Shaped Barb Union made of PP or PVDF Y-Shaped Barb Union made of PP or PVDF
TYGON®-Tubing for Medical Engineering TYGON®-Tubing for Medical Engineering
Mini Screw-in Connector with male thread NPT 1/8" Mini Screw-in Connector with male thread NPT 1/8"
Silicone Chemical Tubing - Standard Silicone Chemical Tubing - Standard
Mini T-Shaped Barb Connector (reduzing) - symmetrical Mini T-Shaped Barb Connector (reduzing) - symmetrical
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Male) for Flexible Tubing Luer-Lock Tubing Adapter (Male) for Flexible Tubing
Puri-Flex®-Pump Tubing (based on silicone) Puri-Flex®-Pump Tubing (based on silicone)
Straight Connector with Male Thread made of PP or PVDF - short Straight Connector with Male Thread made of PP or PVDF - short
Straight Barb Connector with Male Thread made of POM Straight Barb Connector with Male Thread made of POM
Mini Barb Connector (reduzing) - without collar Mini Barb Connector (reduzing) - without collar
Straight Tri-Clamp Tube Connector made of PP, PVDF or PFA Straight Tri-Clamp Tube Connector made of PP, PVDF or PFA
Straight Barb Union (reducing) made of PP Straight Barb Union (reducing) made of PP
Mini Screw-in Connector with male thread UNF 10-32 - long Mini Screw-in Connector with male thread UNF 10-32 - long
Mini Screw-in Connector with male thread UNF 10-32 - short Mini Screw-in Connector with male thread UNF 10-32 - short
FEP Chemical Tubing FEP Chemical Tubing
TYGON®-Laboratory and Vacuum Tubing - FDA TYGON®-Laboratory and Vacuum Tubing - FDA
Tube Pinch Valve - standard - with 1 tubing Tube Pinch Valve - standard - with 1 tubing
Three-Way Cock made of LDPE/PP or PVDF - T-bore Three-Way Cock made of LDPE/PP or PVDF - T-bore
Straight Pipe Connector with Male Thread made of PP or PVDF - conductive and antistatic Straight Pipe Connector with Male Thread made of PP or PVDF - conducti ...
T-Shaped Pipe Connector made of PP - macro T-Shaped Pipe Connector made of PP - macro
Elbow Pipe Connector made of PP - macro Elbow Pipe Connector made of PP - macro
Straight Pipe Connector with Male Thread made of PP, PVDF or PTFE Straight Pipe Connector with Male Thread made of PP, PVDF or PTFE
Straight Connector with Female Thread made of PP or PVDF Straight Connector with Female Thread made of PP or PVDF
Mini Elbow Barb Connector - rounded elbow Mini Elbow Barb Connector - rounded elbow
305011 PTFE Antista Chemical Tubing - electrically conductive
Silicone Tubing for Medical Engineering Silicone Tubing for Medical Engineering
Silicone Pump Tubing - Standard Silicone Pump Tubing - Standard
TPE-S Tubing for Medical Engineering and Pharmaceutical Technology TPE-S Tubing for Medical Engineering and Pharmaceutical Technology
EPDM/PP Micro Pump Tubing EPDM/PP Micro Pump Tubing
PVC Colour Chemical Tubing - imperial, shore 45 PVC Colour Chemical Tubing - imperial, shore 45
RCT®-Accessories: Replacement Filter made of PTFE RCT®-Accessories: Replacement Filter made of PTFE
Mini Screw-in Connector with male thread M6x1 Mini Screw-in Connector with male thread M6x1
Mini Barb Connector - without collar Mini Barb Connector - without collar
PTFE Capillary Tubing - imperial PTFE Capillary Tubing - imperial
Customers also viewed
Straight Barb Union (reducing) made of PP Straight Barb Union (reducing) made of PP
Straight Barb Connector with Male Thread made of PP, PVDF or PTFE Straight Barb Connector with Male Thread made of PP, PVDF or PTFE
Straight Barb Union (reducing) made of HDPE Straight Barb Union (reducing) made of HDPE
Straight Barb Union (reducing) made of TPX Straight Barb Union (reducing) made of TPX
Mini Barb Connector - without collar Mini Barb Connector - without collar
Straight Barb Union (reducing) made of POM Straight Barb Union (reducing) made of POM
EPDM Plate - Shore 65° EPDM Plate - Shore 65°
Sintered Plate made of Porous PTFE Sintered Plate made of Porous PTFE
Pull Tab Flexicap made of PVC-P (plasticized PVC, soft) - high-temperature resistant Pull Tab Flexicap made of PVC-P (plasticized PVC, soft) - high-tempera ...
Plate made of LDPE - plasticized, Food Plate made of LDPE - plasticized, Food
Silicone Plate - Shore 60° Silicone Plate - Shore 60°
High-Quality Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Ball Cock made of PP, PVDF or PFA - injection-molded
PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm
PVDF Quick-Disconnect Coupling, NW 5.0 mm PVDF Quick-Disconnect Coupling, NW 5.0 mm
Straight Connector made of PP or PVDF Straight Connector made of PP or PVDF
Straight Barb Connector with Female Thread made of PP, PVDF or PTFE Straight Barb Connector with Female Thread made of PP, PVDF or PTFE
Mini Screw-in Connector with male thread M6x1 Mini Screw-in Connector with male thread M6x1
Mini Barb Connector (reduzing) - without collar Mini Barb Connector (reduzing) - without collar
Mini Barb Connector - with collar Mini Barb Connector - with collar
Luer-Lock Adapter (Male) with Male Thread Luer-Lock Adapter (Male) with Male Thread
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
PP Pressure Pipe PP Pressure Pipe
Viewed
Functionalities

Functional cookies are absolutely necessary for the functionality of the webshop. These cookies assign a unique random ID to your browser to ensure your uninterrupted shopping experience across multiple page views.

Session:
The session cookie stores your shopping data over several page views and is therefore essential for your personal shopping experience.
Notepad:
The cookie enables a notepad to be made available to the user across sessions. This means that the notepad remains available even over several browser sessions.
Device Assignment:
Device Assignment
CSRF-Token:
The CSRF token cookie contributes to your security. It strengthens the protection of forms against unwanted hacker attacks.
Login Token:
The Login Token is used for the recognition of users across sessions. The cookie does not contain any personal data, but allows personalisation over several browser sessions.
Cache exception:
The cache exception cookie allows users to read individual content independent of the cache memory.
Cookies Active Check:
The cookie is used by the website to determine whether cookies are allowed by the site user's browser.
Cookie settings:
The cookie is used to store the cookie settings of the site user over several browser sessions.
Herkunftsinformationen:
Das Cookie speichert die Herkunftsseite und die zuerst besuchte Seite des Benutzers für eine weitere Verwendung.
CSRF-Token
Cookie-Einstellungen
PayPal-Zahlungen
Popups und Mitteilungen
Session
Session
CSRF-Token
Aktivierte Cookies:
Speichert welche Cookies bereits vom Benutzer zum ersten Mal akzeptiert wurden.
Session
CSRF-Token
Session
Marketing

Marketing Cookies dienen dazu Werbeanzeigen auf der Webseite zielgerichtet und individuell über mehrere Seitenaufrufe und Browsersitzungen zu schalten.

Google Conversion Tracking:
Das Google Conversion Tracking Cookie wird genutzt um Conversions auf der Webseite effektiv zu erfassen. Diese Informationen werden vom Seitenbetreiber genutzt um Google AdWords Kampagnen gezielt einzusetzen.
Google AdSense:
Das Cookie wird von Google AdSense für Förderung der Werbungseffizienz auf der Webseite verwendet.
Tracking

Tracking cookies help the shop operator to collect and evaluate information about the behaviour of users on their website.

Google Analytics:
Google Analytics is used for traffic analysis of the website. Statistics on website activity can be created and read out.
Partnerprogramm
Yandex Metrica:
Yandex Metrica Cookies werden zur der Datenverkehranalyse der Webseite eingesetzt. Dabei können Statistiken über Webseitenaktivitäten erstellt und ausgelesen werden.
Yandex Metrica:
Yandex Metrica Cookies werden zur der Datenverkehranalyse der Webseite eingesetzt. Dabei können Statistiken über Webseitenaktivitäten erstellt und ausgelesen werden.
This website uses cookies to ensure you get the best experience on our website. More information
