Luer-Lock Tubing Adapter (Female) for Flexible Tubing

Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Product specification Precision adapters, female Luer-Lock to inched hose nozzles. more

Product specification

Precision adapters, female Luer-Lock to inched hose nozzles.

General Information PA 6.6 (polyamide 6.6, nylon) Colour: white Temperature range:... more

General Information

PA 6.6 (polyamide 6.6, nylon)

Colour: white

Temperature range: -40 to +115 °C

Max. operating pressure: 3 bar at +20 °C

Yellowing and reduction of strength depending on temperature and interaction time

Regulatory compliance to RoHS, BPA-free, DEHP-free, BSE/ADI-free

Good sterilization with autoclave, ethylene oxide and gamma radiation (may discolour to brownish hue)

PP (polypropylene)

Colour: natural

Temperature range: -5 to +120 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, FDA 21 CFR 177.1520, RoHS, BPA, DEHP, ADI-free

Good sterilization with ethylene oxide and gamma radiation (bis 6 Mrads), autoclave limited to +121 °C for 20 min.

PC (polycarbonate)

Colour: transparent-clear

Temperature range: -30 to +110 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, ISO 10993, FDA 21 CFR 177.1580, RoHS, DEHP

Good sterilization with ethylene oxide and gamma radiation (excellent up to 10 Mrads with minor loss of physical properties), autoclave not recommended

RSPC (Radiation Stable Polycarbonate)

Colour: transparent-violet

Temperature range: -30 to +110 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to ISO 10993, RoHS, DEHP

Good sterilization with ethylene oxide and gamma radiation (excellent up to 10 Mrads with minor loss of physical properties; light violet hue turns clear upon sterilization), autoclave not recommended

No FDA or USP clearance, not BSE / ADI-free!

Item Image Tubing inside Ø
inch
Schlauch Innen-Ø
mm
Werkstoff Einheit
Stück
Price
Euro*
Buy
15757
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
1/16" 1,6 PA 6.6 20 56.00

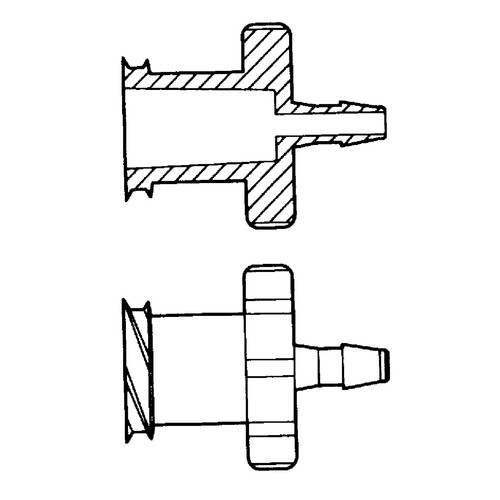

15758
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
1/16" 1,6 PP 15 52.00
15759
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
1/16" 1,6 PC 10 39.00

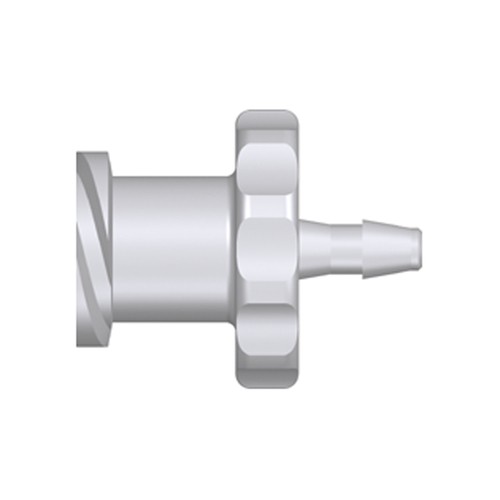

15760
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
1/16" 1,6 RSPC 10 39.00

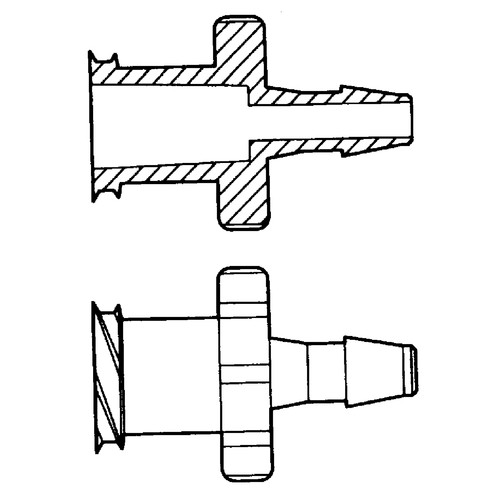

15761
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
3/32" 2,4 PA 6.6 20 56.00
15762
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
3/32" 2,4 PP 15 52.00
15763
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
3/32" 2,4 PC 10 39.00

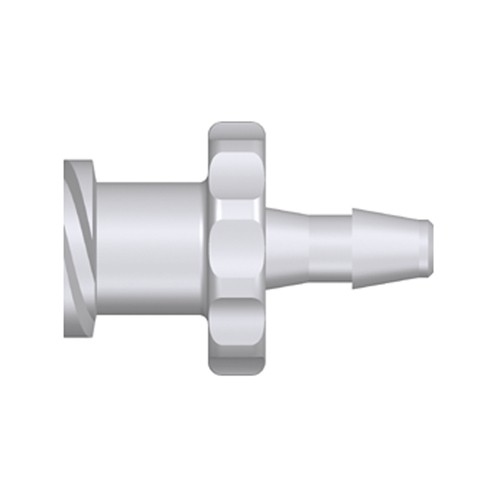

15764
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
3/32" 2,4 RSPC 10 39.00

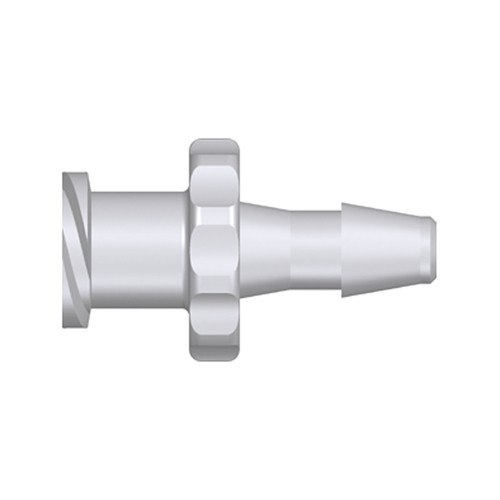

15765
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
1/8" 3,2 PA 6.6 20 56.00
15766
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
1/8" 3,2 PP 15 52.00

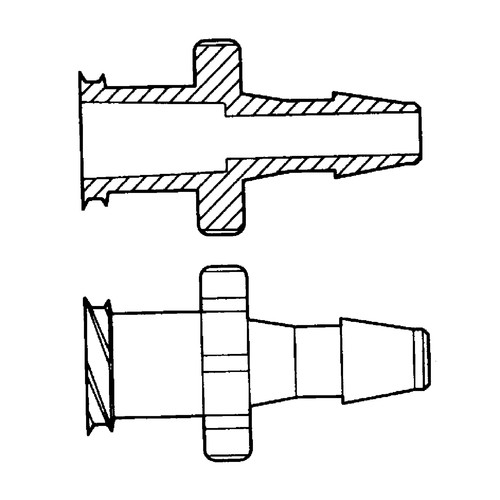

15767
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
1/8" 3,2 PC 10 39.00
15768
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
1/8" 3,2 RSPC 10 39.00
15769
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
5/32" 4 PA 6.6 15 52.00

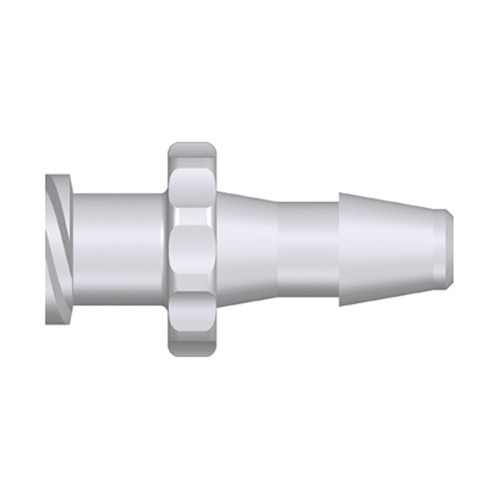

15770
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
5/32" 4 PP 10 39.00

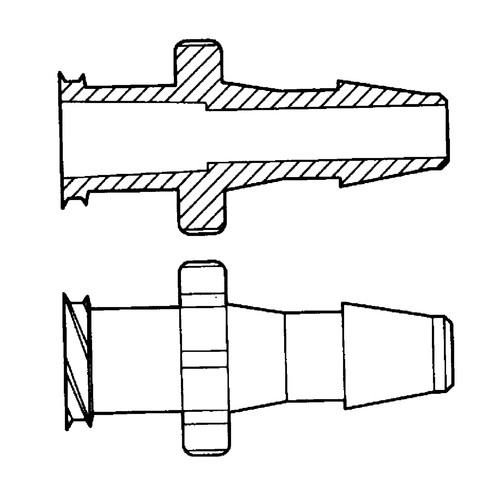

15771
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
5/32" 4 PC 10 44.00
15772
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
5/32" 4 RSPC 10 44.00

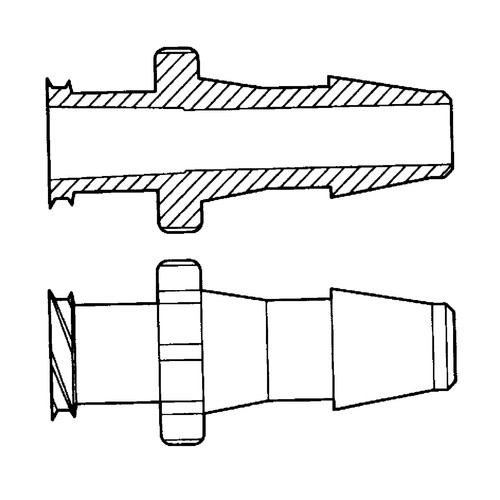

15773
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
3/16" 4,8 PA 6.6 15 52.00
15774
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
3/16" 4,8 PP 10 39.00
15775
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
3/16" 4,8 PC 10 44.00

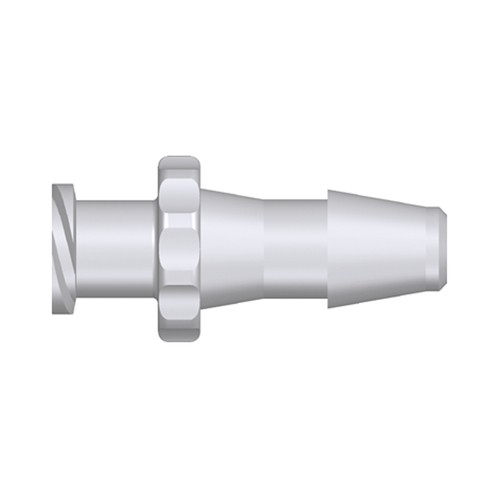

15776
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
3/16" 4,8 RSPC 10 44.00
15708
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
1/4" 6,4 PA 6.6 20 67.00

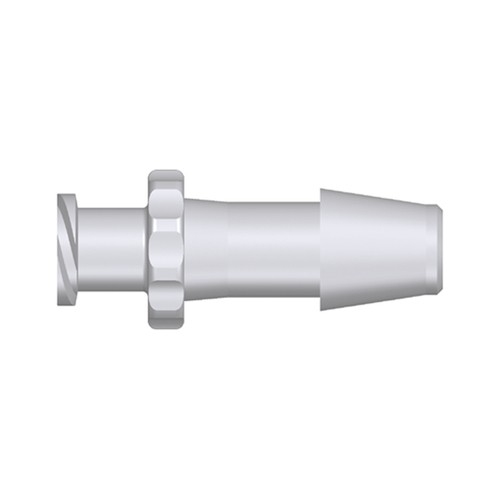

15709
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
1/4" 6,4 PP 15 58.00
15710
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
1/4" 6,4 PC 15 68.00
15711
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
Luer-Lock Tubing Adapter (Female) for Flexible Tubing Luer-Lock Tubing Adapter (Female) for Flexible Tubing
1/4" 6,4 RSPC 15 68.00
