PA Chemical Tubing - Standard
Product specification Good temperature resistance Good mechanical stability Good abrasion... more
Product specification
Good temperature resistance
Good mechanical stability
Good abrasion resistance
High impact toughness
Very good UV-resistance
Low moisture absorption due to very low density
Low permeability to gas
Material conforms to DIN 73378/74324
Technical specification
Material: PA 12 soft (polyamide 12)
Temperature range: -40 to +90 °C
Melting temperature: +173 °C
Sterilization: steam (+136 °C); gas (ethylene oxide); gamma-rays
Density: 1.02 g/cm3 (ISO 1183)
Tensile strength: 25 MPa (ISO 527-1,2)
Bending strength: 19 MPa (ISO 178)
Tensile modulus: 360 MPa (ISO 527-1,2)
Impact toughness:
at +23 °C 115 kJ/m2 - partial break (ISO 179/1eA)
at -40 °C 4 kJ/m2 - complete break (ISO 179/1eA)
Rockwell hardness: 51 (ISO 2039-2)
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
Toleranz mm
|

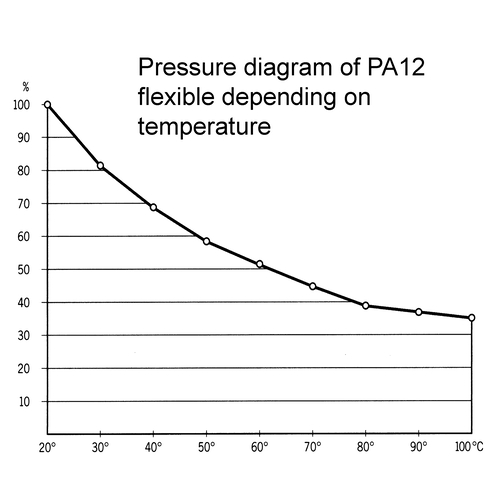

max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Farbe |
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|---|---|
339650 |
|
1 | 2 | ±0,05 | 60 | 15 | natur | 5 | 30.00 | |
339651 |
|
1 | 2 | ±0,05 | 60 | 15 | natur | 15 | 60.00 | |
25804 |
|
2 | 4 | ±0,05 | 45 | 20 | natur | 5 | 24.00 | |
25805 |
|
2 | 4 | ±0,05 | 45 | 20 | natur | 15 | 47.00 | |
25806 |
|
2 | 4 | ±0,05 | 45 | 20 | schwarz | 5 | 24.00 | |
25807 |
|
2 | 4 | ±0,05 | 45 | 20 | schwarz | 15 | 47.00 | |
25816 |
|
2,5 | 4 | ±0,10 | 31 | 20 | natur | 5 | 24.00 | |
25817 |
|
2,5 | 4 | ±0,10 | 31 | 20 | natur | 15 | 47.00 | |
25818 |
|
2,5 | 4 | ±0,10 | 31 | 20 | schwarz | 5 | 24.00 | |
25819 |
|
2,5 | 4 | ±0,10 | 31 | 20 | schwarz | 15 | 47.00 | |
25828 |
|
2,9 | 4 | ±0,05 | 19 | 20 | natur | 5 | 24.00 | |
25829 |
|
2,9 | 4 | ±0,05 | 19 | 20 | natur | 15 | 47.00 | |
25830 |
|
3 | 4 | ±0,05 | 19 | 20 | schwarz | 5 | 24.00 | |
25831 |
|
3 | 4 | ±0,05 | 19 | 20 | schwarz | 15 | 47.00 | |
25852 |
|
3 | 5 | ±0,05 | 34 | 25 | natur | 5 | 29.00 | |
25853 |
|
3 | 5 | ±0,05 | 34 | 25 | natur | 15 | 61.00 | |
25854 |
|
3 | 5 | ±0,05 | 34 | 25 | schwarz | 5 | 29.00 | |
25855 |
|
3 | 5 | ±0,05 | 34 | 25 | schwarz | 15 | 61.00 | |
25864 |
|
4 | 5 | ±0,10 | 15 | 25 | natur | 5 | 29.00 | |
25865 |
|
4 | 5 | ±0,10 | 15 | 25 | natur | 15 | 61.00 | |
25866 |
|
4 | 5 | ±0,10 | 15 | 25 | schwarz | 5 | 29.00 | |
25867 |
|
4 | 5 | ±0,10 | 15 | 25 | schwarz | 15 | 61.00 | |
25876 |
|
3 | 6 | ±0,10 | 45 | 25 | natur | 5 | 35.00 | |
25877 |
|
3 | 6 | ±0,10 | 45 | 25 | natur | 15 | 78.00 | |
25878 |
|
3 | 6 | ±0,10 | 45 | 25 | schwarz | 5 | 35.00 | |
25879 |
|
3 | 6 | ±0,10 | 45 | 25 | schwarz | 15 | 78.00 | |
25888 |
|
4 | 6 | ±0,05 | 27 | 25 | natur | 5 | 33.00 | |
25889 |
|
4 | 6 | ±0,05 | 27 | 25 | natur | 15 | 65.00 | |
25890 |
|
4 | 6 | ±0,05 | 27 | 25 | schwarz | 5 | 33.00 | |
25891 |
|
4 | 6 | ±0,05 | 27 | 25 | schwarz | 15 | 65.00 | |
25894 |
|
4 | 6 | ±0,05 | 27 | 25 | blau | 5 | 33.00 | |
25895 |
|
4 | 6 | ±0,05 | 27 | 25 | blau | 15 | 65.00 | |
25896 |
|
4 | 6 | ±0,05 | 27 | 25 | gelb | 5 | 33.00 | |
25897 |
|
4 | 6 | ±0,05 | 27 | 25 | gelb | 15 | 65.00 | |
25898 |
|
4 | 6 | ±0,05 | 27 | 25 | grün | 5 | 33.00 | |
25899 |
|
4 | 6 | ±0,05 | 27 | 25 | grün | 15 | 65.00 | |
25912 |
|
4 | 7 | ±0,15 | 36 | 40 | natur | 5 | 35.00 | |
25913 |
|
4 | 7 | ±0,15 | 36 | 40 | natur | 15 | 69.00 | |
25924 |
|
5 | 7 | ±0,15 | 22 | 40 | natur | 5 | 35.00 | |
25925 |
|
5 | 7 | ±0,15 | 22 | 40 | natur | 15 | 69.00 | |
25926 |
|
5 | 7 | ±0,15 | 22 | 40 | schwarz | 5 | 35.00 | |
25927 |
|
5 | 7 | ±0,15 | 22 | 40 | schwarz | 15 | 69.00 | |
25936 |
|
4 | 8 | ±0,15 | 45 | 50 | natur | 5 | 42.00 | |
25937 |
|
4 | 8 | ±0,15 | 45 | 50 | natur | 15 | 87.00 | |
25938 |
|
4 | 8 | ±0,15 | 45 | 50 | schwarz | 5 | 42.00 | |
25939 |
|
4 | 8 | ±0,15 | 45 | 50 | schwarz | 15 | 87.00 | |
25948 |
|
5 | 8 | ±0,10 | 30 | 40 | natur | 5 | 35.00 | |
25949 |
|
5 | 8 | ±0,10 | 30 | 40 | natur | 15 | 69.00 | |
25950 |
|
5 | 8 | ±0,10 | 30 | 40 | schwarz | 5 | 35.00 | |
25951 |
|
5 | 8 | ±0,10 | 30 | 40 | schwarz | 15 | 69.00 | |
25954 |
|
5 | 8 | ±0,10 | 30 | 40 | blau | 5 | 35.00 | |
25955 |
|
5 | 8 | ±0,10 | 30 | 40 | blau | 15 | 69.00 | |
25960 |
|
6 | 8 | ±0,10 | 19 | 30 | natur | 5 | 35.00 | |
25961 |
|
6 | 8 | ±0,10 | 19 | 30 | natur | 15 | 69.00 | |
25962 |
|
6 | 8 | ±0,10 | 19 | 30 | schwarz | 5 | 35.00 | |
25963 |
|
6 | 8 | ±0,10 | 19 | 30 | schwarz | 15 | 69.00 | |
25964 |
|
6 | 8 | ±0,10 | 19 | 30 | rot | 5 | 35.00 | |
25965 |
|
6 | 8 | ±0,10 | 19 | 30 | rot | 15 | 69.00 | |
25966 |
|
6 | 8 | ±0,10 | 19 | 30 | blau | 5 | 35.00 | |
25968 |
|
6 | 8 | ±0,10 | 19 | 30 | gelb | 5 | 35.00 | |
25972 |
|
6 | 9 | ±0,20 | 27 | 50 | natur | 5 | 40.00 | |
25973 |
|
6 | 9 | ±0,20 | 27 | 50 | natur | 15 | 86.00 | |
25974 |
|
6 | 9 | ±0,20 | 27 | 50 | schwarz | 5 | 40.00 | |
25975 |
|
6 | 9 | ±0,20 | 27 | 50 | schwarz | 15 | 86.00 | |
25984 |
|
6 | 10 | ±0,10 | 34 | 50 | natur | 5 | 61.00 | |
25985 |
|
6 | 10 | ±0,10 | 34 | 50 | natur | 15 | 110.00 | |
25986 |
|
6 | 10 | ±0,10 | 34 | 50 | schwarz | 5 | 61.00 | |
25987 |
|
6 | 10 | ±0,10 | 34 | 50 | schwarz | 15 | 110.00 | |
25996 |
|
7 | 10 | ±0,10 | 23 | 50 | natur | 5 | 49.00 | |
25997 |
|
7 | 10 | ±0,10 | 23 | 50 | natur | 15 | 103.00 | |
25998 |
|
7 | 10 | ±0,10 | 23 | 50 | schwarz | 5 | 49.00 | |
25999 |
|
7 | 10 | ±0,10 | 23 | 50 | schwarz | 15 | 103.00 | |
26008 |
|
8 | 10 | ±0,10 | 15 | 60 | natur | 5 | 50.00 | |
26009 |
|
8 | 10 | ±0,10 | 15 | 60 | natur | 15 | 106.00 | |
26010 |
|
8 | 10 | ±0,10 | 15 | 60 | schwarz | 5 | 50.00 | |
26011 |
|
8 | 10 | ±0,10 | 15 | 60 | schwarz | 15 | 106.00 | |
26012 |
|
8 | 10 | ±0,10 | 15 | 60 | rot | 5 | 50.00 | |
26013 |
|
8 | 10 | ±0,10 | 15 | 60 | rot | 15 | 106.00 | |
26016 |
|
8 | 10 | ±0,10 | 15 | 60 | gelb | 5 | 50.00 | |
26017 |
|
8 | 10 | ±0,10 | 15 | 60 | gelb | 15 | 106.00 | |
26020 |
|
8 | 11 | ±0,20 | 21 | 60 | natur | 5 | 55.00 | |
26021 |
|
8 | 11 | ±0,20 | 21 | 60 | natur | 15 | 118.00 | |
26022 |
|
8 | 11 | ±0,20 | 21 | 60 | schwarz | 5 | 55.00 | |
26023 |
|
8 | 11 | ±0,20 | 21 | 60 | schwarz | 15 | 118.00 | |
26044 |
|
8 | 12 | ±0,10 | 27 | 60 | natur | 5 | 76.00 | |
26045 |
|
8 | 12 | ±0,10 | 27 | 60 | natur | 15 | 175.00 | |
26046 |
|
8 | 12 | ±0,10 | 27 | 60 | schwarz | 5 | 76.00 | |
26047 |
|
8 | 12 | ±0,10 | 27 | 60 | schwarz | 15 | 175.00 | |
26056 |
|
9 | 12 | ±0,10 | 19 | 60 | natur | 5 | 86.00 | |
26057 |
|
9 | 12 | ±0,10 | 19 | 60 | natur | 15 | 193.00 | |
26058 |
|
9 | 12 | ±0,10 | 19 | 60 | schwarz | 5 | 86.00 | |
26059 |
|
9 | 12 | ±0,10 | 19 | 60 | schwarz | 15 | 193.00 | |
26068 |
|
10 | 12 | ±0,10 | 12 | 85 | natur | 5 | 79.00 | |
26069 |
|
10 | 12 | ±0,10 | 12 | 85 | natur | 15 | 141.00 | |
26070 |
|
10 | 12 | ±0,10 | 12 | 85 | schwarz | 5 | 79.00 | |
26071 |
|
10 | 12 | ±0,10 | 12 | 85 | schwarz | 15 | 141.00 | |
26074 |
|
10 | 12 | ±0,10 | 12 | 85 | blau | 5 | 79.00 | |
26075 |
|
10 | 12 | ±0,10 | 12 | 85 | blau | 15 | 141.00 | |
26104 |
|
10 | 14 | ±0,10 | 22 | 80 | natur | 5 | 79.00 | |
26105 |
|
10 | 14 | ±0,10 | 22 | 80 | natur | 15 | 141.00 | |
26116 |
|
11 | 14 | ±0,10 | 16 | 80 | natur | 5 | 93.00 | |
26117 |
|
11 | 14 | ±0,10 | 16 | 80 | natur | 15 | 150.00 | |
26118 |
|
11 | 14 | ±0,10 | 16 | 80 | schwarz | 5 | 93.00 | |
26119 |
|
11 | 14 | ±0,10 | 16 | 80 | schwarz | 15 | 150.00 | |
340317 |
|
12 | 14 | ±0,25 | 12 | 80 | natur | 5 | 97.00 | |
340318 |
|
12 | 14 | ±0,25 | 12 | 80 | natur | 15 | 159.00 | |
340319 |
|
12 | 15 | ±0,10 | 17 | 90 | natur | 5 | 122.00 | |
340320 |
|
12 | 15 | ±0,10 | 17 | 90 | natur | 15 | 200.00 | |
340321 |
|
14 | 16 | ±0,25 | 10 | 100 | natur | 5 | 99.00 | |
340322 |
|
14 | 16 | ±0,25 | 10 | 100 | natur | 15 | 163.00 | |
340323 |
|
15 | 18 | ±0,25 | 14 | 140 | natur | 5 | 155.00 | |
340324 |
|
15 | 18 | ±0,25 | 14 | 140 | natur | 15 | 253.00 |
