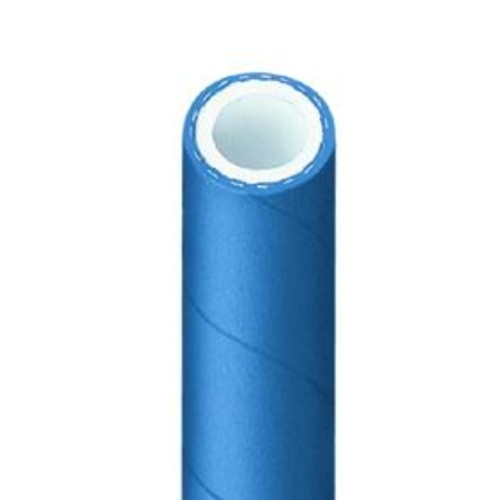

NBR Steam Tubing

Application area Food technology, soft drink industry, dairy industry, process engineering,... more

Application area

Food technology, soft drink industry, dairy industry, process engineering, operating technology

Product specification

For conveyance of hot fluids (hot water) or steam

Steam tubing for highest temperatures

Jacket non-marking, and resistant to lactic acid as well as animal and vegetable greases (exception poultry fat)

Good resistance to aging and weather

Excellent elastic behaviour

Let off steam or drain off water after each use

Technical specification

Material: NBR (butadiene-acrylonitrile rubber)

Colour:

Liner: white, smooth

Jacket: blue, perforated, textile imprint

Temperature range: -30 to +100 °C, saturated steam up to +164 °C

Max. operating pressure:

up to ID. 25 mm: 30 bar

from ID. 32 mm: 20 bar

at +164 °C saturated steam: 6 bar

Bursting pressure: 60 bar at +20 °C

Norm: EG 1935/2004, BfR XXI:2002 (Kat. 2), FDA (CFR 21 § 177.2600)

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	max. Betr.-Druck¹ bar	min. Biegeradius mm	Einheit m	Price Euro*
340272	13	23	30	65	3	129.00
340273	13	23	30	65	5	193.00
340274	19	31	30	100	3	163.00
340275	19	31	30	100	5	240.00
340276	25	37	30	125	3	208.00
340277	25	37	30	125	5	311.00
340278	32	46	20	195	1	86.00
340279	32	46	20	195	3	232.00
340280	38	54	20	250	1	110.00
340281	38	54	20	250	3	289.00
340282	50	66	20	350	1	135.00
340283	50	66	20	350	3	358.00
