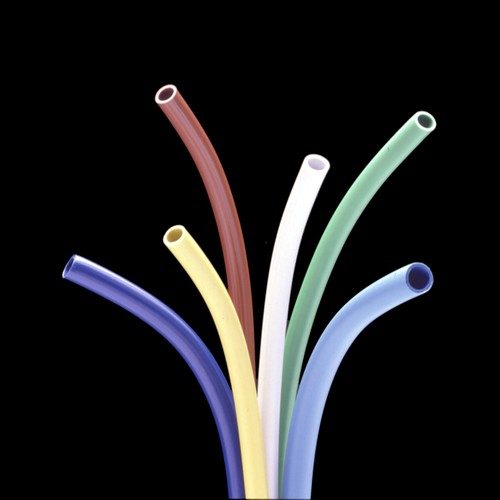

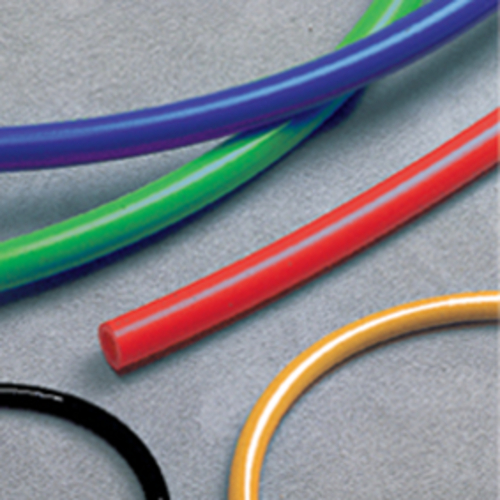

PVC Colour Chemical Tubing - imperial, shore 45
Product specification
Very high flexibility
Good mechanical stability
Non-toxic, pyrogen-free
Good resistance to aging and weather
Very good dielectric properties
Hardly inflammable
Antiadhesive surface
Resistant to most dilute and concentrated acids (e.g. hydrochloric acid, dilute nitric acid, dilute chromic acid) as well as aqueous salt solutions.
Resistant to mineral and vegetable oils, paraffin oil, alcohol, gasoline, aliphatic hydrocarbons (e.g. pentane, octane), and long-chain fatty acids.
Technical specification
Material: PVC-P (polyvinyl chloride, soft) - highly cross-linked
Colour: alternatively clear, self-coloured black, self-coloured white, red, green, blue, yellow
Shore hardness A: 45° ±3° (DIN 53505)
Temperature range: -20 to +65 °C, for a short time +80 °C
Tolerance: DIN ISO 3302-1 E2
Item | Image |
Inside Ø inch
|
Außen-Ø Zoll
|
Farbe |
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|
17543 |
|
1/16" | 1/4" | klar | 5 | 43.00 | |
17544 |
|
1/16" | 1/4" | klar | 15 | 106.00 | |
17545 |
|
1/16" | 1/4" | klar | 30 | 164.00 | |
17564 |
|
3/32" | 5/32" | klar | 5 | 24.00 | |
17565 |
|
3/32" | 5/32" | klar | 15 | 58.00 | |
17567 |
|
3/32" | 5/32" | schwarz | 5 | 24.00 | |
17568 |
|
3/32" | 5/32" | schwarz | 15 | 58.00 | |
17569 |
|
3/32" | 5/32" | schwarz | 30 | 93.00 | |
17570 |
|
3/32" | 5/32" | weiß | 5 | 24.00 | |
17571 |
|
3/32" | 5/32" | weiß | 15 | 58.00 | |
17572 |
|
3/32" | 5/32" | weiß | 30 | 93.00 | |
17579 |
|
3/32" | 5/32" | blau | 5 | 24.00 | |
17580 |
|
3/32" | 5/32" | blau | 15 | 58.00 | |
17581 |
|
3/32" | 5/32" | blau | 30 | 93.00 | |
17582 |
|
3/32" | 5/32" | gelb | 5 | 24.00 | |
17583 |
|
3/32" | 5/32" | gelb | 15 | 58.00 | |
17584 |
|
3/32" | 5/32" | gelb | 30 | 93.00 | |
17606 |
|
1/8" | 1/4" | klar | 5 | 37.00 | |
17609 |
|
1/8" | 1/4" | schwarz | 5 | 37.00 | |
17610 |
|
1/8" | 1/4" | schwarz | 15 | 89.00 | |
17611 |
|
1/8" | 1/4" | schwarz | 30 | 139.00 | |
17615 |
|
1/8" | 1/4" | rot | 5 | 37.00 | |
17616 |
|
1/8" | 1/4" | rot | 15 | 89.00 | |
17617 |
|
1/8" | 1/4" | rot | 30 | 139.00 | |
17618 |
|
1/8" | 1/4" | grün | 5 | 37.00 | |
17619 |
|
1/8" | 1/4" | grün | 15 | 89.00 | |
17620 |
|
1/8" | 1/4" | grün | 30 | 139.00 | |
17621 |
|
1/8" | 1/4" | blau | 5 | 37.00 | |
17622 |
|
1/8" | 1/4" | blau | 15 | 89.00 | |
17623 |
|
1/8" | 1/4" | blau | 30 | 139.00 | |
17624 |
|
1/8" | 1/4" | gelb | 5 | 37.00 | |
17625 |
|
1/8" | 1/4" | gelb | 15 | 89.00 | |
17626 |
|
1/8" | 1/4" | gelb | 30 | 139.00 | |
17627 |
|
5/32" | 9/32" | klar | 5 | 40.00 | |
17628 |
|
5/32" | 9/32" | klar | 15 | 97.00 | |
17629 |
|
5/32" | 9/32" | klar | 30 | 151.00 | |
17630 |
|
5/32" | 9/32" | schwarz | 5 | 40.00 | |
17631 |
|
5/32" | 9/32" | schwarz | 15 | 97.00 | |
17632 |
|
5/32" | 9/32" | schwarz | 30 | 151.00 | |
17633 |
|
5/32" | 9/32" | weiß | 5 | 40.00 | |
17634 |
|
5/32" | 9/32" | weiß | 15 | 97.00 | |
17636 |
|
5/32" | 9/32" | rot | 5 | 40.00 | |
17637 |
|
5/32" | 9/32" | rot | 15 | 97.00 | |
17639 |
|
5/32" | 9/32" | grün | 5 | 40.00 | |
17640 |
|
5/32" | 9/32" | grün | 15 | 97.00 | |
17642 |
|
5/32" | 9/32" | blau | 5 | 40.00 | |
17643 |
|
5/32" | 9/32" | blau | 15 | 97.00 | |
17644 |
|
5/32" | 9/32" | blau | 30 | 151.00 | |
17645 |
|
5/32" | 9/32" | gelb | 5 | 40.00 | |
17646 |
|
5/32" | 9/32" | gelb | 15 | 97.00 | |
17647 |
|
5/32" | 9/32" | gelb | 30 | 151.00 | |
17669 |
|
11/64" | 1/4" | klar | 5 | 38.00 | |
17670 |
|
11/64" | 1/4" | klar | 15 | 91.00 | |
17671 |
|
11/64" | 1/4" | klar | 30 | 145.00 | |
17675 |
|
11/64" | 1/4" | weiß | 5 | 38.00 | |
17676 |
|
11/64" | 1/4" | weiß | 15 | 91.00 | |
17677 |
|
11/64" | 1/4" | weiß | 30 | 145.00 | |
17684 |
|
11/64" | 1/4" | blau | 5 | 38.00 | |
17685 |
|
11/64" | 1/4" | blau | 15 | 91.00 | |
17686 |
|
11/64" | 1/4" | blau | 30 | 145.00 | |
17690 |
|
3/16" | 1/4" | klar | 5 | 39.00 | |
17691 |
|
3/16" | 1/4" | klar | 15 | 96.00 | |
17692 |
|
3/16" | 1/4" | klar | 30 | 154.00 | |
17711 |
|
3/16" | 5/16" | klar | 5 | 40.00 | |
17712 |
|
3/16" | 5/16" | klar | 15 | 101.00 | |
17713 |
|
3/16" | 5/16" | klar | 30 | 159.00 | |
17714 |
|
3/16" | 5/16" | schwarz | 5 | 40.00 | |
17715 |
|
3/16" | 5/16" | schwarz | 15 | 101.00 | |
17716 |
|
3/16" | 5/16" | schwarz | 30 | 159.00 | |
17774 |
|
1/4" | 3/8" | klar | 5 | 53.00 | |
17775 |
|
1/4" | 3/8" | klar | 15 | 124.00 | |
17776 |
|
1/4" | 3/8" | klar | 30 | 200.00 | |
17777 |
|
1/4" | 3/8" | schwarz | 5 | 53.00 | |
17778 |
|
1/4" | 3/8" | schwarz | 15 | 124.00 | |
17779 |
|
1/4" | 3/8" | schwarz | 30 | 200.00 | |
17788 |
|
1/4" | 3/8" | blau | 5 | 53.00 | |
17789 |
|
1/4" | 3/8" | blau | 15 | 124.00 | |
17790 |
|
1/4" | 3/8" | blau | 30 | 200.00 |
