TYGON®-Tubing for Fuel and Lubricant

Product specification A special tubing for fuels and lubricants, for lead-containing or... more

Product specification

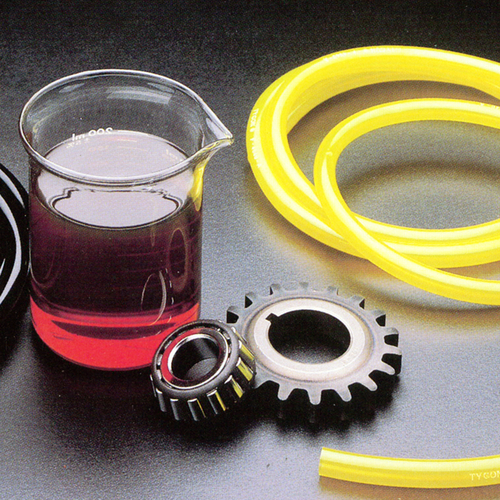

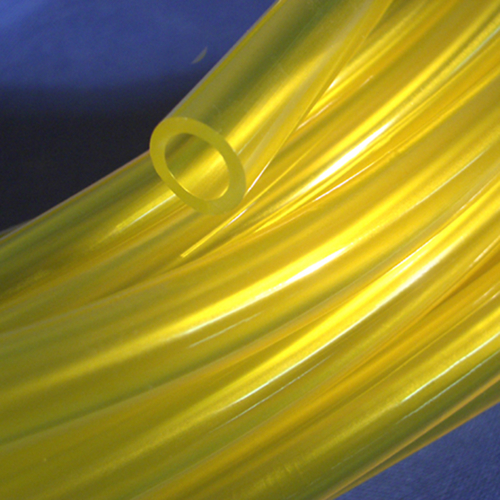

A special tubing for fuels and lubricants, for lead-containing or unleaded gasoline (with or without additives such as boron, tricresylphosphate or manganese). Also well usable for kerosine, heating oil, cutting fluids, and cooling agents on glycol base. Not usable for strong bases, strong acids, food, beverages, and pharmaceuticals. Long working life, because it does neither age nor oxidize. It is less permeable than rubber, the material being denser. Smooth, polished inner wall, therefore no formation of deposits and consequently no influence of process results. Translucent, soft, and flexible.

Ozone and UV-light resistant.

Technical specification

Material: TYGON^®-F-4040-A

Colour: yellow, translucent

Shore hardness A: 57° (ASTM D2240)

Temperature range: -10 to +74 °C

Density: 1.26 g/cm³

Embrittlement temperature: -37 °C

Tensile strength: 12.5 MPa (ASTM D412)

Tear Resistance: 29 kN/m (ASTM D1004)

Ultimate elongation: 310 % (ASTM D412)

Tensile modulus: 6.3 MPa at 100 % Elongation

Compression Set: 65 % at +70 °C / 22 h

Dielectric strength: 15.8 kV/mm (ASTM D149)

Water absorption: 0.49 % at +23 °C / 24 h

Resistance to media: good to weak acids; less good to strong acids; relatively good to weak alkalis; poor to strong alkalis; medium resistance to solvents

Close menu

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	max. Betr.-Druck¹ bar	Einheit m	Price Euro*
24682	3,2	6,4	3,4	3	40.00
24683	3,2	6,4	3,4	9	103.00
24684	3,2	6,4	3,4	15	140.00
24685	4,8	7,9	2,4	3	51.00
24686	4,8	7,9	2,4	9	133.00
24687	4,8	7,9	2,4	15	194.00
24688	6,4	9,5	2	3	61.00
24689	6,4	9,5	2	9	159.00
24690	6,4	9,5	2	15	237.00
24694	7,9	11,1	1,7	3	71.00
24695	7,9	11,1	1,7	9	185.00
24696	7,9	11,1	1,7	15	284.00
24697	9,5	12,7	1,3	3	86.00
24698	9,5	12,7	1,3	9	223.00
24701	12,7	19	2	3	167.00
24702	12,7	19	2	9	456.00
24703	15,9	22,2	1,7	3	191.00
24704	15,9	22,2	1,7	9	521.00
