PVC Colour Pressure Tubing

Preview: PVC Colour Pressure Tubing Preview: PVC Colour Pressure Tubing
PVC Colour Pressure Tubing
PVC Colour Pressure Tubing

Description General Information
Description
Product specification Light, coloured transparent universal tubing. Flexible and resistant... more
Close menu

Product specification

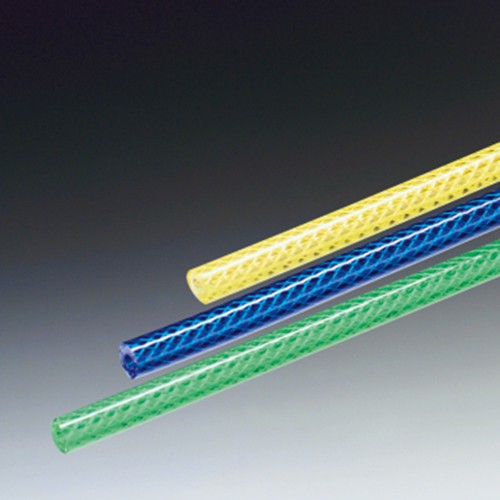

Light, coloured transparent universal tubing. Flexible and resistant material, resistant to aging and abrasion, rugged and pressure-proof, hardly inflammable, to a high degree resistant to hot water and oil (e.g. heating oil) at flow, sterilizable, no change of material by light or atmospheric oxygen.

Technical specification

Material: PVC-P (polyvinyl chloride, soft), inside and outside

Colour: transparent blue, green or yellow

Temperature range: -10 to +60 °C

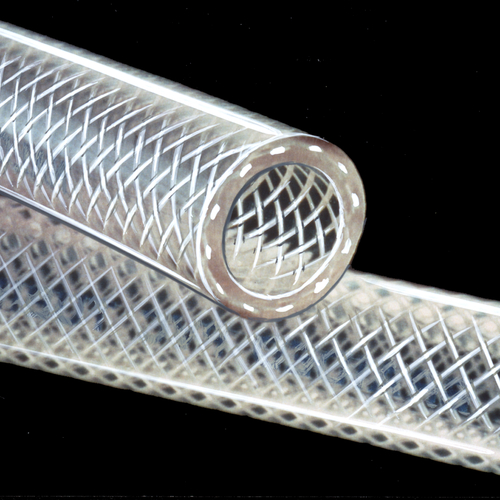

Insert: rayon braiding

Max. operating pressure: 20 bar at +20 °C

Bursting pressure: 80 bar at +20 °C

General Information
more
Close menu
No additional information available.
Item Image Inside Ø
mm
 Außen-Ø
mm
 Farbe Einheit
m
 Price
Euro* 		Buy
339638
4 10 blau 5 50.00
339639
4 10 blau 15 134.00
339640
4 10 grün 5 50.00
339641
4 10 grün 15 134.00
339642
4 10 gelb 5 50.00
339643
4 10 gelb 15 134.00
