Product specification

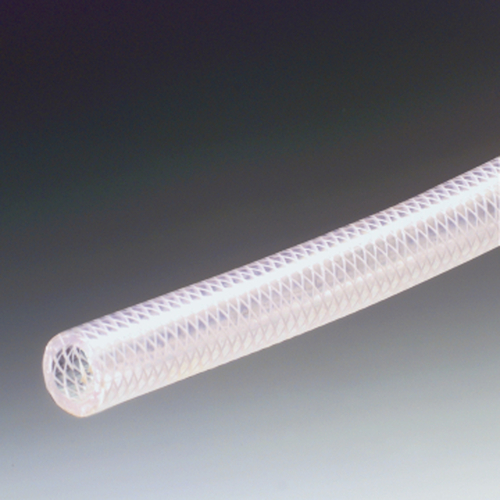

Light and crystal-clear universal tubing for the delivery of liquid food.

Technical specification

Material: PVC-P (polyvinyl chloride, soft), the material is free of silicone and toxic heavy metals

Colour: crystal-clear, transparent

Shore hardness A: 75° ±5° (DIN 53505)

Temperature range: -10 to +60 °C

Bursting pressure: approx. 3-fold dynamic operating pressure

Insert: braided fabric insert

Tensile strength: 190 kp/cm²

Elongation at break: 390 %

Density: 1.25 g/cm³

Design: tubing with increased resistance to pressure for technical use

Tolerances inside Ø: Inner-Ø and wall strength according to DIN 16940

Regulations: FDA 21 CFR 175.300, (EG) 1935/2004, (EU) 10/2011, Category A, B, C

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	max. Betr.-Druck¹ bar	min. Biegeradius mm	Einheit m	Price Euro*
27460	6	12	20	30	5	75.00
27461	6	12	20	30	15	176.00
27462	8	14	20	40	5	93.00
27463	8	14	20	40	15	219.00
27464	10	16	16	50	5	118.00
27465	10	16	16	50	15	281.00
27466	13,2	19,8	16	70	5	124.00
27467	13,2	19,8	16	70	15	292.00
27468	16	22	10	80	5	143.00
27469	16	22	10	80	15	331.00
27470	19	26	9	100	5	172.00
27471	19	26	9	100	15	385.00
27472	25	33	8	130	5	248.00
27473	25	33	8	130	15	559.00
27474	32	42	5	160	5	321.00
27475	32	42	5	160	10	551.00
27476	38	48	4	190	5	346.00
27477	38	48	4	190	10	462.00
27478	40	50	4	200	5	333.00
27479	40	50	4	200	10	499.00
27480	50	62	4	250	5	420.00
27481	50	62	4	250	10	673.00
