General Information FPM
For use in analytical technology, medical engineering, chemical industry, biotechnology, laboratory technology and process engineering.
Extraordinary chemical resistance to hydrocarbons, mineral, vegetable, and animal oils, aromatic and chlorine containing solvents, many acids, alkalis, and oxidizing agents. Unstable to polar solvents and certain lyes.

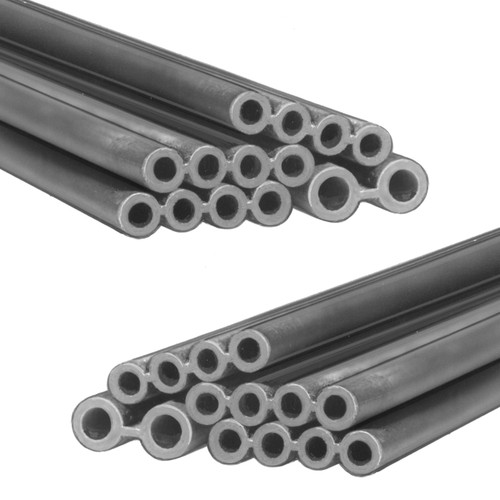

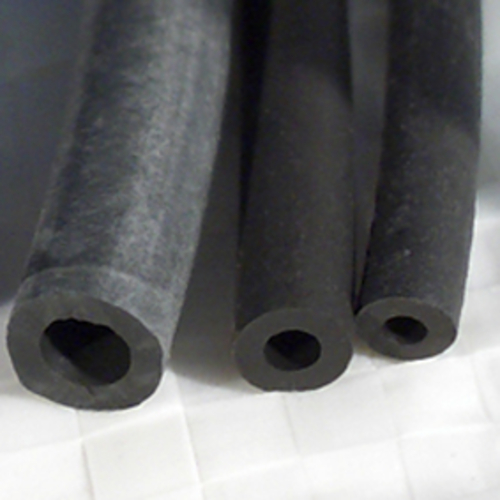

Conveying tubing made of high-quality mixed polymers of fluorinated hydrocarbons
Very good chemical resistance
Very good heat resistance
Very good resistance to effects of ozone, oxygen, aging, and weather
Flame-resistant
Smooth surface
Low abrasion
Highest mechanical strength
Maximum dimensional stability
Material: FPM (fluorinated rubber)
Colour: black
Temperature range: -20 to +200 °C, for a short period +250 °C
Permeability: extremely low, nearly gas-tight
Dielectric constant: 15 at 50 Hz
Volume Resistivity: 2 x 1013 Ohm x cm
Abrasion: 190 mm3
Tolerances: DIN ISO 3302-1 E2
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
Wandstärke mm
|
Lumen |
Einheit m
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|---|
| 28843 |
|
1,5 | 2,5 | 0,5 | 4 | 1 | 151.00 | |
| 28844 |
|
1,5 | 2,5 | 0,5 | 4 | 2 | 241.00 | |
| 28845 |
|
1,5 | 2,5 | 0,5 | 4 | 3 | 332.00 | |
| 28846 |
|
2,2 | 3,75 | 0,78 | 2 | 1 | 135.00 | |
| 28847 |
|
2,2 | 3,75 | 0,78 | 2 | 2 | 217.00 | |
| 28848 |
|
2,2 | 3,75 | 0,78 | 2 | 3 | 297.00 | |
