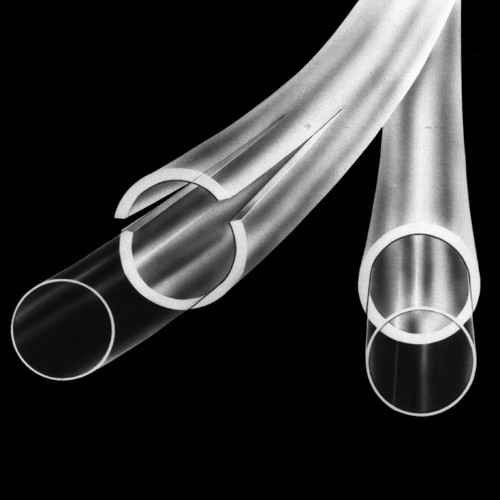

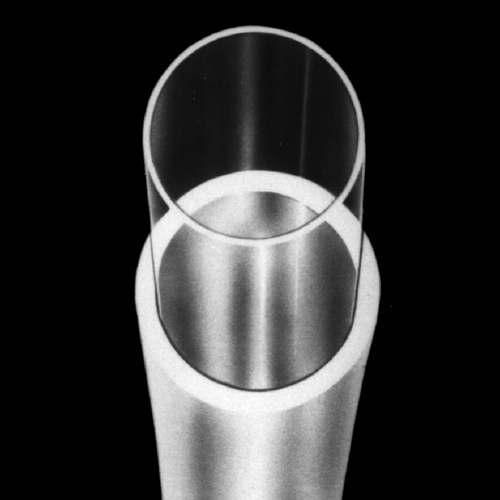

LDPE/EVA Pharmaceutical Composite Tubing

LDPE/EVA Pharmaceutical Composite Tubing

Application area Pharmaceutical industry, biotechnology, chemical industry, biochemical... more

Close menu

Application area

Pharmaceutical industry, biotechnology, chemical industry, biochemical process technology

Product specification

Pressure tubing.

Liner is inert and neutral, tasteless and odourless.

Liner does not absorb liquids.

Liner meets the requirements of FDA, USDA, National Formulary, and the USP-Standards for food, beverages, pharmaceutical products, laboratory and medical equipment.

Non-toxic.

Jacket is resistant to abrasion and aging.

Neither the jacket nor the liner contain plasticizers or vinyl chloride.

Technical specification

Material:

Liner: LDPE (low density polyethylene, highly cross-linked)

Jacket: EVA (ethylene vinyl acetate)

Colour: translucent

Temperature range: -35 to +70 °C

Embrittlement temperature: -51 °C

Sterilization: gas (ethylene oxide); gamma-rays

Close menu

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	max. Betr.-Druck¹ bar	Einheit m	Price Euro*
28000	3,2	4,8	3,3	5	44.00
28001	3,2	4,8	3,3	15	116.00
28002	3,2	6,4	5,5	5	64.00
28003	3,2	6,4	5,5	15	165.00
28006	6,4	9,5	4,5	5	102.00
28007	6,4	9,5	4,5	15	264.00
28008	9,5	12,7	4	5	107.00
28009	9,5	12,7	4	15	280.00
28010	9,5	15,9	5	5	162.00
28011	9,5	15,9	5	15	422.00
28012	12,7	15,9	2,5	5	162.00
28013	12,7	15,9	2,5	15	422.00
28014	12,7	19	4	5	204.00
28015	12,7	19	4	15	450.00
28016	19	25,4	3	15	580.00
28017	25,4	31,8	2	15	707.00
