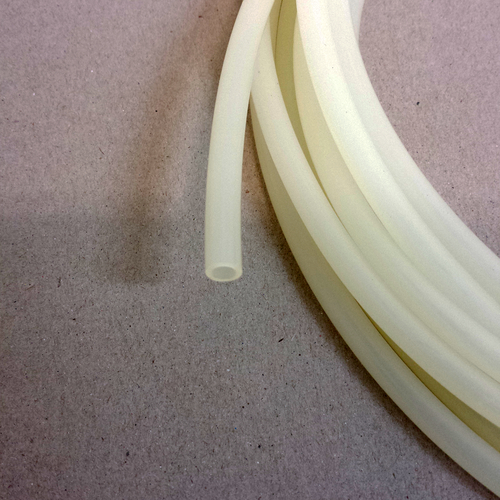

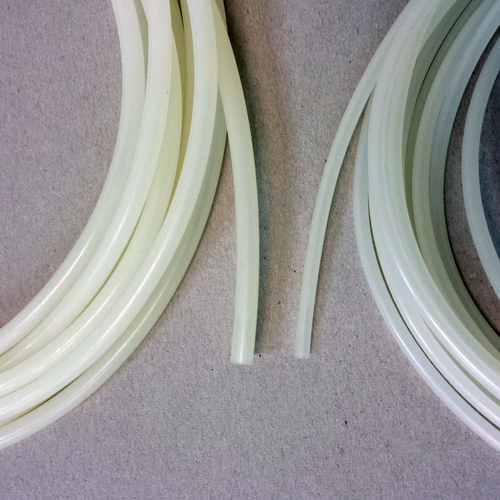

PUR Chemical Tubing - antistatic, calibrated

Application area Conveyance of solid matters which tend to adhere to the wall due to static... more

Application area

Conveyance of solid matters which tend to adhere to the wall due to static charge

Problem solution for powder coating plants

Process technology and chemical engineering

Mechanical engineering

Measurement and control technology

Low-pressure pneumatics, as well as vacuum applications

Product specification

Very high mechanical stability

Very high wear resistance

Highest abrasion resistance

Elastic behaviour comparable to soft rubber

Low temperature flexibility, even at -40 °C

Smallest bending radius, especially resistant to kinking and tearing

No embrittlement, as free of plasticizers

Good damping behaviour

Good chemical resistance to most oils, fats and petrols, as well as aliphatic hydrocarbons and ozone

UV-resistant

Technical specification

Material: PUR (polyurethane), polyester-based

Shore hardness A / D: 85° / 35° (DIN 53505)

Temperature range: -40 to +85 °C, for a short time +120 °C

Density: 1.20 g/cm³ (DIN 53497)

Tensile strength: 45 N/mm² (DIN 53504)

Elongation at break: 650 % (DIN 53504)

Abrasion: 35 mm³ (DIN 53516)

Tear propagation resistance: 60 N/mm (DIN 53515)

Compression set: at +23 °C / 70 h: 25 % (DIN 53517), at +70 °C / 24 h: 40 % (DIN 53517)

Surface resistance: 5 x 10⁹ Ohm x cm (IEC 93)

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	Toleranz mm	max. Betr.-Druck¹ bar	min. Biegeradius mm	Einheit m	Price Euro*
330057	2	4	±0,10	10	20	5	125.00
330058	2	4	±0,10	10	20	15	311.00
330059	4	6	±0,10	6	30	5	127.00
330060	4	6	±0,10	6	30	15	319.00
330061	6	8	±0,10	4	35	5	131.00
330062	6	8	±0,10	4	35	15	326.00
330063	8	10	±0,10	3	50	5	133.00
330064	8	10	±0,10	3	50	15	334.00
330065	8	12	±0,15	6	40	5	152.00
330066	8	12	±0,15	6	40	15	381.00
330067	10	14	±0,15	5	45	5	161.00
330068	10	14	±0,15	5	45	15	401.00
330069	10	16	±0,15	6,5	40	5	189.00
330070	10	16	±0,15	6,5	40	15	469.00
