Luer-Lock Coupling Piece (Female/Female)

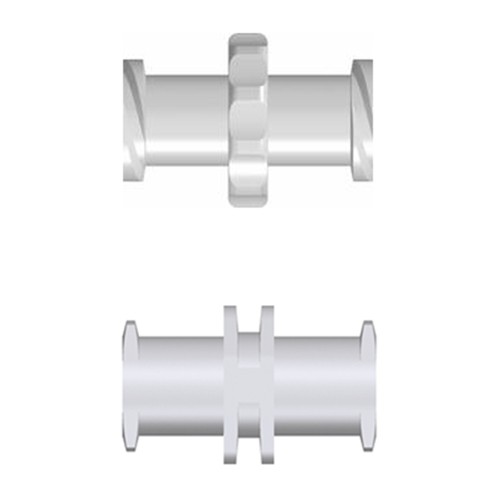

Product specification Coupling pieces with female Luer-lock on both sides, either with... more

Product specification

Coupling pieces with female Luer-lock on both sides, either with knurling or finger handle

General Information PA 6.6 (polyamide 6.6, nylon) Colour: white Temperature range:... more

General Information

PA 6.6 (polyamide 6.6, nylon)

Colour: white

Temperature range: -40 to +115 °C

Max. operating pressure: 3 bar at +20 °C

Yellowing and reduction of strength depending on temperature and interaction time

Regulatory compliance to RoHS, BPA-free, DEHP-free, BSE/ADI-free

Good sterilization with autoclave, ethylene oxide and gamma radiation (may discolour to brownish hue)

PP (polypropylene)

Colour: natural

Temperature range: -5 to +120 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, FDA 21 CFR 177.1520, RoHS, BPA, DEHP, ADI-free

Good sterilization with ethylene oxide and gamma radiation (bis 6 Mrads), autoclave limited to +121 °C for 20 min.

PC (polycarbonate)

Colour: transparent-clear

Temperature range: -30 to +110 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, ISO 10993, FDA 21 CFR 177.1580, RoHS, DEHP

Good sterilization with ethylene oxide and gamma radiation (excellent up to 10 Mrads with minor loss of physical properties), autoclave not recommended

RSPC (Radiation Stable Polycarbonate)

Colour: transparent-violet

Temperature range: -30 to +110 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to ISO 10993, RoHS, DEHP

Good sterilization with ethylene oxide and gamma radiation (excellent up to 10 Mrads with minor loss of physical properties; light violet hue turns clear upon sterilization), autoclave not recommended

No FDA or USP clearance, not BSE / ADI-free!

Item Image Material Ausführung Einheit
Stück
Price
Euro*
Buy
158261
Luer-Lock Coupling Piece (Female/Female) Luer-Lock Coupling Piece (Female/Female)

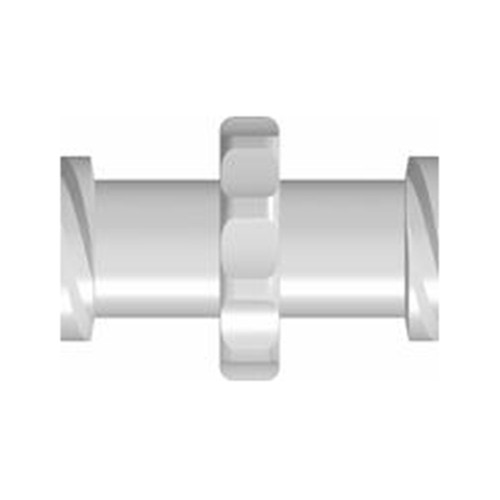

PA 6.6 mit Rändel 10 34.00
15827
Luer-Lock Coupling Piece (Female/Female) Luer-Lock Coupling Piece (Female/Female)
Luer-Lock Coupling Piece (Female/Female) Luer-Lock Coupling Piece (Female/Female)

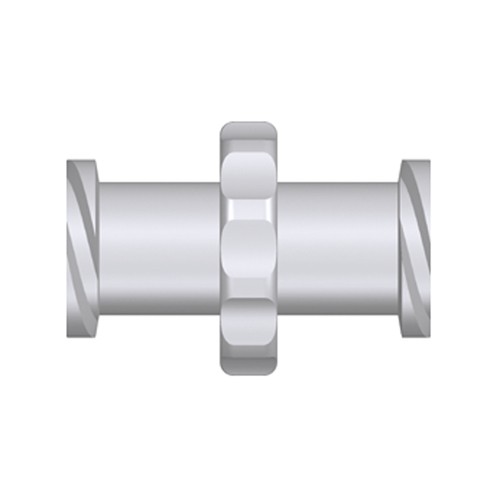

PP mit Rändel 10 39.00
15828
Luer-Lock Coupling Piece (Female/Female) Luer-Lock Coupling Piece (Female/Female)
Luer-Lock Coupling Piece (Female/Female) Luer-Lock Coupling Piece (Female/Female)
PC mit Rändel 10 44.00
15829
Luer-Lock Coupling Piece (Female/Female) Luer-Lock Coupling Piece (Female/Female)
Luer-Lock Coupling Piece (Female/Female) Luer-Lock Coupling Piece (Female/Female)

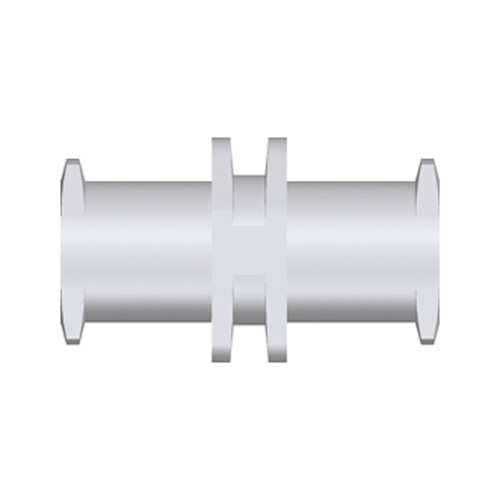

PA 6.6 mit Fingergriff 10 34.00
15830
Luer-Lock Coupling Piece (Female/Female) Luer-Lock Coupling Piece (Female/Female)
Luer-Lock Coupling Piece (Female/Female) Luer-Lock Coupling Piece (Female/Female)
PP mit Fingergriff 10 39.00
15831
Luer-Lock Coupling Piece (Female/Female) Luer-Lock Coupling Piece (Female/Female)
Luer-Lock Coupling Piece (Female/Female) Luer-Lock Coupling Piece (Female/Female)
RSPC mit Fingergriff 10 44.00
