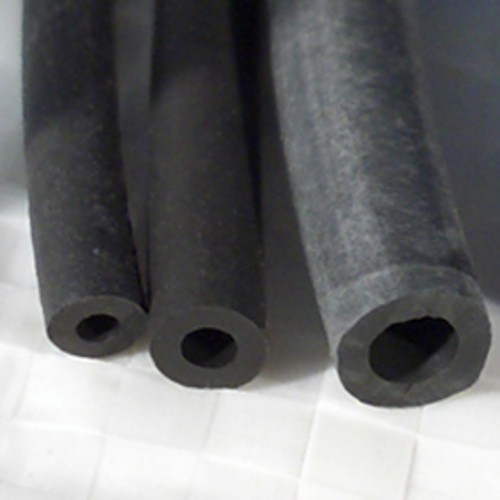

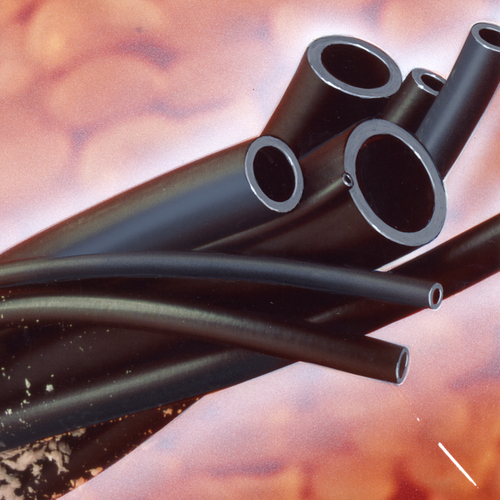

FPM Micro-Spaghetti Tubing for Analytic Technology

FPM Micro-Spaghetti Tubing for Analytic Technology

Technical specification Material: FPM (fluorinated rubber TYGON ® -F-5500-A)... more

Close menu

Technical specification

Material: FPM (fluorinated rubber TYGON^®-F-5500-A)

Shore hardness A: 64° ±3°

Tolerance: DIN ISO 3302-1 E2

General Information FPM For use in analytical technology, medical engineering, chemical... more

Close menu

General Information FPM

For use in analytical technology, medical engineering, chemical industry, biotechnology, laboratory technology and process engineering.

Extraordinary chemical resistance to hydrocarbons, mineral, vegetable, and animal oils, aromatic and chlorine containing solvents, many acids, alkalis, and oxidizing agents. Unstable to polar solvents and certain lyes.

Conveying tubing made of high-quality mixed polymers of fluorinated hydrocarbons

Very good chemical resistance

Very good heat resistance

Very good resistance to effects of ozone, oxygen, aging, and weather

Flame-resistant

Smooth surface

Low abrasion

Highest mechanical strength

Maximum dimensional stability

Material: FPM (fluorinated rubber)

Colour: black

Temperature range: -20 to +200 °C, for a short period +250 °C

Permeability: extremely low, nearly gas-tight

Dielectric constant: 15 at 50 Hz

Volume Resistivity: 2 x 10¹³ Ohm x cm

Abrasion: 190 mm³

Tolerances: DIN ISO 3302-1 E2

Item	Inside Ø mm	Außen-Ø mm	Wandstärke mm	Einheit m	Price Euro*
302630	0,51	2,33	0,91	1	71.00
302631	0,51	2,33	0,91	5	300.00
302632	0,51	2,33	0,91	10	493.00
302633	0,64	2,46	0,91	1	73.00
302634	0,64	2,46	0,91	5	313.00
302635	0,64	2,46	0,91	10	512.00
302636	0,76	2,44	0,84	1	80.00
302637	0,76	2,44	0,84	5	332.00
302638	0,76	2,44	0,84	10	544.00
302639	0,89	2,57	0,84	1	86.00
302640	0,89	2,57	0,84	5	358.00
302641	0,89	2,57	0,84	10	587.00
302642	1,02	2,7	0,84	1	90.00
302643	1,02	2,7	0,84	5	377.00
302644	1,02	2,7	0,84	10	617.00
302645	1,14	2,82	0,84	1	90.00
302646	1,14	2,82	0,84	5	377.00
302647	1,14	2,82	0,84	10	617.00
302648	1,3	2,98	0,84	1	90.00
302649	1,3	2,98	0,84	5	377.00
302650	1,3	2,98	0,84	10	617.00
302651	1,42	3,1	0,84	1	95.00
302652	1,42	3,1	0,84	5	399.00
302653	1,42	3,1	0,84	10	649.00
302654	1,52	3,2	0,84	1	95.00
302655	1,52	3,2	0,84	5	399.00
302656	1,52	3,2	0,84	10	649.00
302657	1,65	3,33	0,84	1	95.00
302658	1,65	3,33	0,84	5	399.00
302659	1,65	3,33	0,84	10	649.00
302660	1,85	3,53	0,84	1	103.00
302661	1,85	3,53	0,84	5	424.00
302662	1,85	3,53	0,84	10	660.00
302663	2,06	3,74	0,84	1	110.00
302664	2,06	3,74	0,84	5	443.00
302665	2,06	3,74	0,84	10	690.00
302666	2,29	3,97	0,84	1	118.00
302667	2,29	3,97	0,84	5	480.00
302668	2,29	3,97	0,84	10	745.00
302669	2,54	4,22	0,84	1	125.00
302670	2,54	4,22	0,84	5	508.00
302671	2,54	4,22	0,84	10	790.00
302672	2,79	4,47	0,84	1	135.00
302673	2,79	4,47	0,84	5	555.00
302674	2,79	4,47	0,84	10	863.00
