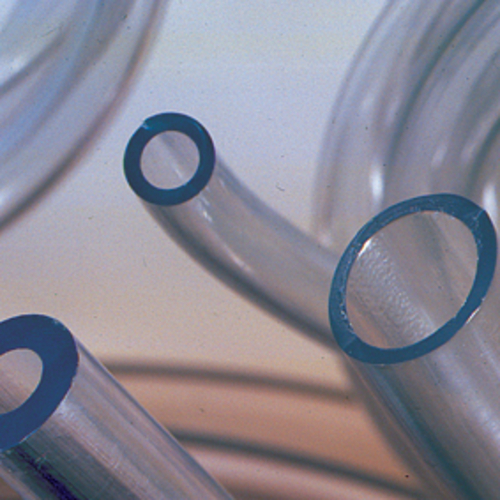

TYGON®-Micro-Bore Tubing

Product specification A special tubing for applications in surgery and medical engineering.... more

Product specification

A special tubing for applications in surgery and medical engineering. Particularly suitable in clinical and biological laboratories. The tubing has a long working life, because it does neither age nor oxidize; less permeable than rubber, the material being denser. The tube is non-toxic, free from pyrogenes, and compatible with blood; smooth inner wall, therefore no formation of deposits and consequently no influence of process results. Crystal-clear, soft and flexible.

Technical specification

Material: TYGON®-ND 100-80 (formerly S-54-HL)

Colour: crystal-clear

Shore hardness A: 80° ±3° (ASTM D2240)

Temperature range: -10 to +74 °C

Density: 1.21 g/cm3

Embrittlement temperature: -31 °C

Water Absorption: 0,12 % (at +23 °C / 24 h)

Tensile strength: 18.1 MPa (ASTM D412)

Ultimate elongation: 350 %

Tensile modulus: 10 MPa at 100 % Elongation

Compression Set: 59 % at +70 °C / 22 h

Tolerance: DIN ISO 3302-1 E2

Sterilization: steam (1 bar/30 min.); hot air (+93 °C); gas (ethylene oxide); gamma-rays (2.5 MRad)

Regulations: USP Class VI

No additional information available.
Item Image Inside Ø
mm
Außen-Ø
mm
Wandstärke
mm
für Nadel-Größe Einheit
m
Price
Euro*
Buy
94066
0,25 0,76 0,25 30 30 264.00
94067
0,51 1,52 0,51 23 30 285.00
94068
0,76 2,29 0,76 20 - 21 30 351.00
94069
1,02 1,78 0,38 18 - 20 30 362.00
94070
1,27 2,29 0,51 17 - 18 30 373.00
