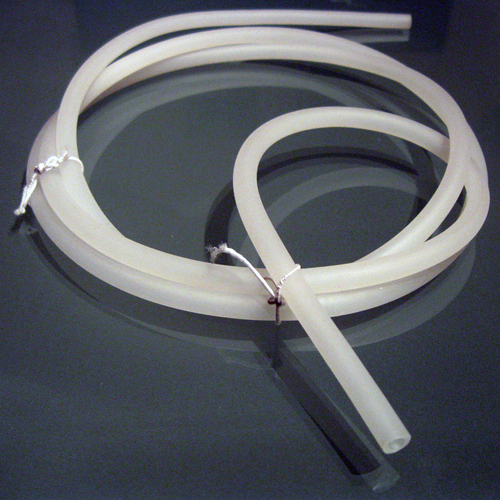

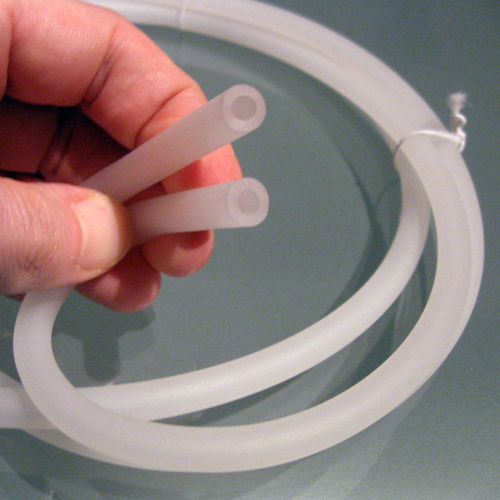

TPE-S Tubing for Medical Engineering and Pharmaceutical Technology
Application area
Communication technology, medical devices, clinical chemistry, laboratory technology, pharmaceutical technology, pharmaceutical production
Product specification
Very good compression set.
Sterilizable.
Autoclavable.
Heat-sealable.
Good resistance to acids and alkalis, but not resistant to fats, oils and highly concentrated alcohols.
The medical compound is tested according to the named medical base certifications and the Drug Master File (DMF).
Free of plasticizers.
Absolutely free of latex and phthalates.
Absolutely resistant to weather and aging.
Outstanding elastic properties.
Pleasant feel and anti-slip properties.
UV-resistant.
Technical specification
Material: TPE-S (thermoplastic elastomer)
Compound: SEBS (styrene block copolymer)
Colour: translucent
Shore hardness A: 60° (DIN 53505, ISO 868)
Temperature range: -40 to +120 °C
Sterilization: autoclavable; hot air (+134 °C); gas (ethylene oxide); gamma-rays (2 x kGy)
Density: 0.89 g/cm³ (DIN ISO 1183-1:2004)
Tearing strength: 11.2 N/mm2 (DIN 53504, ISO 37)
Tear propagation resistance: 18.1 N/mm2 (DIN ISO 34-1 method B)
Elongation at break: 759.0 % (DIN 53504, ISO 37)
Compression set:
at +70 °C / 22h: 32.8 % (ISO 815)
at +100 °C / 22h: 49.4 % (ISO 815)
Regulations: USP Class VI, USP 6.6.1, ISO 10993-5, ISO 10993-10, ISO 10993-11
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|
351064 |
|
0,5 | 1,5 | 5 | 120.00 | |
351065 |
|
0,5 | 1,5 | 15 | 271.00 | |
351066 |
|
0,5 | 2 | 5 | 123.00 | |
351067 |
|
0,5 | 2 | 15 | 274.00 | |
351068 |
|
0,8 | 4 | 5 | 158.00 | |
351069 |
|
0,8 | 4 | 15 | 374.00 | |
351070 |
|
1 | 3 | 5 | 126.00 | |
351071 |
|
1 | 3 | 15 | 281.00 | |
351072 |
|
1 | 4 | 5 | 152.00 | |
351073 |
|
1 | 4 | 15 | 355.00 | |
351074 |
|
1,6 | 3,2 | 5 | 129.00 | |
351075 |
|
1,6 | 3,2 | 15 | 287.00 | |
351076 |
|
1,6 | 4,8 | 5 | 210.00 | |
351077 |
|
1,6 | 4,8 | 15 | 490.00 | |
351078 |
|
2 | 4 | 5 | 120.00 | |
351079 |
|
2 | 4 | 15 | 284.00 | |
351080 |
|
2 | 6 | 5 | 219.00 | |
351081 |
|
2 | 6 | 15 | 547.00 | |
351082 |
|
2,4 | 5,6 | 5 | 203.00 | |
351083 |
|
2,4 | 5,6 | 15 | 519.00 | |
351084 |
|
3 | 5 | 5 | 143.00 | |
351085 |
|
3 | 5 | 15 | 335.00 | |
351086 |
|
3 | 6 | 5 | 200.00 | |
351087 |
|
3 | 6 | 15 | 467.00 | |
351088 |
|
3 | 7 | 5 | 219.00 | |
351089 |
|
3 | 7 | 15 | 532.00 | |
351090 |
|
3,2 | 6,4 | 5 | 177.00 | |
351091 |
|
3,2 | 6,4 | 15 | 425.00 | |
351092 |
|
4 | 6 | 5 | 155.00 | |
351093 |
|
4 | 6 | 15 | 400.00 | |
351094 |
|
4 | 8 | 5 | 219.00 | |
351095 |
|
4 | 8 | 15 | 490.00 | |
351096 |
|
4,8 | 7,9 | 5 | 210.00 | |
351097 |
|
4,8 | 7,9 | 15 | 482.00 | |
351098 |
|
5 | 8 | 5 | 200.00 | |
351099 |
|
5 | 8 | 15 | 470.00 | |
351100 |
|
5 | 9 | 5 | 256.00 | |
351101 |
|
5 | 9 | 15 | 570.00 | |
351102 |
|
6 | 8 | 5 | 171.00 | |
351103 |
|
6 | 8 | 15 | 397.00 | |
351104 |
|
6 | 9 | 5 | 236.00 | |
351105 |
|
6 | 9 | 15 | 535.00 | |
351106 |
|
6 | 10 | 5 | 284.00 | |
351107 |
|
6 | 10 | 15 | 640.00 | |
351108 |
|
6,4 | 9,5 | 5 | 233.00 | |
351109 |
|
6,4 | 9,5 | 15 | 519.00 | |
351110 |
|
7 | 9 | 5 | 203.00 | |
351111 |
|
7 | 9 | 15 | 496.00 | |
351112 |
|
7 | 10 | 5 | 233.00 | |
351113 |
|
7 | 10 | 15 | 525.00 | |
351114 |
|
7 | 11 | 5 | 371.00 | |
351115 |
|
7 | 11 | 15 | 876.00 | |
351118 |
|
7,9 | 11,1 | 5 | 284.00 | |
351119 |
|
7,9 | 11,1 | 15 | 634.00 | |
351116 |
|
8 | 10 | 5 | 222.00 | |
351117 |
|
8 | 10 | 15 | 502.00 | |
351120 |
|
8 | 12 | 5 | 319.00 | |
351121 |
|
8 | 12 | 15 | 747.00 | |
351122 |
|
9 | 12 | 5 | 322.00 | |
351123 |
|
9 | 12 | 15 | 753.00 | |
351124 |
|
9 | 13 | 5 | 416.00 | |
351125 |
|
9 | 13 | 15 | 911.00 | |
351126 |
|
9,5 | 12,7 | 5 | 361.00 | |
351127 |
|
9,5 | 12,7 | 15 | 846.00 | |
351128 |
|
9,5 | 14,3 | 5 | 519.00 | |
351129 |
|
9,5 | 14,3 | 15 | 1,165.00 | |
351130 |
|
10 | 12 | 5 | 439.00 | |
351131 |
|
10 | 12 | 15 | 995.00 | |
351152 |
|
10 | 14 | 5 | 474.00 | |
351153 |
|
10 | 14 | 15 | 1,213.00 |
