Multi-Lumen Quick-Disconnect Coupling made of POM for Six Flexible Conduits
Product specification

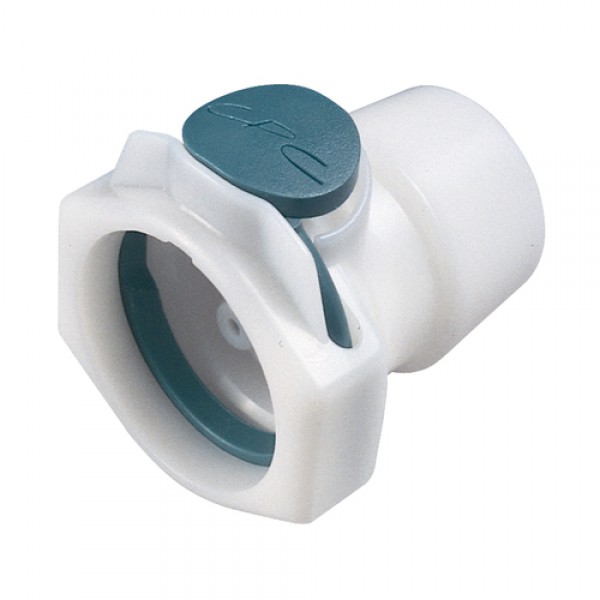

Female coupling part. With port and hose nozzle for piping connection. Can be combined with all male coupling parts.
General Information Quick-Disconnect Coupling
THOMAFLUID®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.
A complete operable THOMAFLUID®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.
General Information 6-Tube

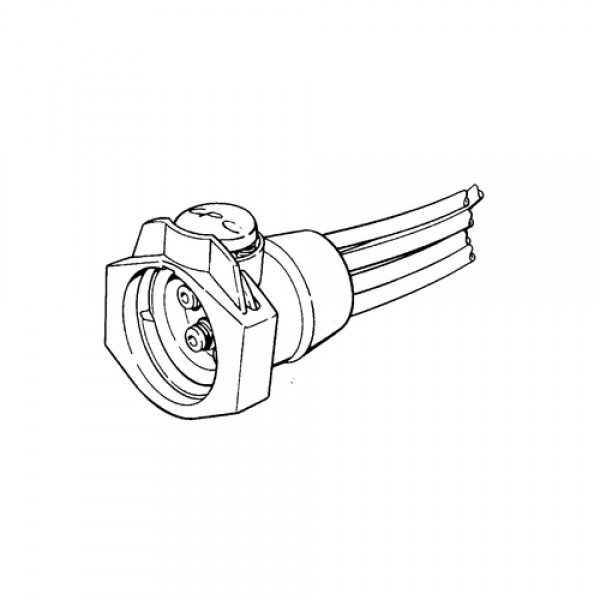

Simultaneous quick-release coupling system for six separate gas or liquid flexible conduits with parallel ports, consisting of a coupling casing with six nipple inserts (male type "V") and a coupling casing with six coupling inserts (female type "M") for front panel mounting (bulkhead screwed fitting). Female ("M") and male ("V") parts are optionally interchangeable, independently of the respective connection sizes.
Material:
Valve body: POM (polyacetal, polyoxymethylene)
Springs: stainless steel 316
Temperature range:
POM inserts: -40 to +80 °C
PP inserts: 0 to +80 °C
Max. operating pressure: 6.9 bar per line at +20 °C
Mounting type: coupling casing loose; coupling nipples optionally fixed front panel mounting with bulkhead screwed fitting
Item | Image | Connection | Ventil | Werkstoff Dichtung | Werkstoff Einsätze |
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|
16217 |
|
Tülle 1,6 mm | ohne | NBR | POM | 1 | 37.00 | |
16218 |
|
Tülle 3 mm | ohne | NBR | POM | 1 | 37.00 | |
16219 |
|
Tülle 3,2 mm | ohne | NBR | POM | 1 | 37.00 | |
16220 |
|
Tülle 1,6 mm | ohne | EPDM | PP | 1 | 45.00 | |
16221 |
|
Tülle 3,2 mm | ohne | EPDM | PP | 1 | 45.00 |
