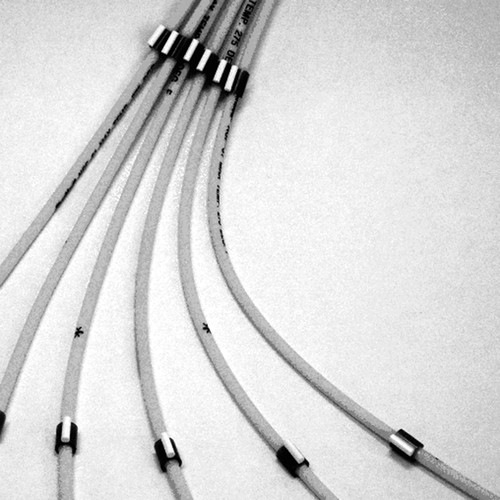

EPDM/PP Pump Tubing with 3 Stoppers

Preview: EPDM/PP Pump Tubing with 3 Stoppers Preview: EPDM/PP Pump Tubing with 3 Stoppers Preview: EPDM/PP Pump Tubing with 3 Stoppers Preview: EPDM/PP Pump Tubing with 3 Stoppers
EPDM/PP Pump Tubing with 3 Stoppers
EPDM/PP Pump Tubing with 3 Stoppers
EPDM/PP Pump Tubing with 3 Stoppers
EPDM/PP Pump Tubing with 3 Stoppers

Description General Information
Description
Application area The ideal tubing for pharmaceutical and medical applications as well as the... more
Close menu

Application area

The ideal tubing for pharmaceutical and medical applications as well as the food application areas.

Recommendable for cell cultures and tissues.

Ideal for the production filtration, fermentation and bioreactor process lines.

Product specification

Conveying and pump tubing for continuous operation

Highest abrasion resistance

Very long working life

Non-toxic, non-hemolytic

Free of extractable constituents

Plasticizer-free

Chemically resistant

Not permeable to light and UV-radiation

Extremely low permeability to gas

Can be autoclaved several times, but the stoppers can loose with time!

Heat-sealing and bonding properties

Repeatedly usable for CIP- and SIP-processes

Service life: 30 times longer than comparable silicone tubes

Technical specification

Material: EPDM/PP (ethylene-propylene-diene/polypropylene, thermoplastic elastomer);

compound of EPDM and PP, as well as stabilizing additives

Colour: yellowish

Shore hardness A: 64°

Temperature range: -60 to +135 °C

Density: 0.97 g/cm3

Taste: low

Toxicity: non-toxic

Embrittlement temperature: -75 °C

Sterilization: autoclavable (+121 °C); steam (121 °C, 30 minutes, 1 bar); gas (ethylene oxide); gamma-rays (up to 2.5 mrad)

Regulations: FDA 21 CFR §177.2600; USP Class VI; NSF 51

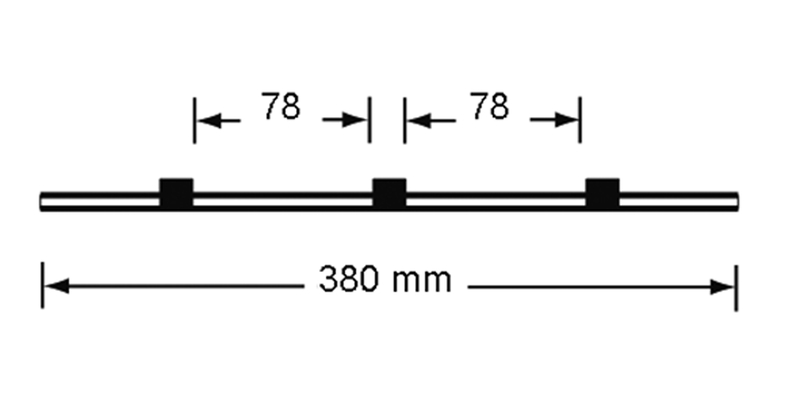

Fixed length: 380 mm, 3 coloured stopper, stopper distance 78 mm

General Information
more
Close menu
No additional information available.
Item Image Inside Ø
mm
 Außen-Ø
mm
 Wandstärke
mm
 Farbcode Einheit
Stück
 Price
Euro* 		Buy
339262
0,25 2,07 0,91 orange/blau 3 135.00
339263
0,38 2,18 0,9 orange/grün 3 135.00
339264
0,51 2,21 0,85 orange/gelb 3 135.00
339265
0,64 2,44 0,9 orange/weiß 3 135.00
339266
0,76 2,36 0,8 schwarz 3 135.00
339267
0,89 2,49 0,8 orange 3 135.00
339268
1,02 2,72 0,85 weiß 3 135.00
339269
1,14 2,84 0,85 rot 3 135.00
339270
1,3 2,8 0,75 grau 3 135.00
339271
1,42 3,1 0,84 gelb 3 135.00
339272
1,52 3,02 0,75 gelb/blau 3 135.00
339273
1,65 3,25 0,8 blau 3 135.00
339274
1,85 3,55 0,85 grün 3 135.00
339275
2,06 3,66 0,8 violett 3 135.00
339276
2,29 3,89 0,8 violett/schwarz 3 135.00
339277
2,54 4,24 0,85 violett/orange 3 135.00
339278
2,79 4,59 0,9 violett/weiß 3 135.00
