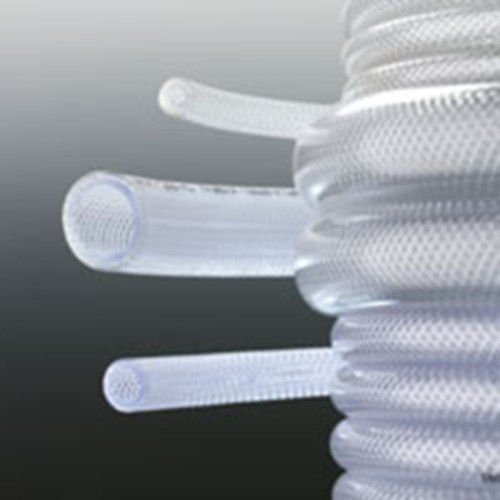

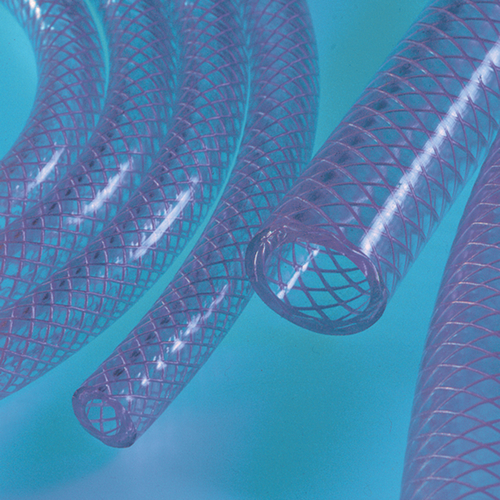

PVC Chemical Pressure Tubing
Product specification Flexible and resistant material, resistant to aging and abrasion,... more
Product specification
Flexible and resistant material, resistant to aging and abrasion, rugged and pressure-proof, inside and outside smooth, hardly inflammable, to a high degree resistant to hot water and oil (e.g. heating oil) at flow, sterilizable, no change of material by light or atmospheric oxygen.
Technical specification
Material: PVC-P (polyvinyl chloride, soft)
Colour: transparent
Shore hardness A: 75° ±3° (DIN 53505)
Insert: braided fabric insert
Tensile strength: 190 kp/cm2
Elongation at break: 390 %
Density: 1.25 g/cm3
Tolerances inside Ø: 3-6 mm ±0.4 mm; 6-10 mm ±0.5 mm; 10-19 mm ±0.8 mm
Reduction factor: at +60 °C approx. 46 %
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|
26965 |
|
4 | 10 | 24 | 5 | 37.00 | |
26966 |
|
4 | 10 | 24 | 15 | 86.00 | |
26967 |
|
5 | 11 | 23 | 5 | 40.00 | |
26968 |
|
5 | 11 | 23 | 15 | 94.00 | |
26969 |
|
6 | 12 | 23 | 5 | 40.00 | |
26970 |
|
6 | 12 | 23 | 15 | 95.00 | |
26971 |
|
8 | 14 | 22 | 5 | 48.00 | |
26972 |
|
8 | 14 | 22 | 15 | 114.00 | |
26973 |
|
9 | 15 | 19 | 5 | 50.00 | |
26974 |
|
9 | 15 | 19 | 15 | 119.00 | |
26975 |
|
10 | 16 | 17 | 5 | 52.00 | |
26976 |
|
10 | 16 | 17 | 15 | 125.00 | |
26977 |
|
12 | 21 | 15 | 5 | 86.00 | |
26978 |
|
12 | 21 | 15 | 15 | 205.00 | |
26979 |
|
12,5 | 18,5 | 14 | 5 | 55.00 | |
26980 |
|
12,5 | 18,5 | 14 | 15 | 129.00 | |
26981 |
|
13,2 | 19,8 | 16 | 5 | 68.00 | |
26982 |
|
13,2 | 19,8 | 16 | 15 | 161.00 | |
26983 |
|
13 | 22 | 13 | 5 | 89.00 | |
26984 |
|
13 | 22 | 13 | 15 | 213.00 | |
26985 |
|
16,2 | 23,6 | 16 | 5 | 97.00 | |
26986 |
|
16,2 | 23,6 | 16 | 15 | 219.00 | |
26987 |
|
16 | 24 | 14 | 5 | 105.00 | |
26988 |
|
16 | 24 | 14 | 15 | 223.00 | |
26989 |
|
16 | 26 | 14 | 5 | 145.00 | |
26990 |
|
16 | 26 | 14 | 15 | 302.00 | |
26991 |
|
19 | 26 | 13 | 5 | 116.00 | |
26992 |
|
19 | 26 | 13 | 15 | 247.00 | |
26993 |
|
19 | 29 | 12 | 5 | 155.00 | |
26994 |
|
19 | 29 | 12 | 15 | 330.00 | |
26995 |
|
25 | 34 | 11 | 5 | 158.00 | |
26996 |
|
25 | 34 | 11 | 15 | 336.00 | |
26999 |
|
25 | 37 | 10 | 5 | 243.00 | |
27000 |
|
25 | 37 | 10 | 15 | 517.00 | |
27001 |
|
30 | 38 | 5 | 5 | 183.00 | |
27002 |
|
30 | 38 | 5 | 15 | 388.00 | |
27005 |
|
38 | 48 | 8 | 5 | 278.00 | |
27006 |
|
38 | 48 | 8 | 15 | 592.00 |
