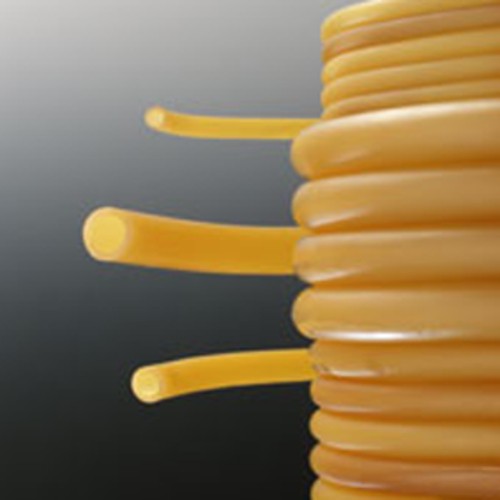

Latex Tubing
Application area Chemical engineering, operating technology, plant construction Product... more
Application area
Chemical engineering, operating technology, plant construction
Product specification
Rubber-elastic material made of natural rubber
Very high elasticity
Very high abrasion resistance
High tensile strength
Good resistance to aging
Technical specification
Material: NR (natural rubber)
Colour: amber-coloured
Shore hardness A: 40° ±5°
Density: 0.97 g/cm3
Stretching: approx. 800 %
Temperature range: -30 to +70 °C
Sterilization: steam (+136 °C)
Tolerance: ISO DIN 3302-1E2
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|
28177 |
|
2 | 4 | 5 | 50.00 | |
28178 |
|
2 | 4 | 10 | 79.00 | |
28179 |
|
2 | 6 | 5 | 87.00 | |
28180 |
|
2 | 6 | 10 | 139.00 | |
28181 |
|
3 | 5 | 5 | 71.00 | |
28182 |
|
3 | 5 | 10 | 114.00 | |
28183 |
|
3 | 6 | 5 | 58.00 | |
28184 |
|
3 | 6 | 10 | 93.00 | |
28185 |
|
3 | 7 | 5 | 69.00 | |
28186 |
|
3 | 7 | 10 | 110.00 | |
28187 |
|
4 | 6 | 5 | 67.00 | |
28188 |
|
4 | 6 | 10 | 106.00 | |
28189 |
|
4 | 7 | 5 | 67.00 | |
28190 |
|
4 | 7 | 10 | 110.00 | |
28191 |
|
4 | 8 | 5 | 81.00 | |
28192 |
|
4 | 8 | 10 | 128.00 | |
28193 |
|
5 | 7 | 5 | 67.00 | |
28194 |
|
5 | 7 | 10 | 110.00 | |
28195 |
|
5 | 8 | 5 | 70.00 | |
28196 |
|
5 | 8 | 10 | 112.00 | |
28197 |
|
5 | 9 | 5 | 93.00 | |
28198 |
|
5 | 9 | 10 | 148.00 | |
28199 |
|
6 | 8 | 5 | 80.00 | |
28200 |
|
6 | 8 | 10 | 128.00 | |
28201 |
|
6 | 9 | 5 | 81.00 | |
28202 |
|
6 | 9 | 10 | 129.00 | |
28203 |
|
6 | 10 | 5 | 102.00 | |
28204 |
|
6 | 10 | 10 | 164.00 | |
28205 |
|
7 | 10 | 5 | 82.00 | |
28206 |
|
7 | 10 | 10 | 130.00 | |
28207 |
|
7 | 11 | 5 | 115.00 | |
28208 |
|
7 | 11 | 10 | 183.00 | |
28209 |
|
8 | 12 | 5 | 124.00 | |
28210 |
|
8 | 12 | 10 | 196.00 | |
28211 |
|
9 | 13 | 5 | 144.00 | |
28212 |
|
9 | 13 | 10 | 229.00 | |
28213 |
|
9 | 14 | 5 | 163.00 | |
28214 |
|
9 | 14 | 10 | 259.00 | |
28215 |
|
10 | 14 | 5 | 163.00 | |
28216 |
|
10 | 14 | 10 | 259.00 | |
28217 |
|
10 | 16 | 5 | 176.00 | |
28218 |
|
10 | 16 | 10 | 273.00 | |
28219 |
|
12 | 17 | 5 | 191.00 | |
28220 |
|
12 | 17 | 10 | 272.00 |
